Chart C5 - Electronic Spark Control System
Chart C5 - Electronic Spark Control System

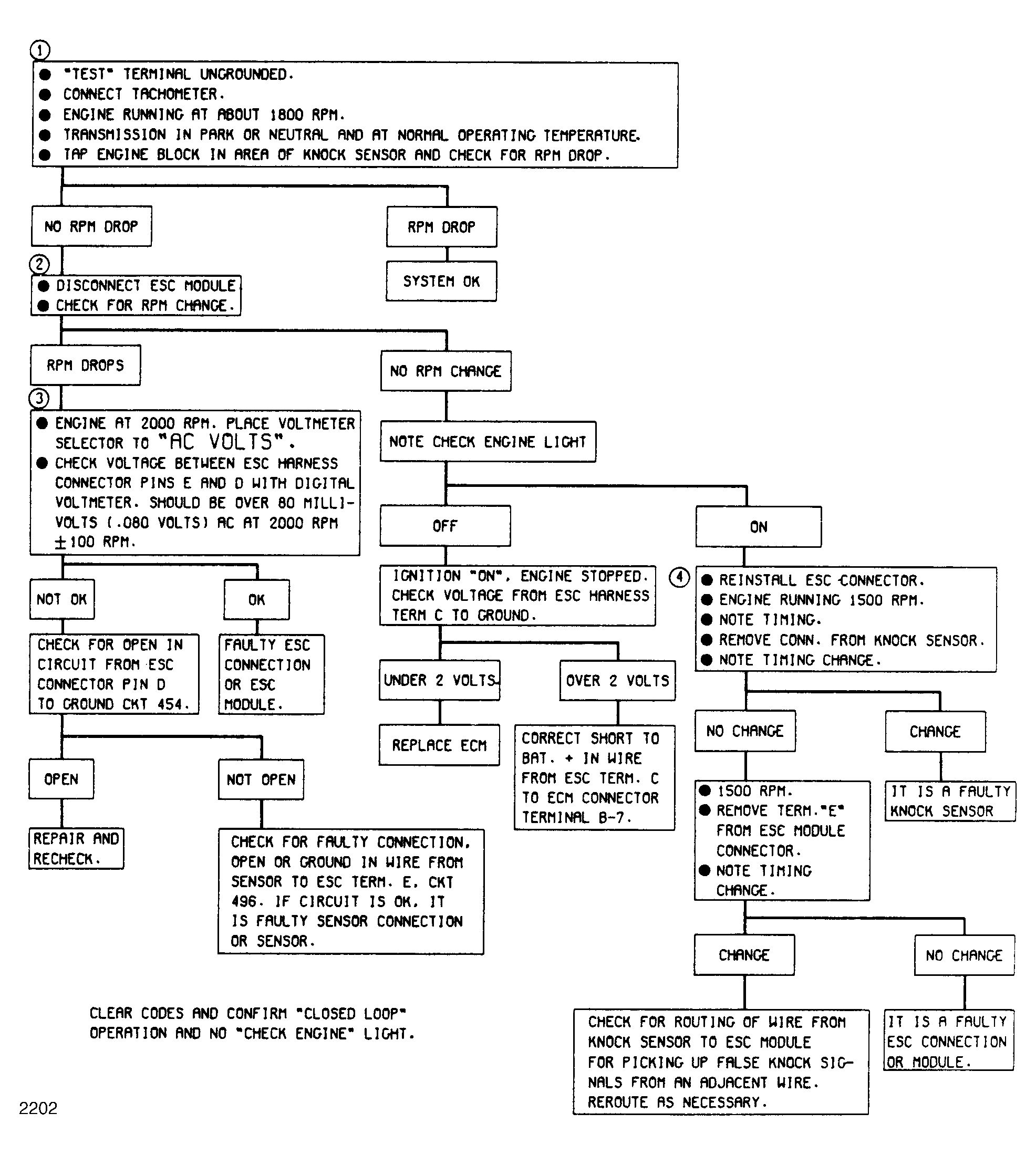

Fig 1: Chart C5 - Electronic Spark Timing Control System
