Code 53, EGR Vacuum Control (3.0L)

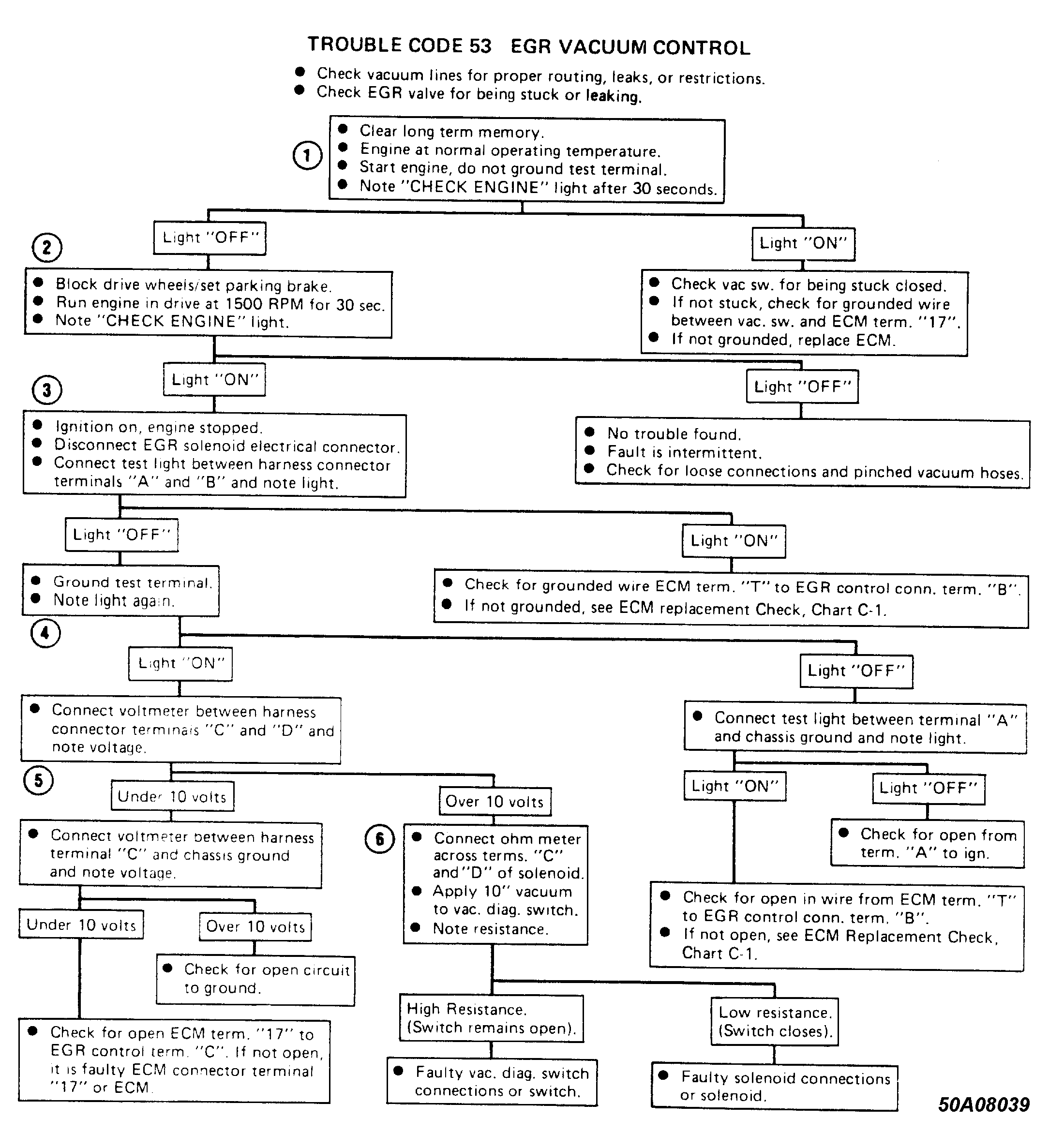

Fig 1: Code 53 Flow Chart, EGR Vacuum Control (3.0L)

G50A08039

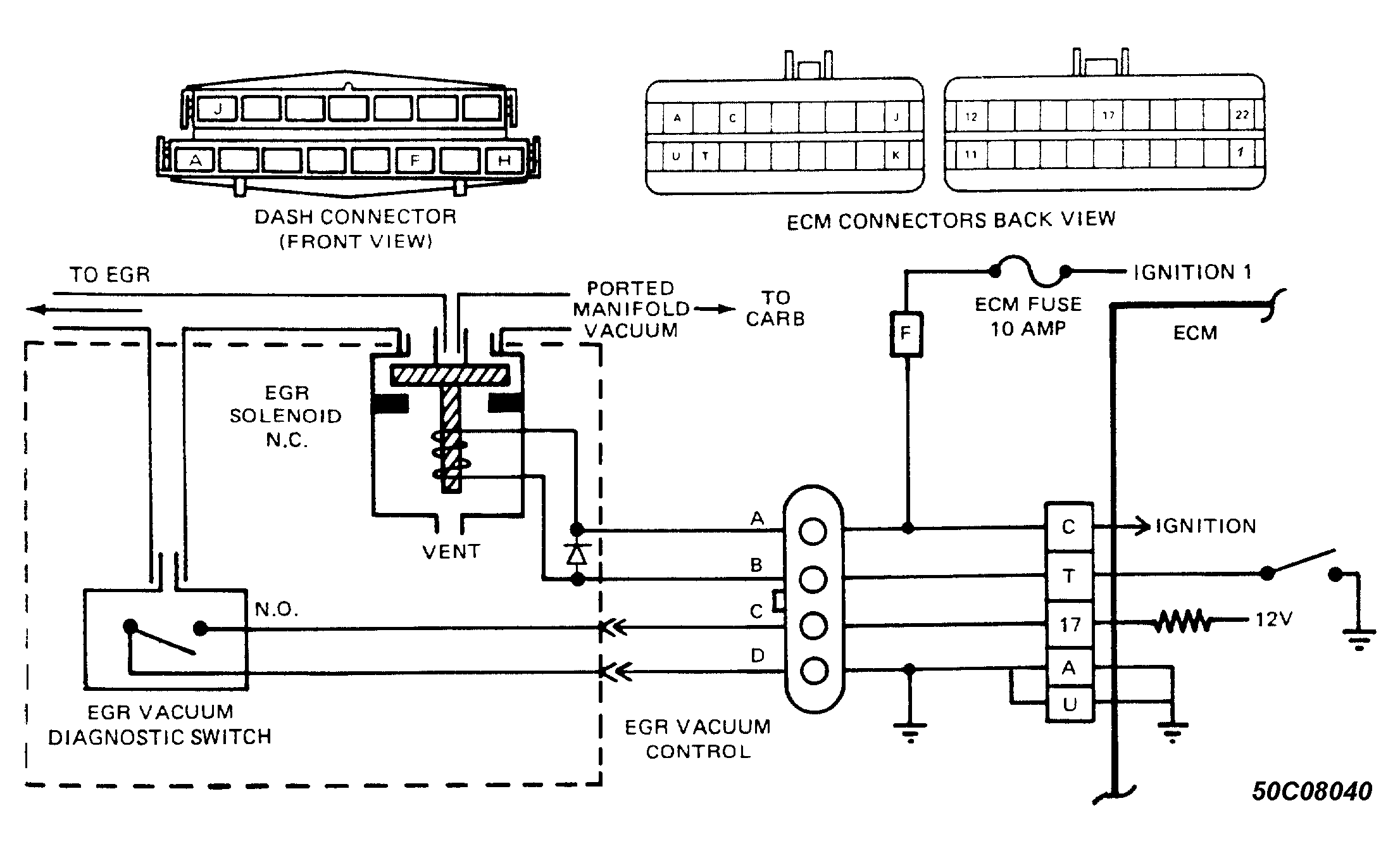

Fig 2: Code 53 Schematic, EGR Vacuum Control (3.0L)

G50C08040
