1.8L/2.5L TBI Tests W/Codes
›
Chart C4B - Ignition System Check
Chart C4B - Ignition System Check

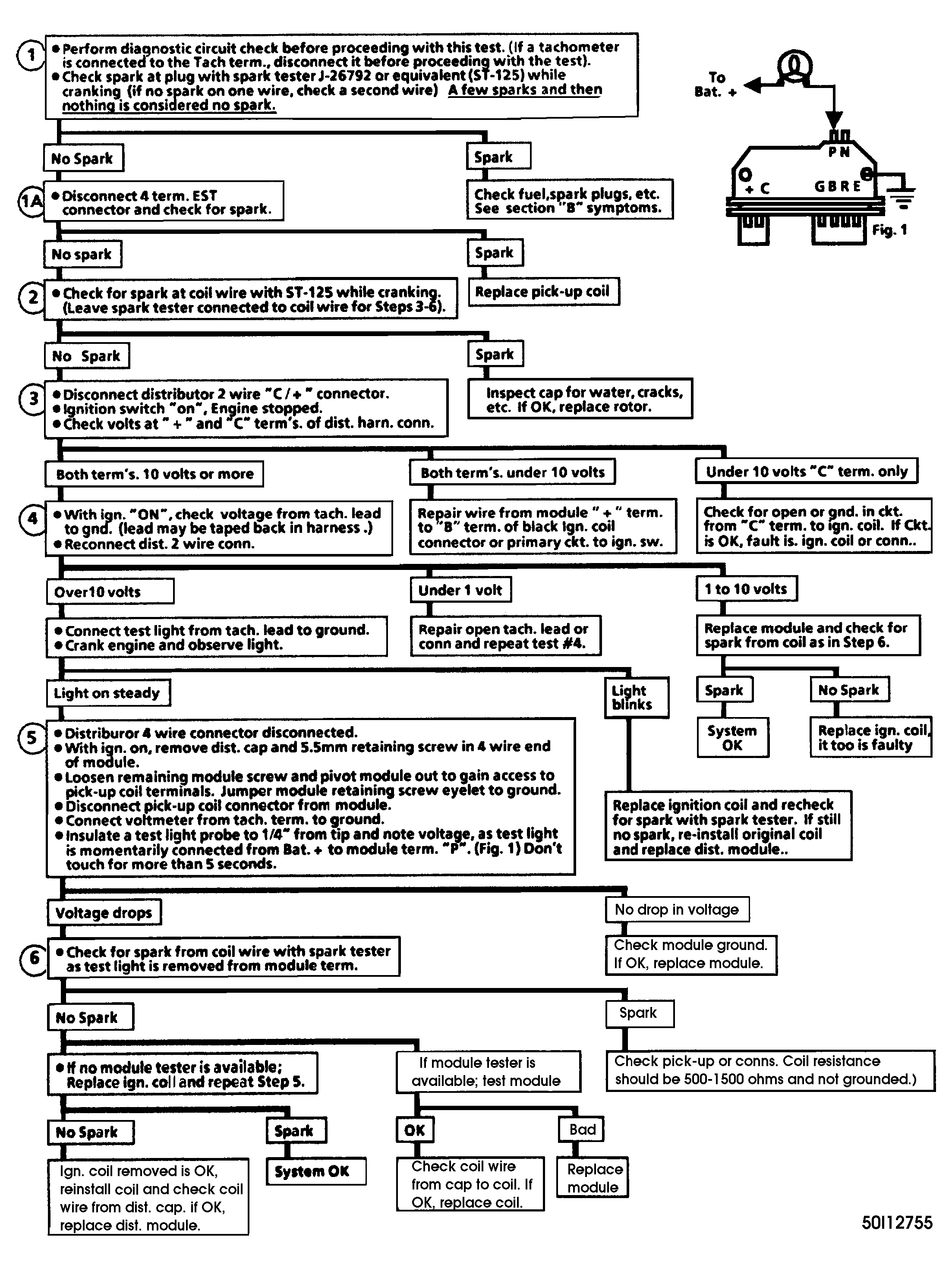

Fig 1: Chart C4B, Ignition System Check
