Chart C2E - Throttle Kicker (ISC) 2.8L

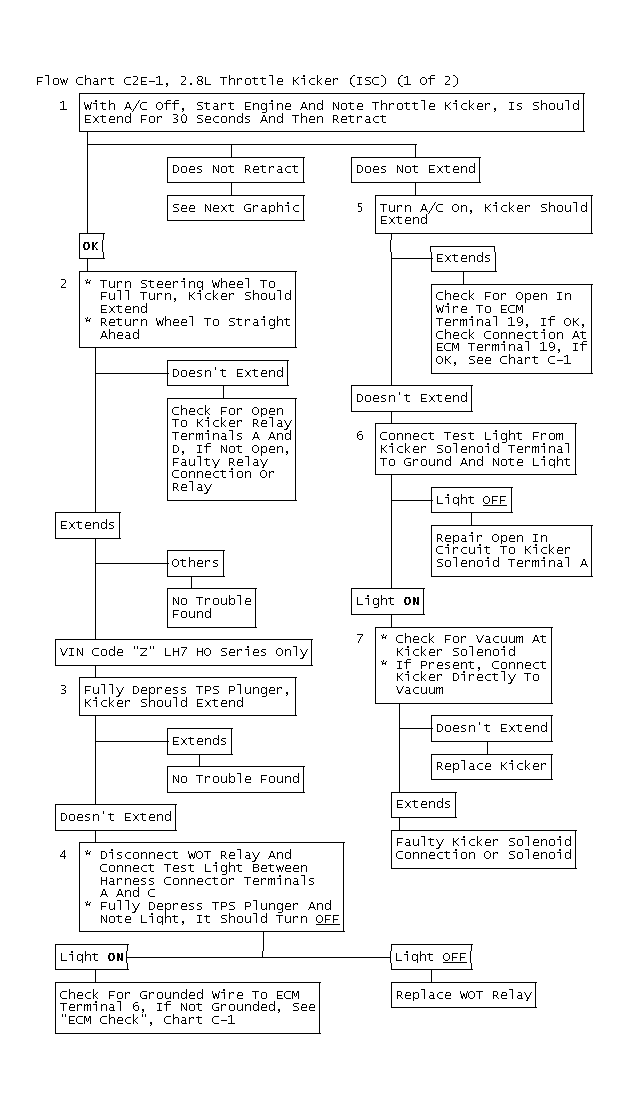

Fig 1: Flow Chart C2E-1, 2.8L Throttle Kicker (ISC) (1 of 2)

• If Air Conditioning (A/C) Is Not Operating, Repair It Before Checking Throttle Kicker
• Make Visual Inspection Of Hoses And Electrical Harness For Condition And Connections

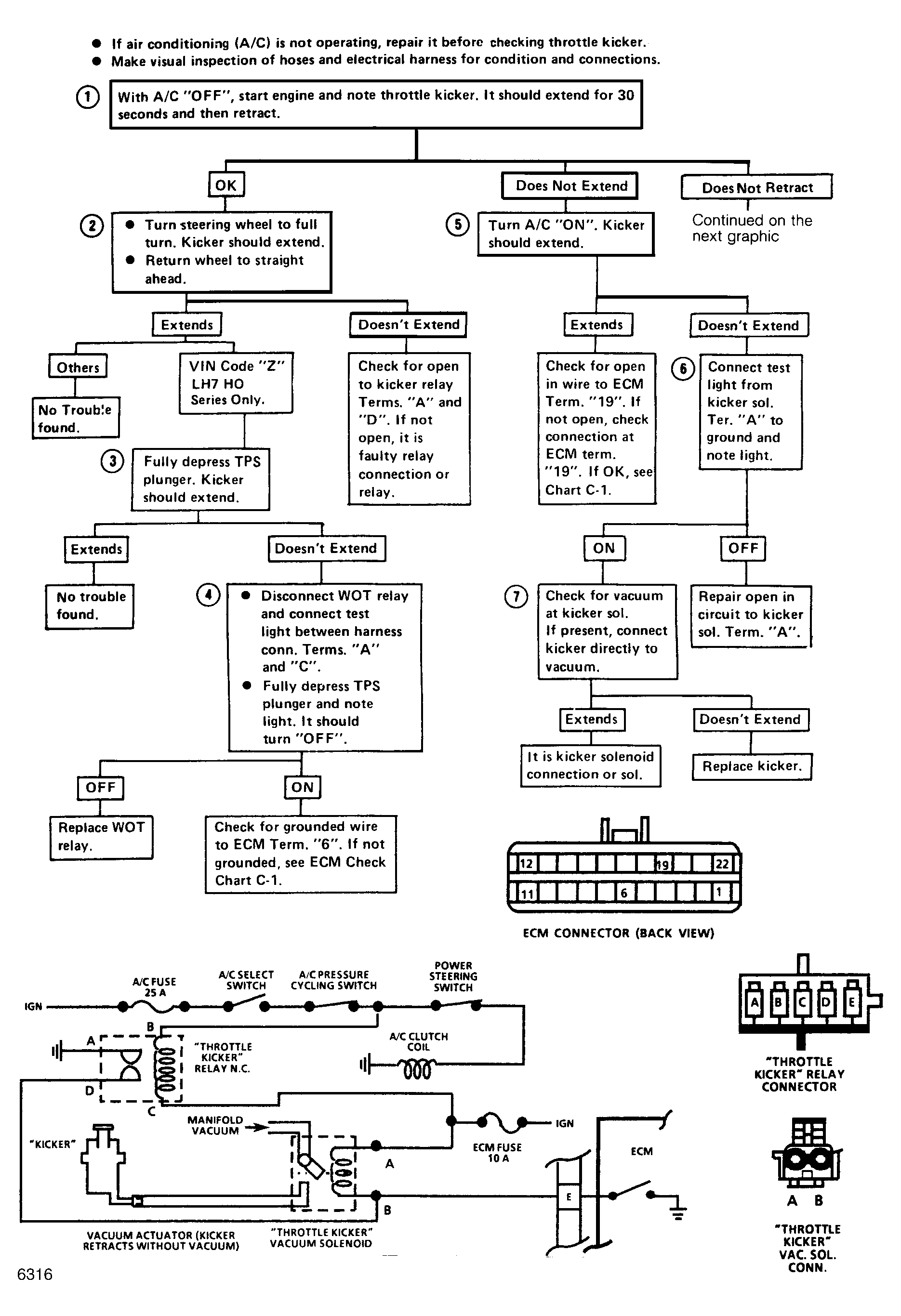

Fig 2: Flow Chart C2E-1, 2.8L Throttle Kicker (ISC) (1 Of 2)

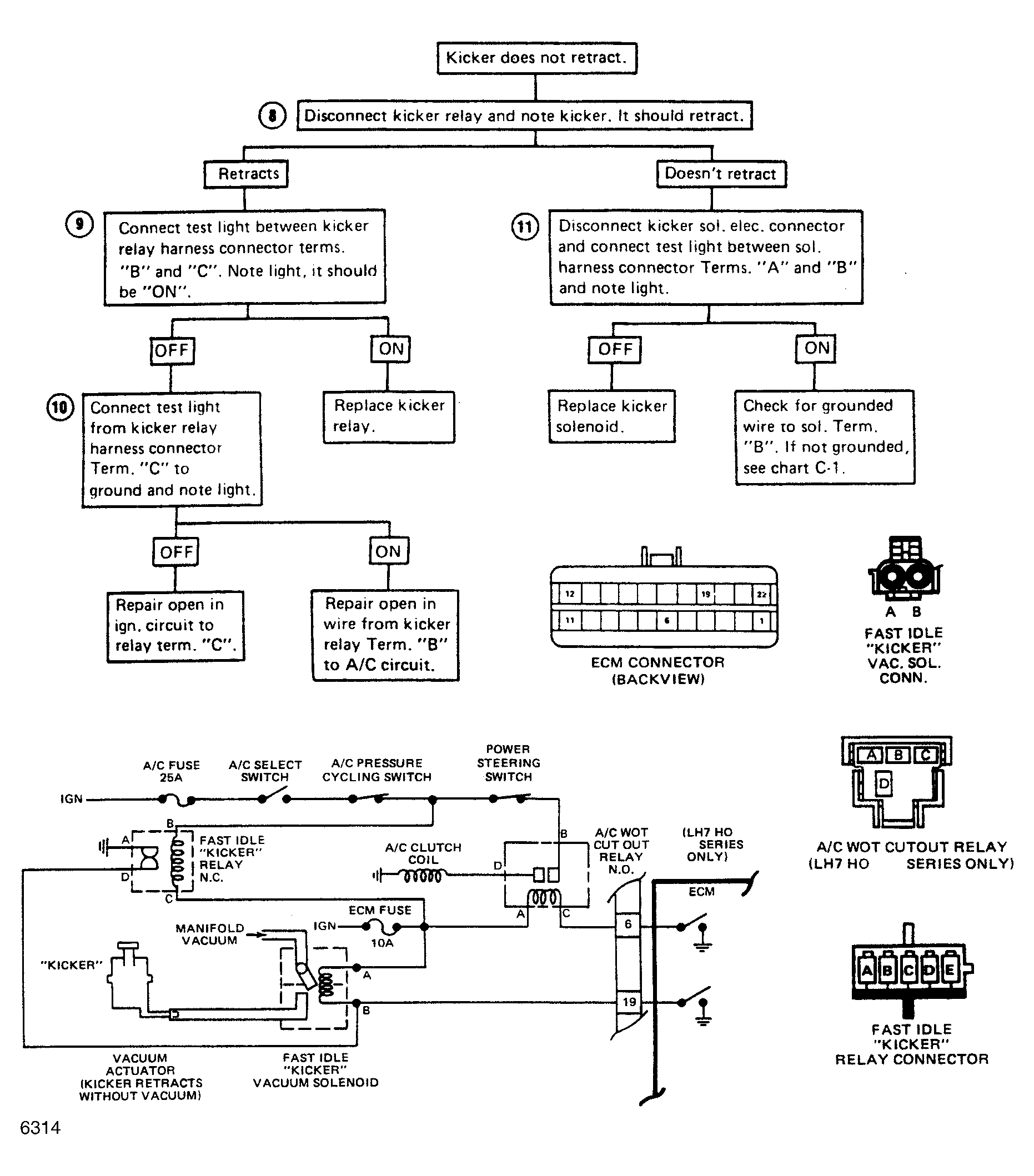

Fig 3: Flow Chart C2E-2, 2.8L Throttle Kicker (ISC) (2 of 2)

Fig 4: Flow Chart C2E-2, 2.8L Throttle Kicker (ISC) (2 of 2)
