Chart 10, A/C System Performance Test (Riviera)

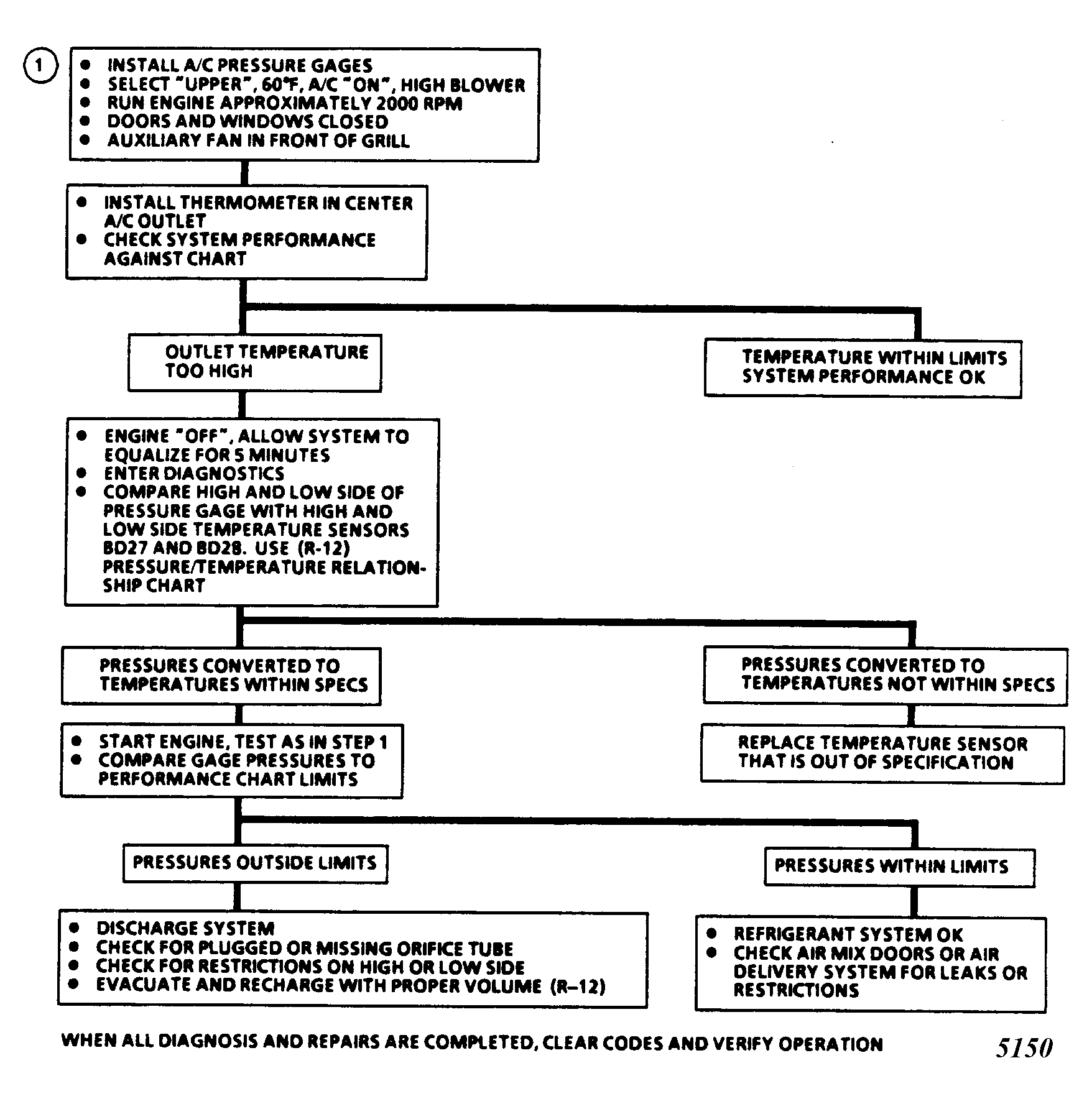

Fig 1: Chart 10, A/C System Performance Test
G5150

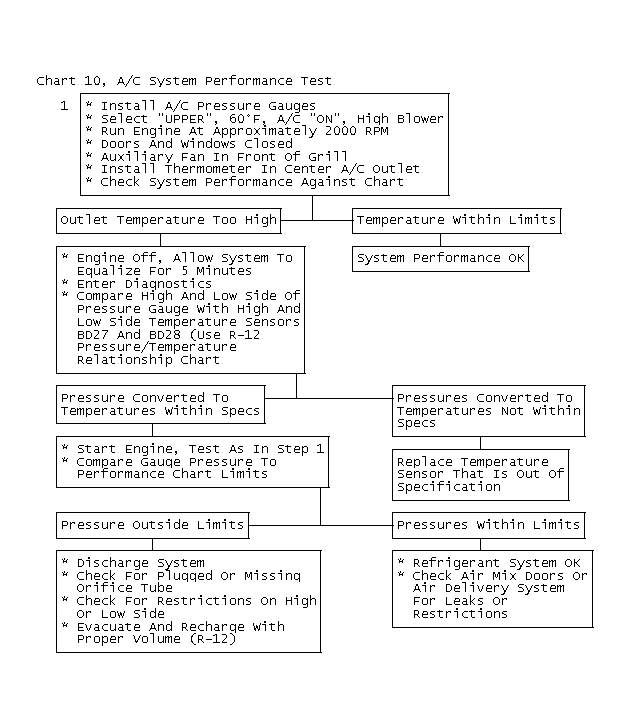

Fig 2: Chart 10, A/C System Performance Test
GB0048416
