Chart 10, A/C System Performance Test (TORONADO)

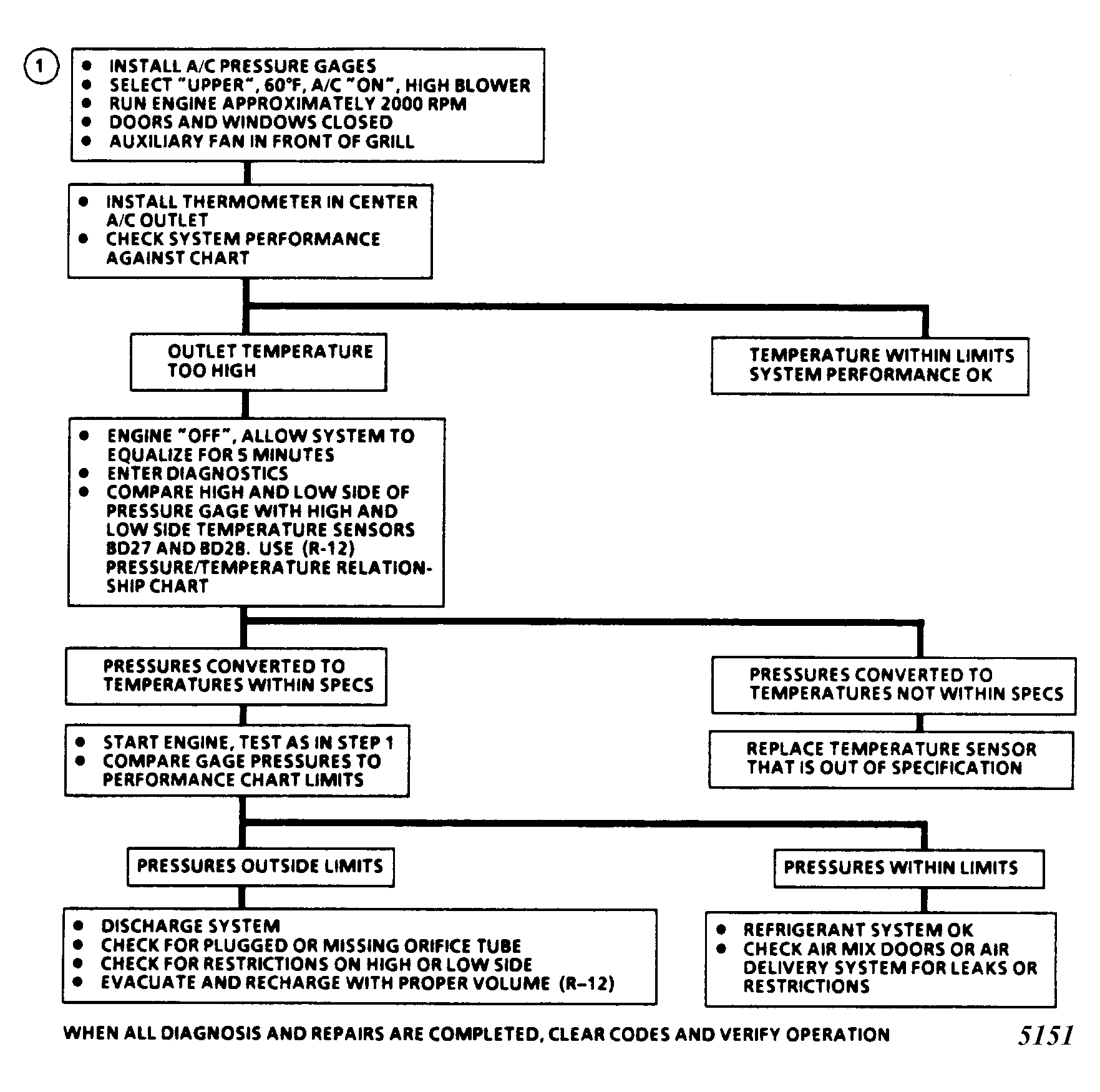

Fig 1: Chart 10, A/C System Performance Test (Toronado)

G5151

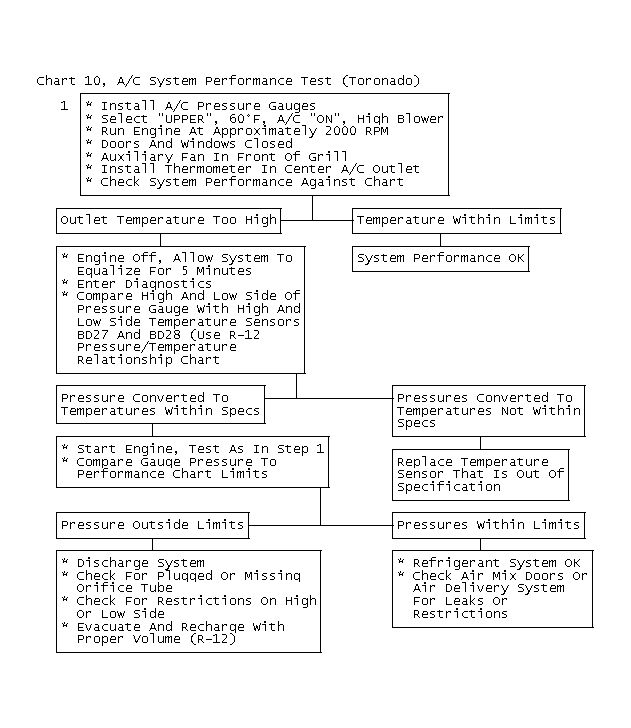

Fig 2: Chart 10, A/C System Performance Test (Toronado)

GB0048417
