Climate Control System Check (TORONADO)

Fig 1: Climate Control System Check (Toronado)
G5130

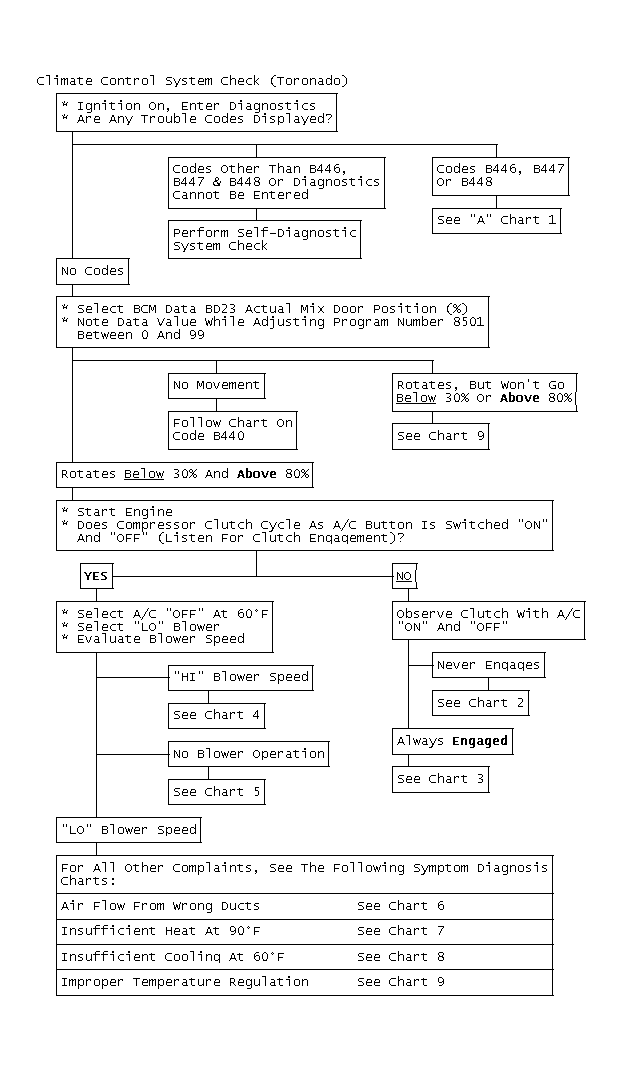

Fig 2: Climate Control System Check (Toronado)
GB0048394
