Oldsmobile
›
1987
›
Custom Cruiser
›
Repair and Diagnosis
›
Engine Performance
›
System
›
5.0L Feedback Carburetor Tests W/Codes
›
Wiring Diagrams
›
1986 Models
1986 Models

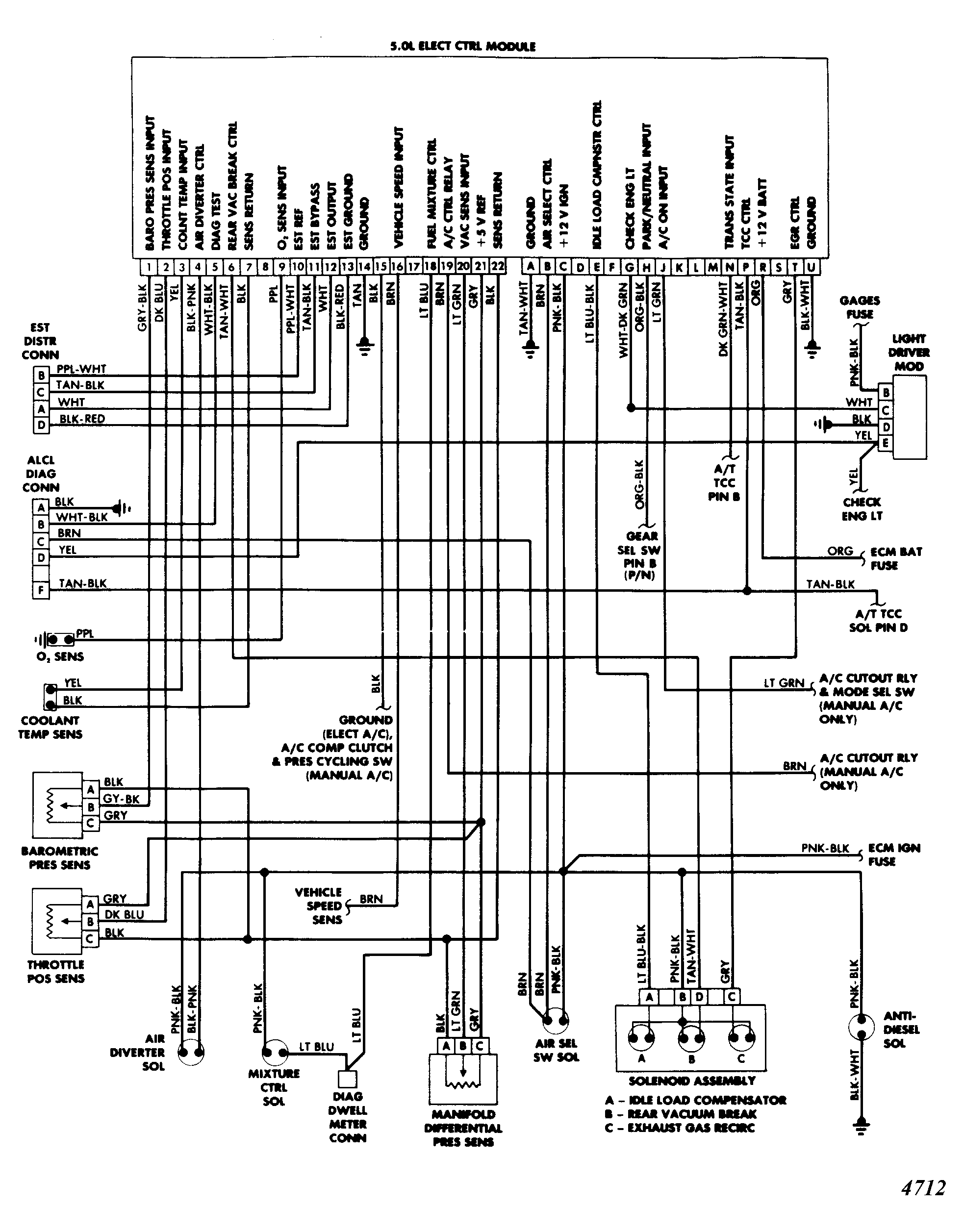

Fig 1: Full Function Wiring Diagram (1986 5.0L, VIN Y & 9)

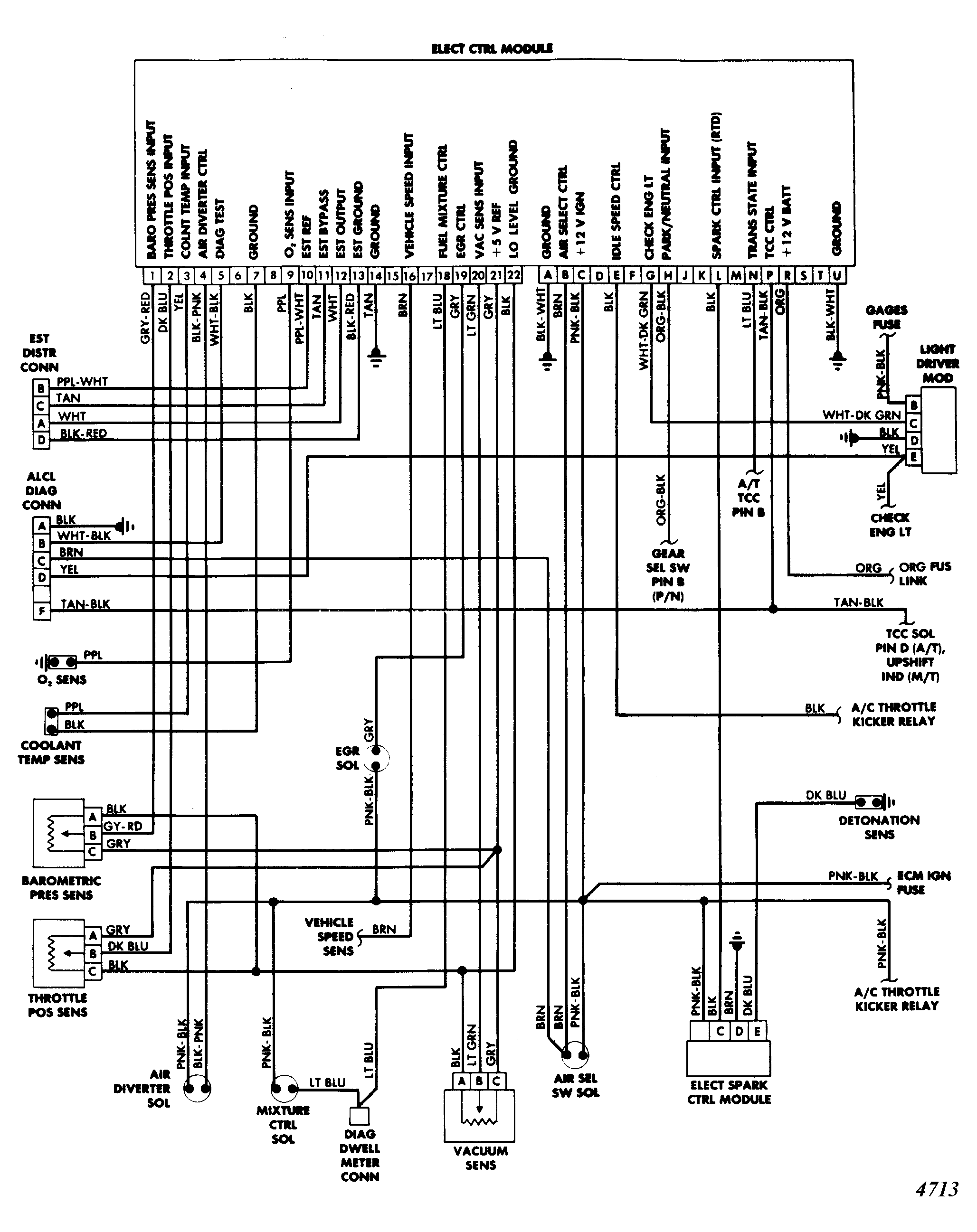

Fig 2: Full Function Wiring Diagram (1986 5.0L, VIN G & H)
