1987 Models

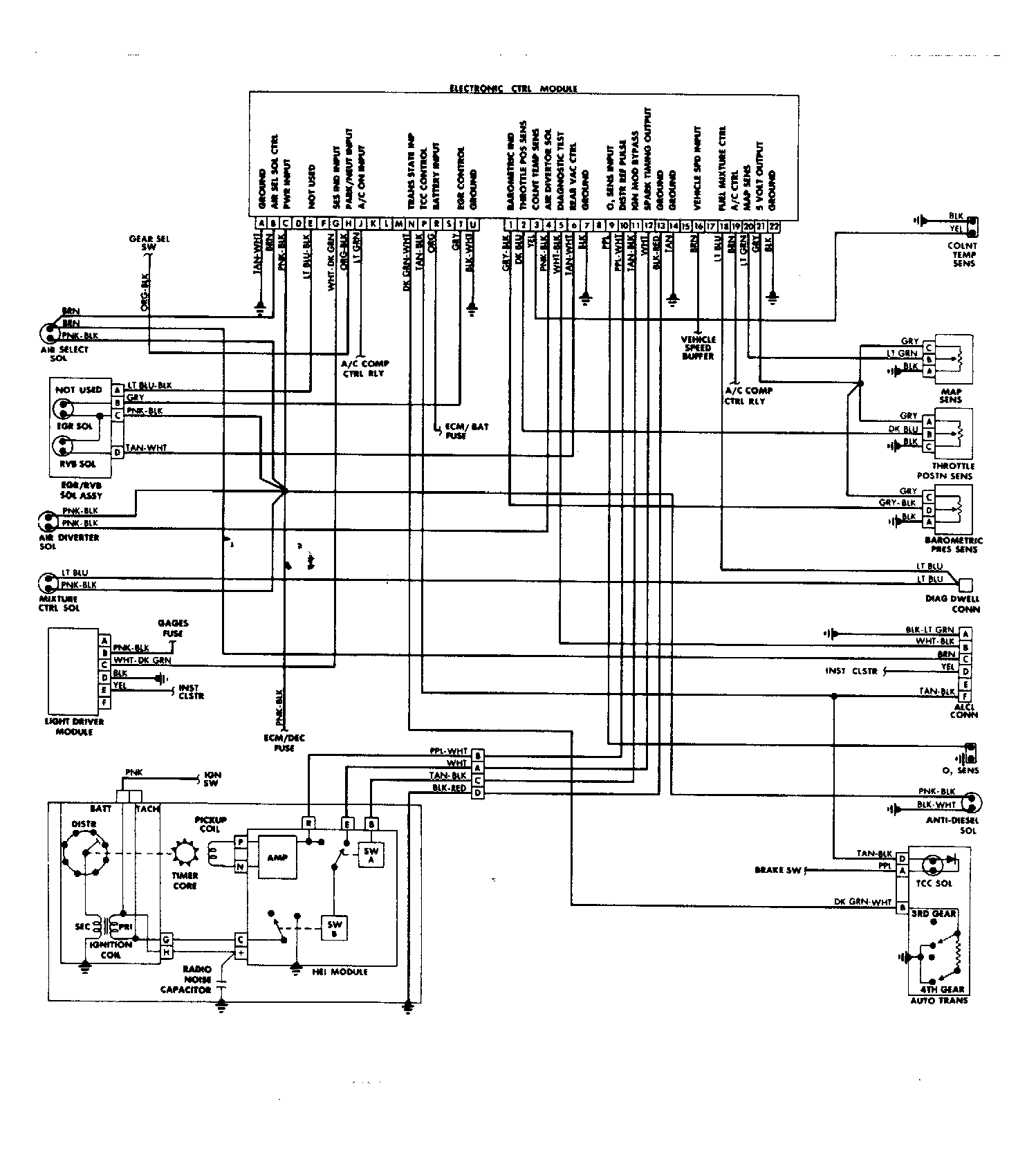

Fig 1: Full Function Wiring Diagram (1987 5.0L, VIN 9, "G" Body)

G7007

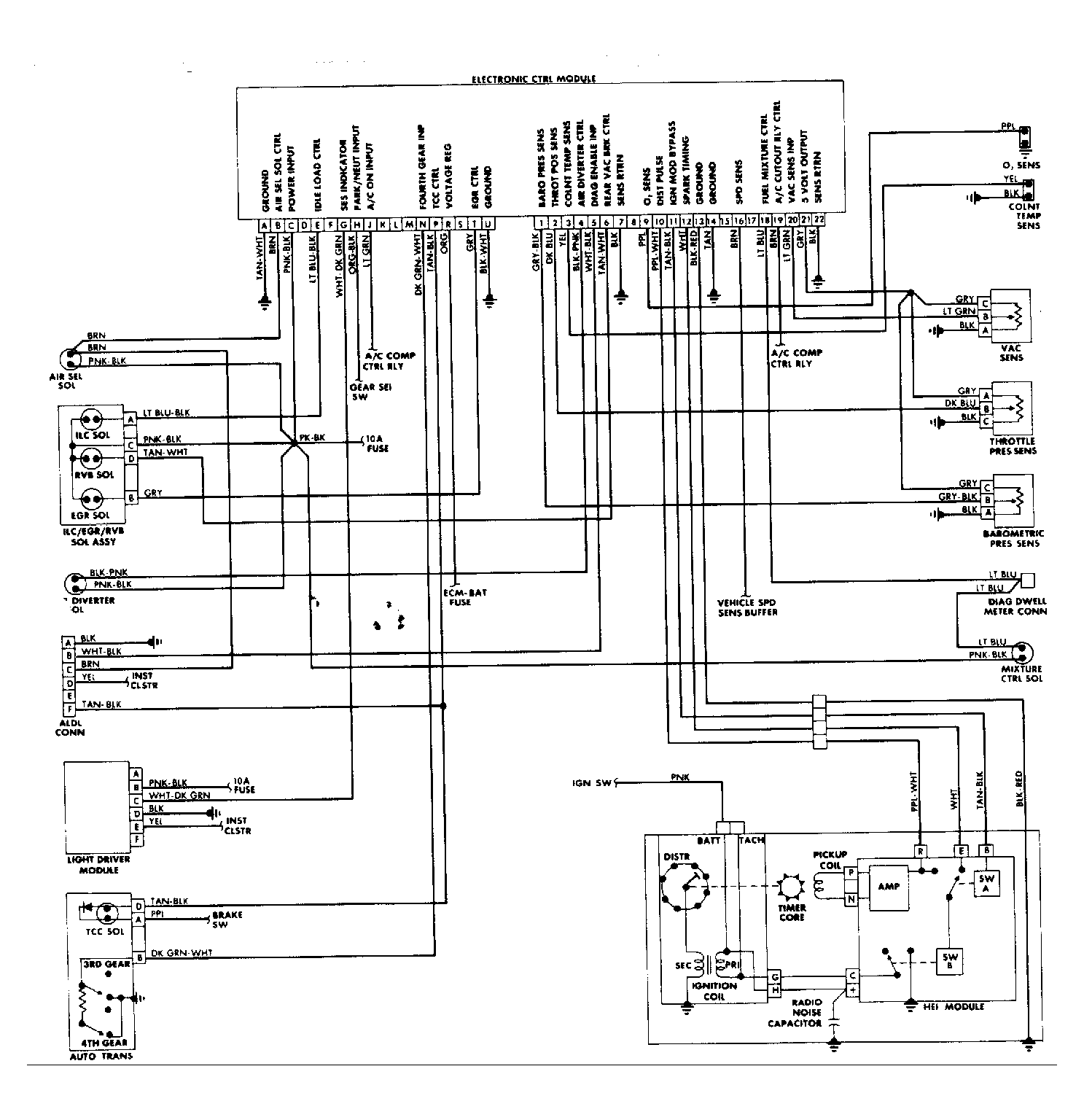

Fig 2: Full Function Wiring Diagram (1987 5.0L, VIN Y)

G7008

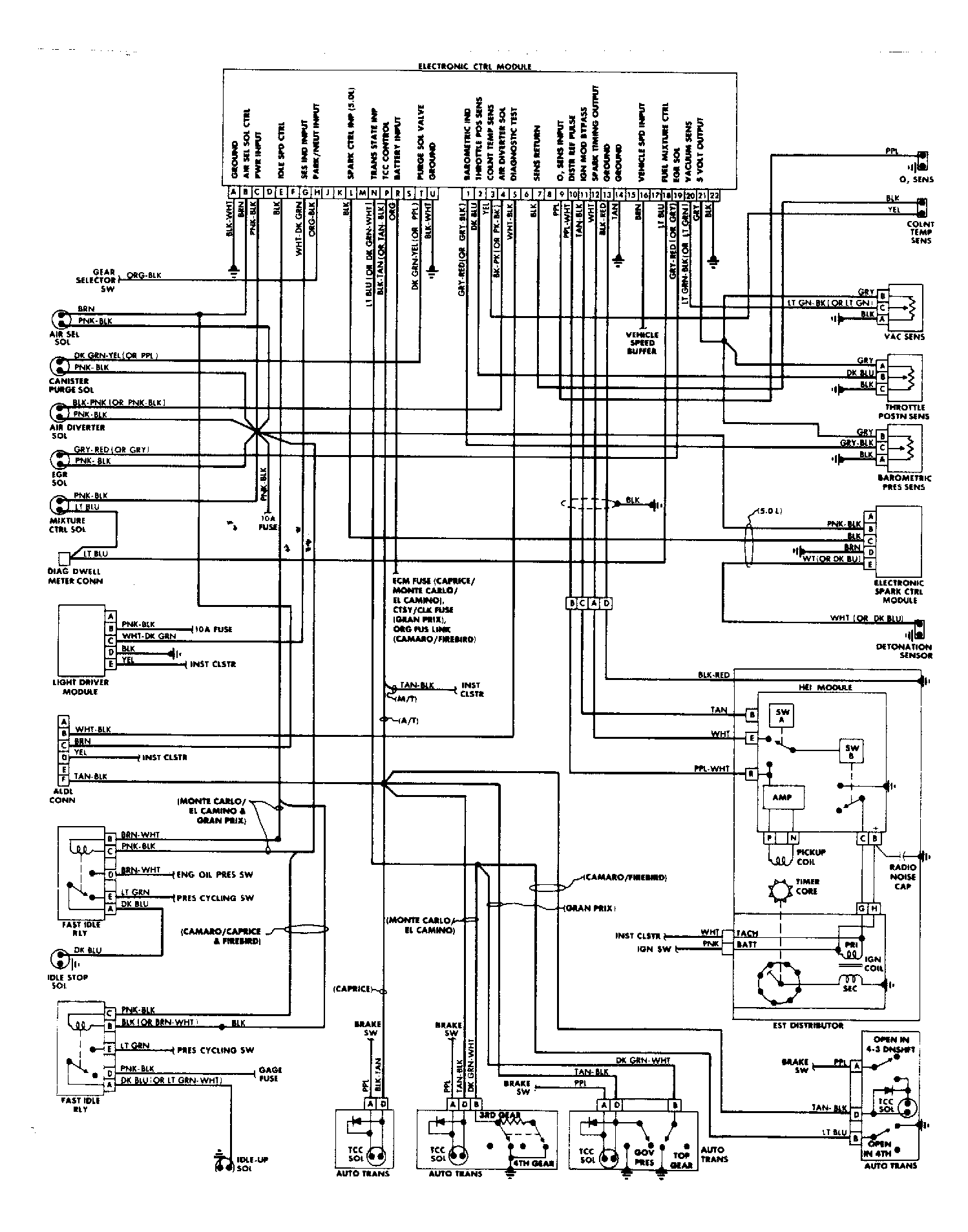

Fig 3: Full Function Wiring Diagram (1987 5.0L, VIN G & H)

G7009
