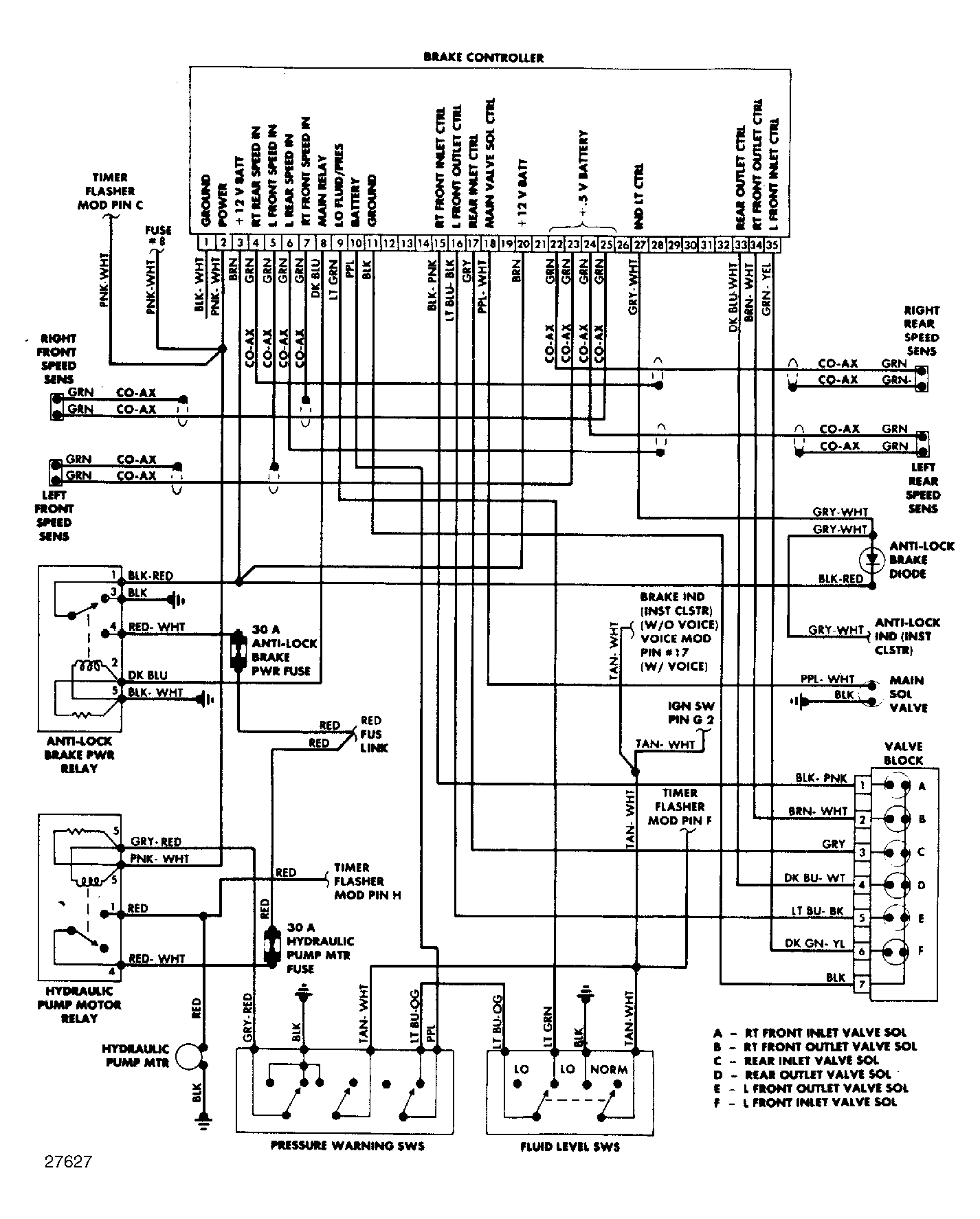

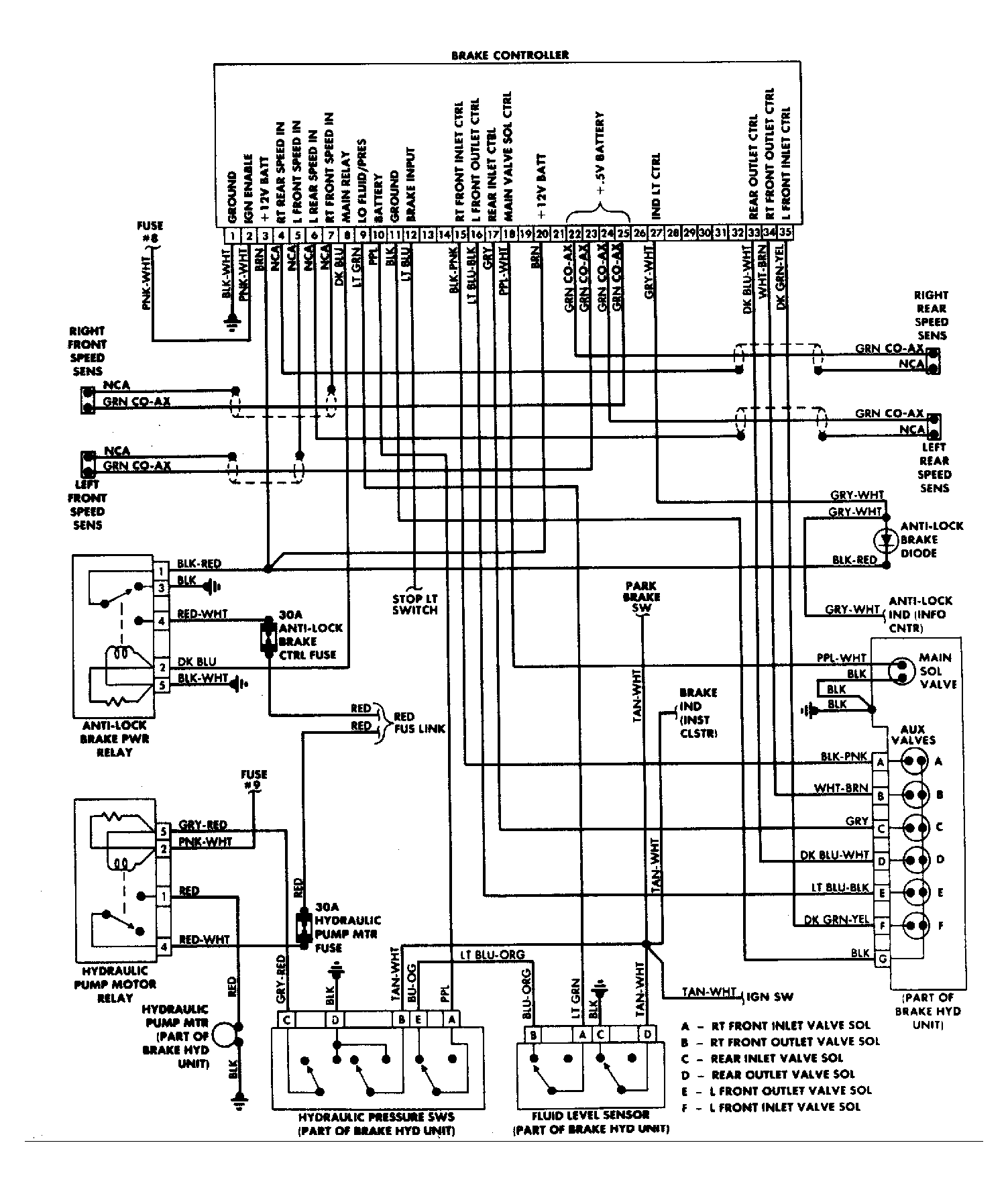

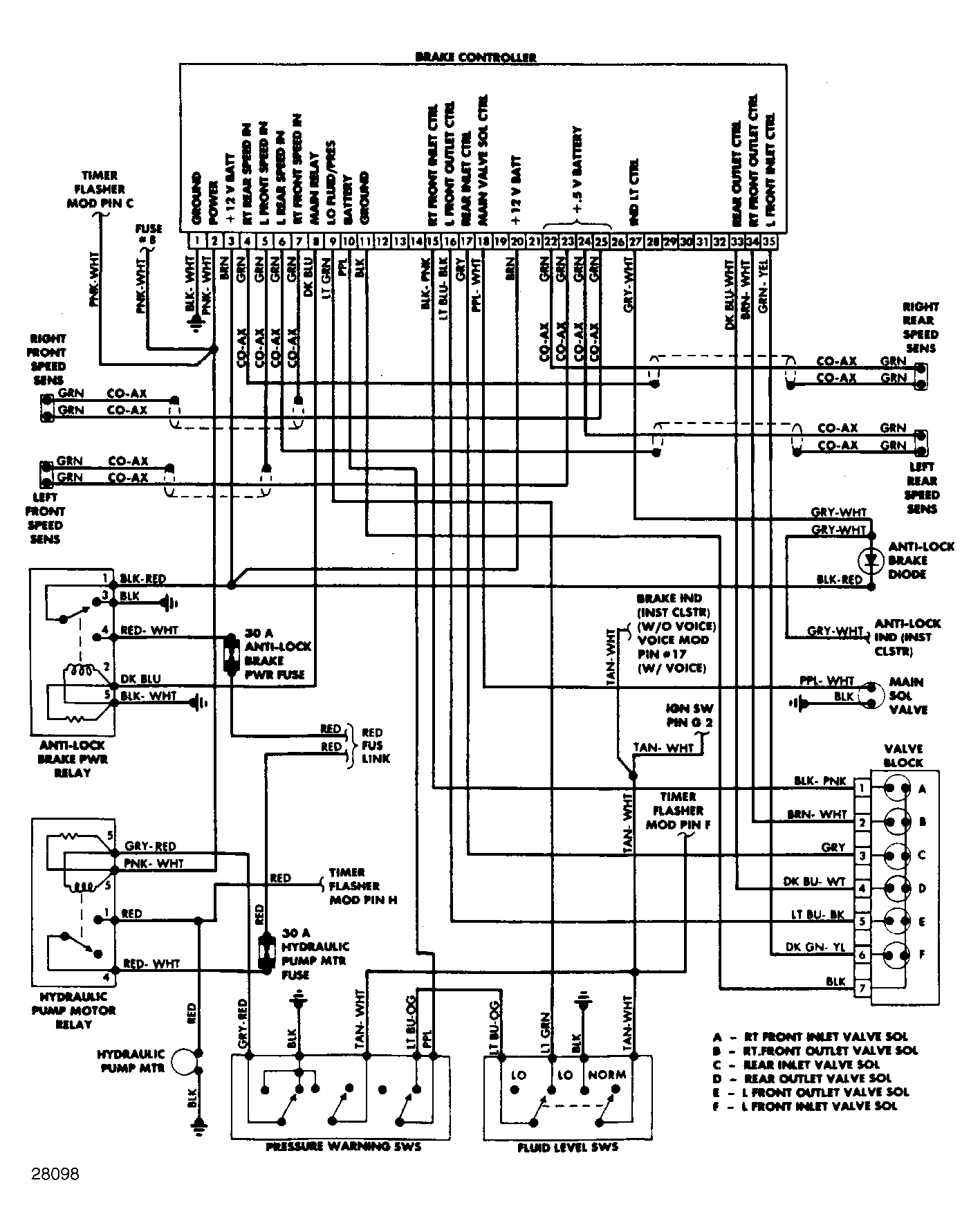

Wiring Diagrams

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1988 Oldsmobile Ninety-Eight, 1988 Oldsmobile Delta 88, 1987 Oldsmobile Ninety-Eight, 1987 Oldsmobile Delta 88, and 1986 Oldsmobile Ninety-Eight. However, it is still accessible from the selected car via links, so may be relevant.
