Flow Charts C1 To C-4: Wheel Sensor Output

WARNING: This page is about a different car, the 1988 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Chart C-1 RR Wheel Sensor Output

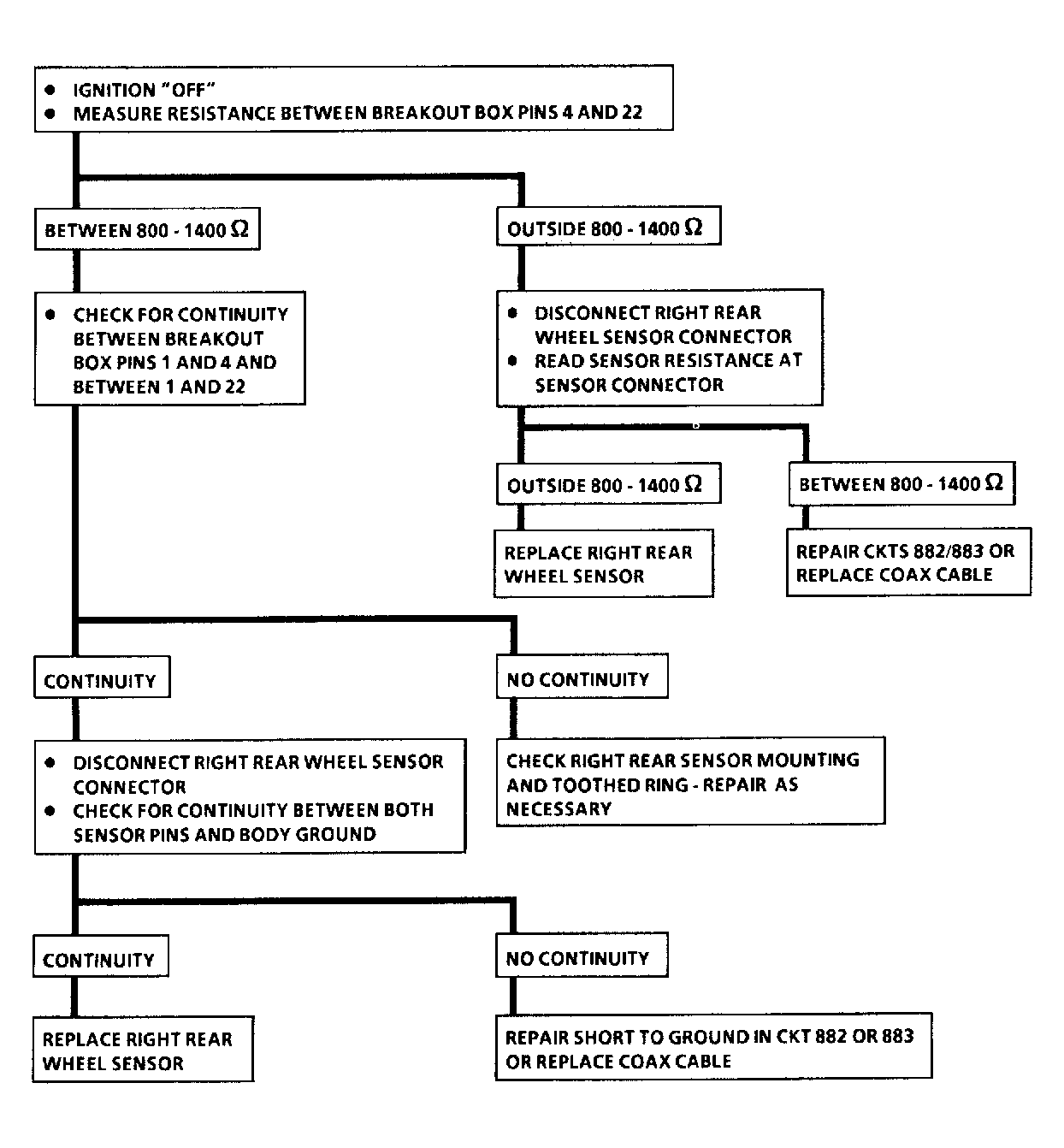

Fig 2: Chart C-2 LF Wheel Sensor Output

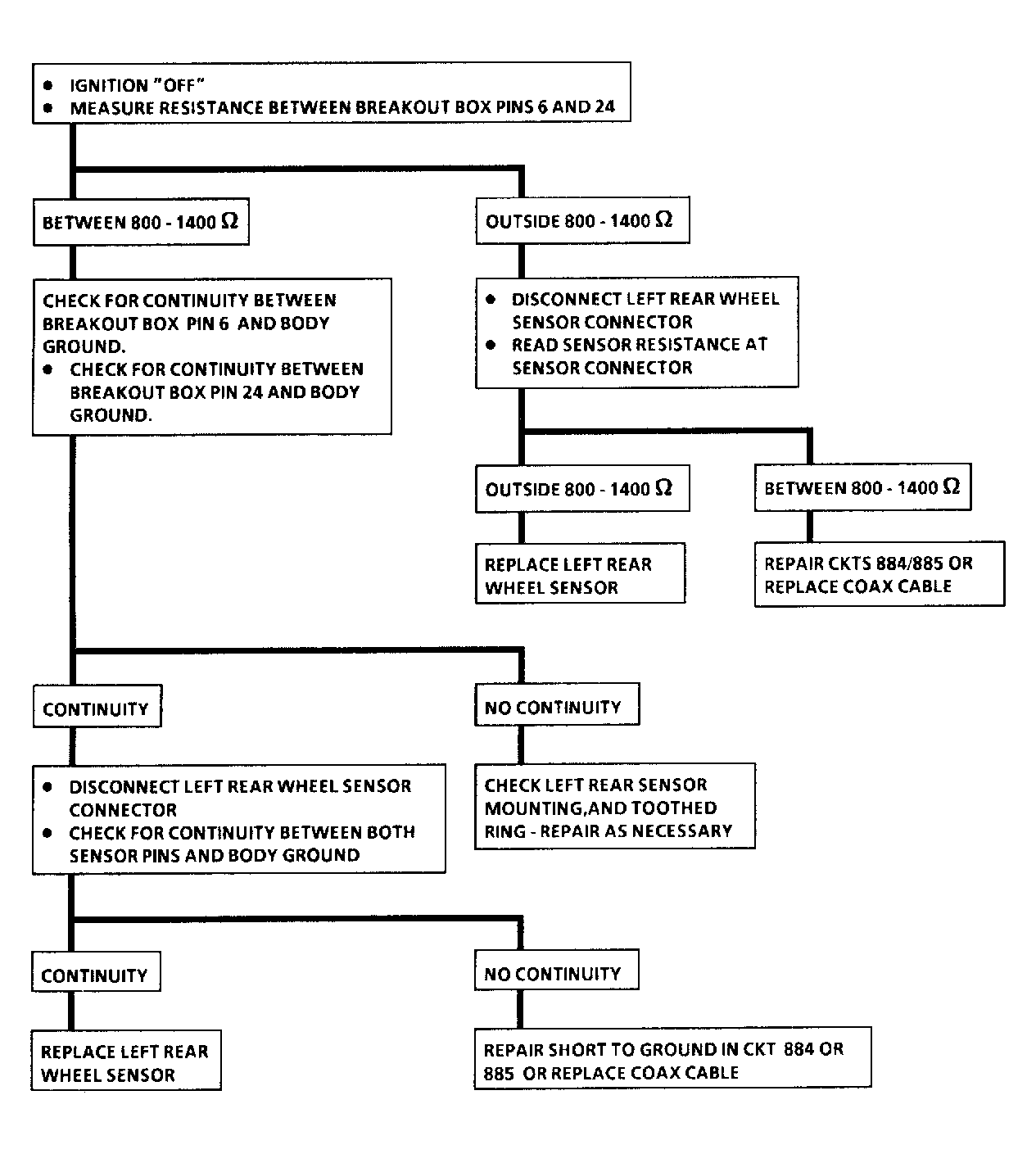

Fig 3: Chart C-3 LR Wheel Sensor Output

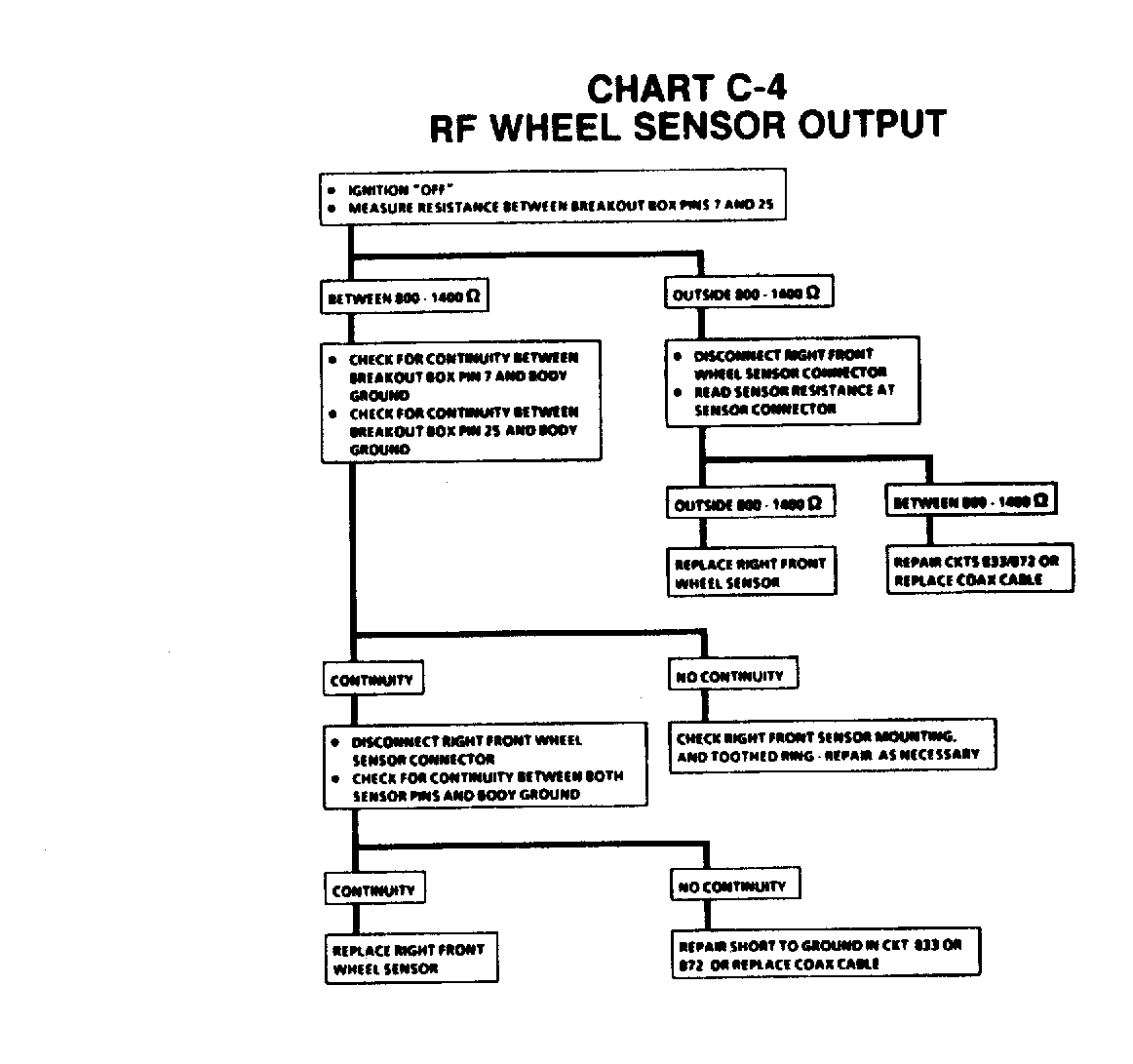

Fig 4: Chart C-4 RF Wheel Sensor Output
