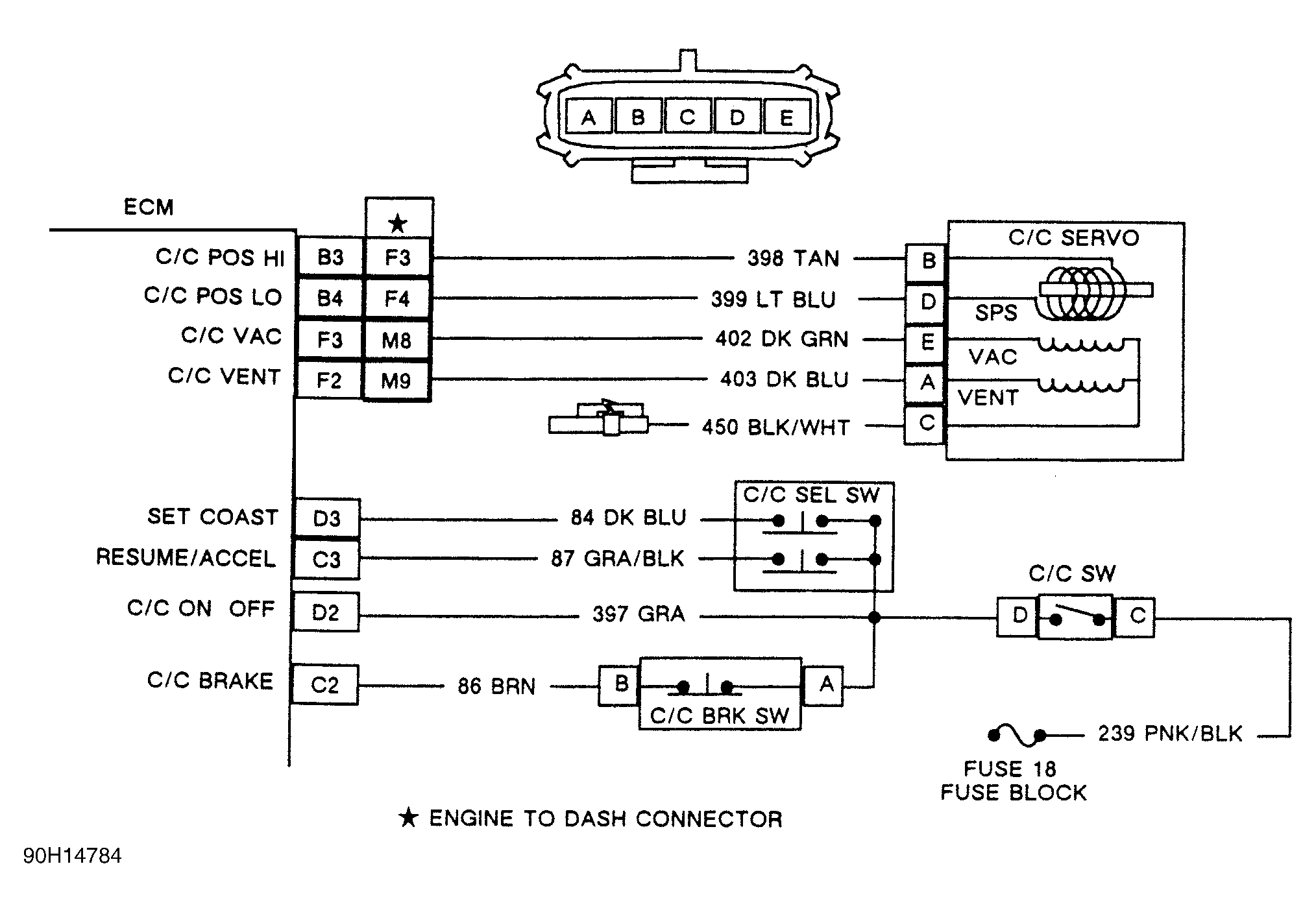

Manipulate ECM, 56-pin engine-to-dash and servo connectors plus affected wiring and note display for rapid change in servo position.
