Engine Controls - Basic Testing - 2.5L/151"" TBI In-Line 4 VIN [U]
›
Computerized Engine Control System
›
ECM/Pcm Wiring Diagram(S)
ECM/Pcm Wiring Diagram(S)

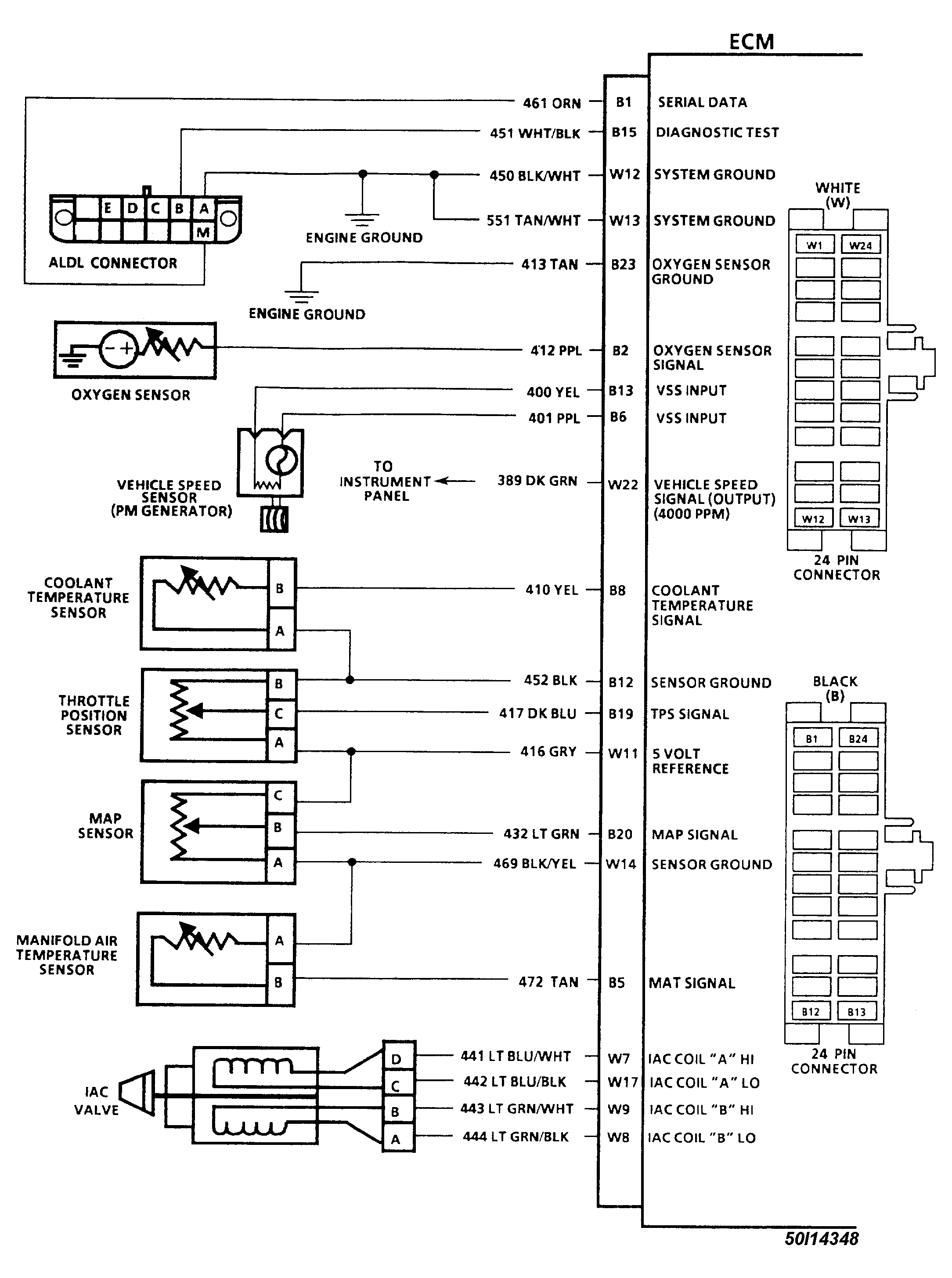

Fig 1: ECM Wiring Diagram 1/3 (2.5L VIN U)
Courtesy of GENERAL MOTORS CORP.

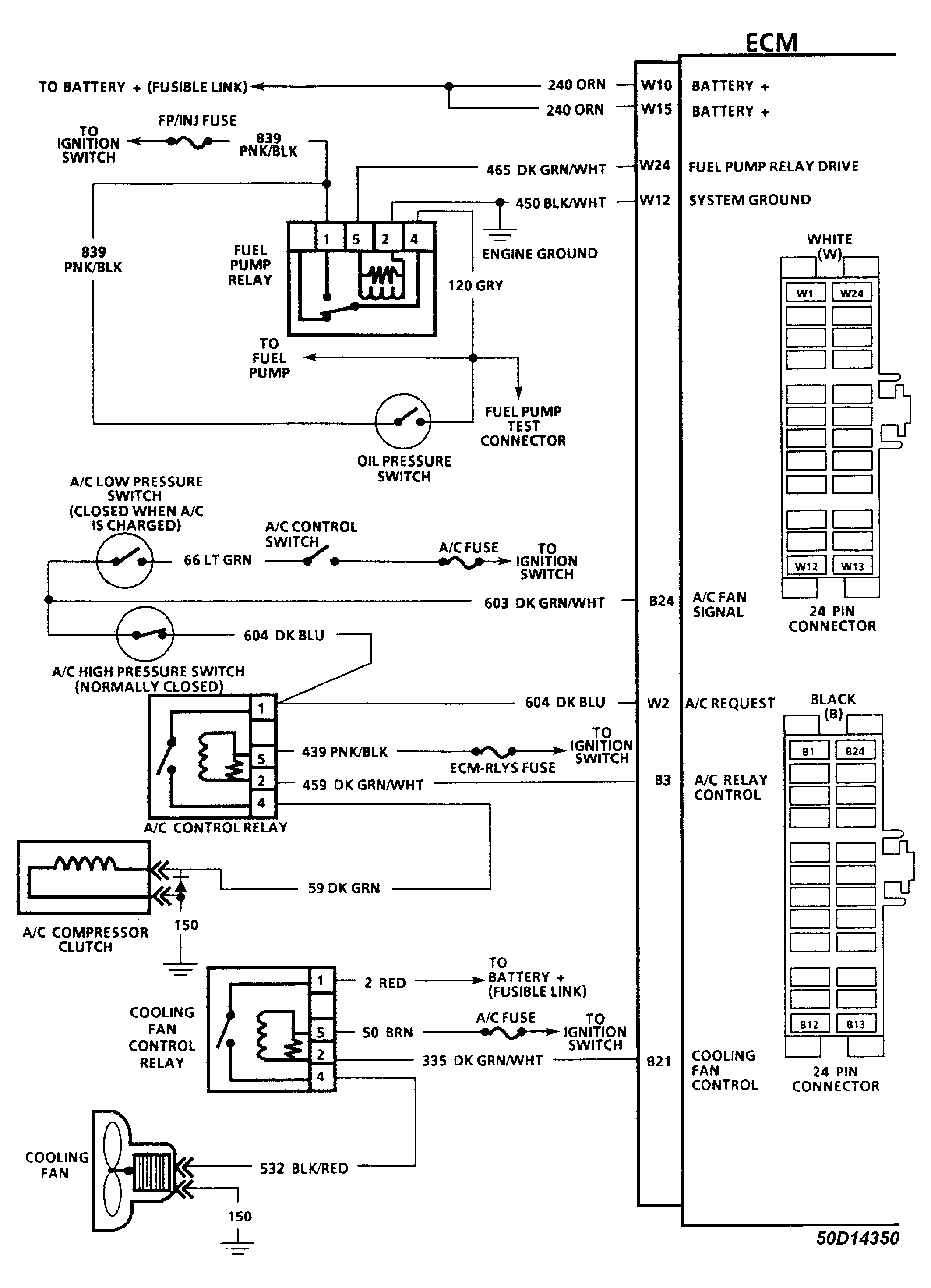

Fig 2: ECM Wiring Diagram 2/3 (2.5L VIN U)
Courtesy of GENERAL MOTORS CORP.

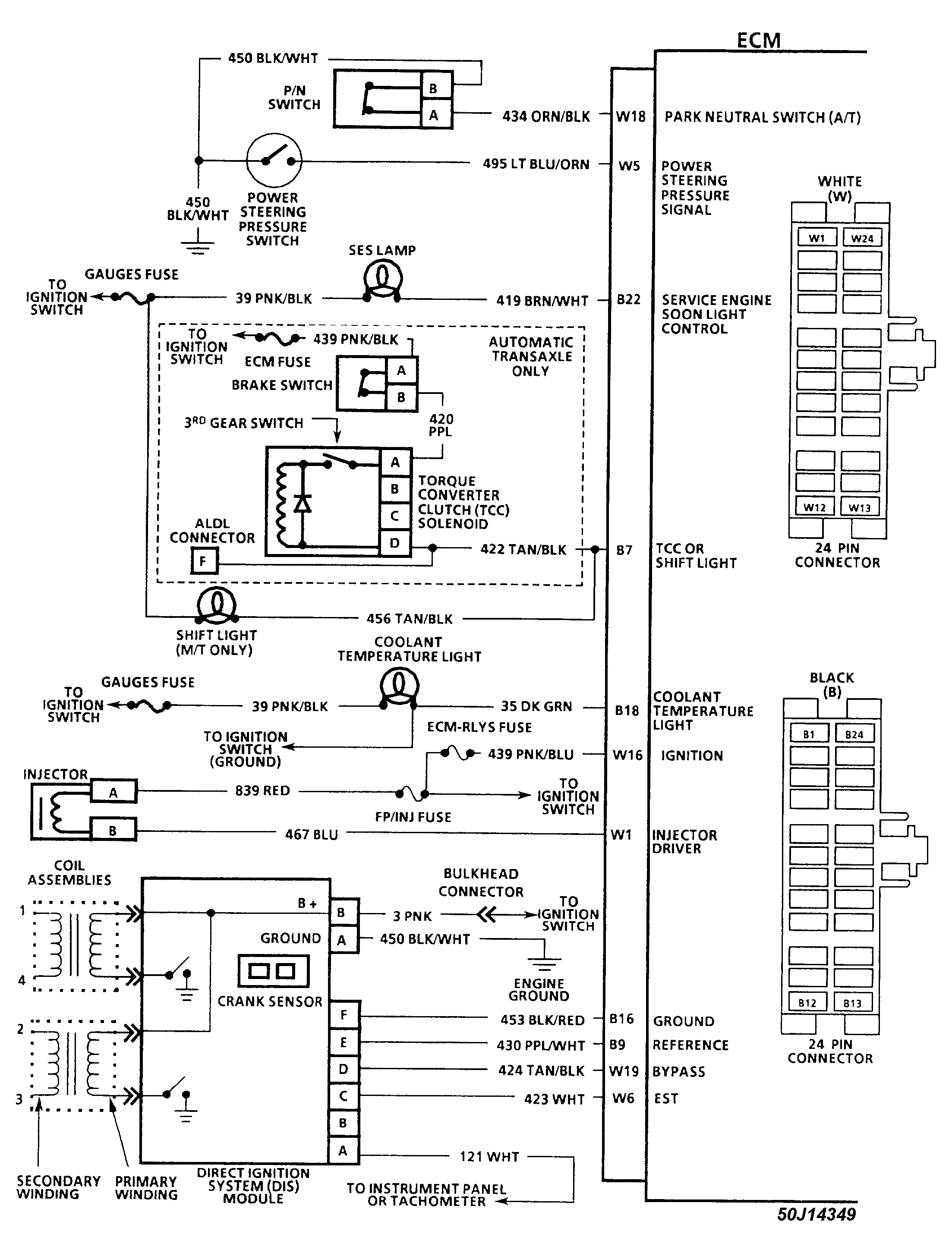

Fig 3: ECM Wiring Diagram 3/3 (2.5L VIN U)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
