Serial Data Circuit Multiple Intermittent Data Codes

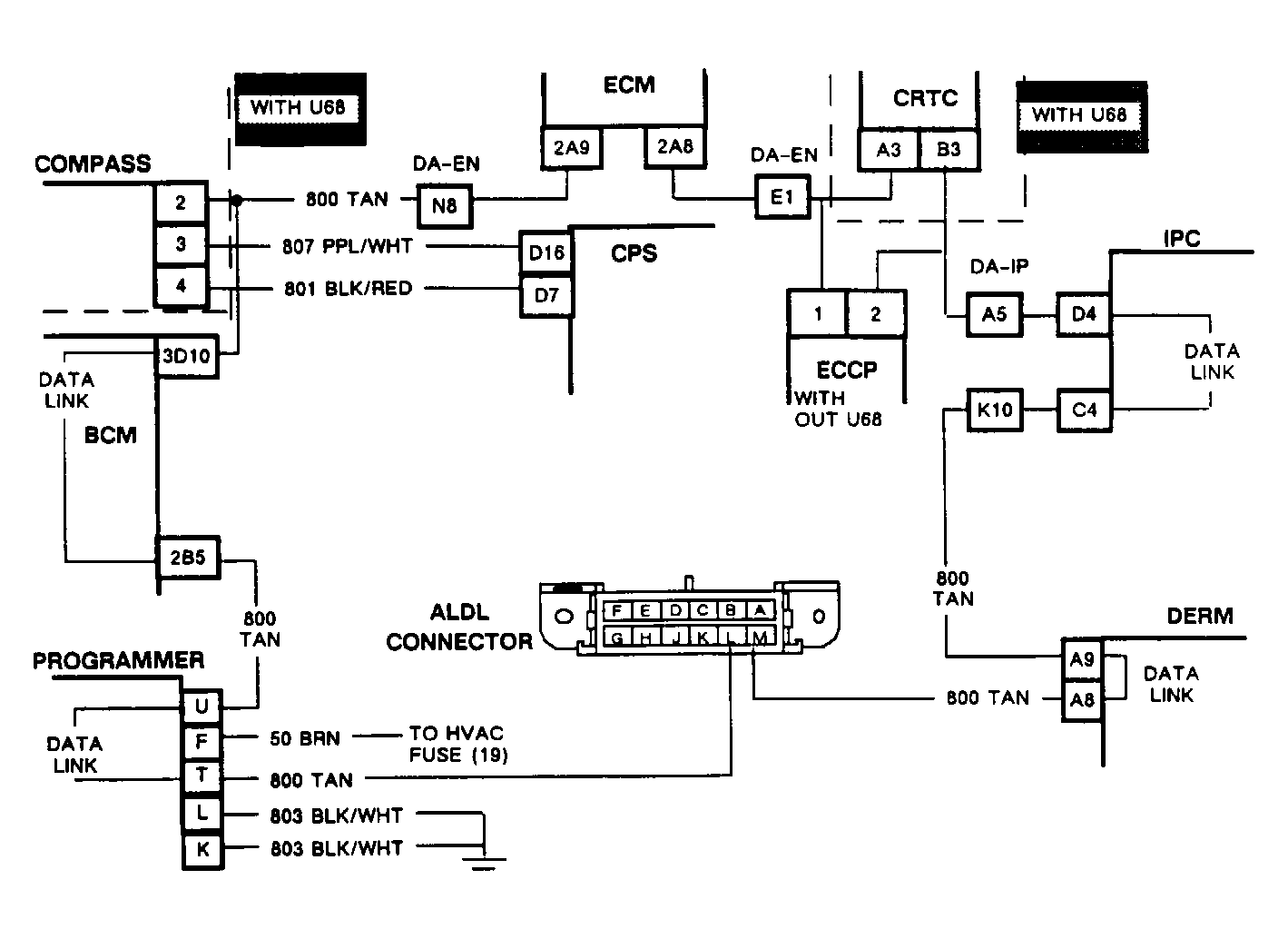

Fig 1: Circuit Diagram Serial Data Circuit Multiple Intermittent Data Codes

G90H17290

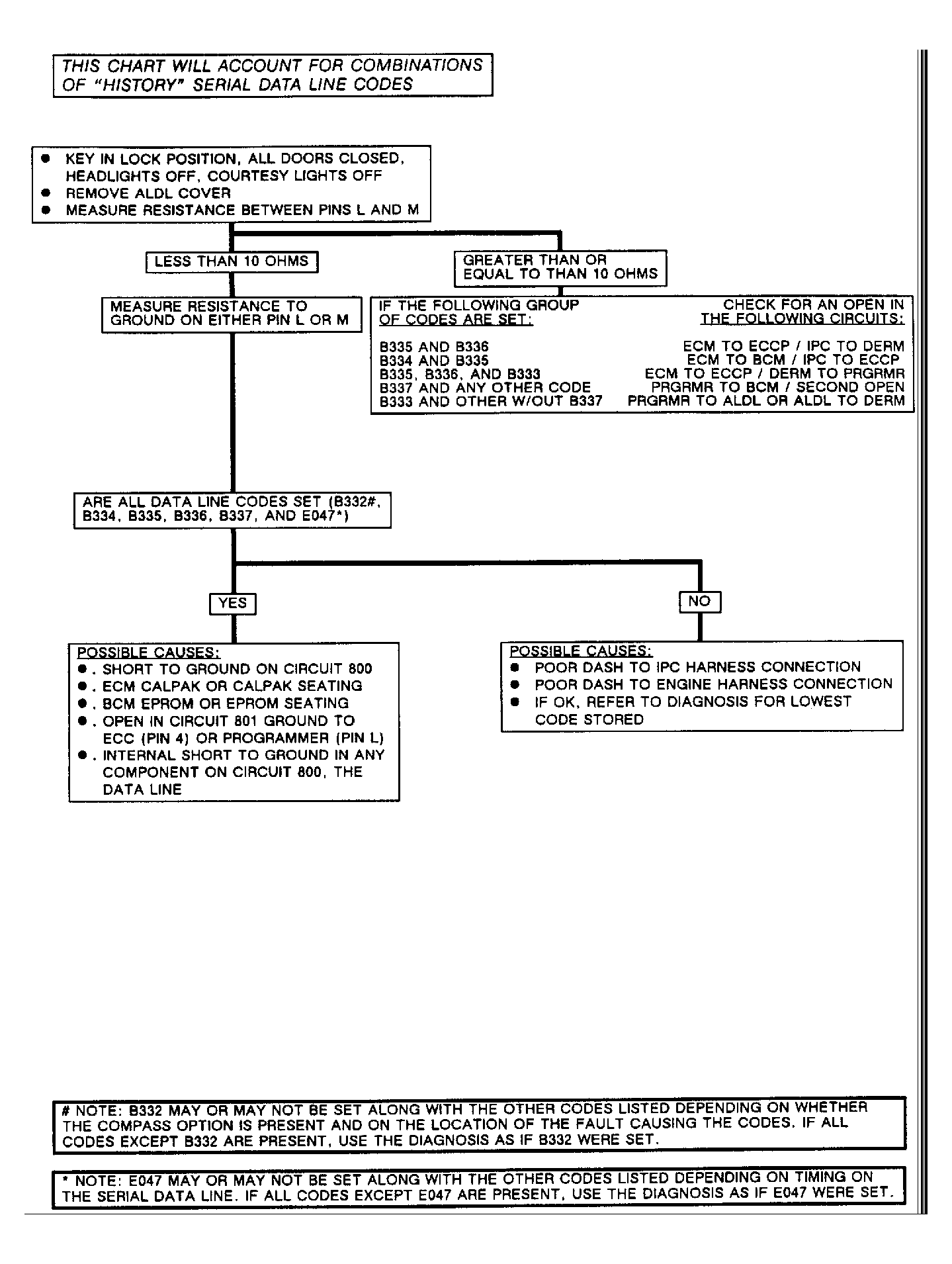

Fig 2: Flow Chart Serial Data Circuit, Multiple Intermittent Data Codes

G90F14378
