Note On Intermittents

If an intermittent Code B332 is stored, manipulate the related wiring at compass module and up to splice. An ELECTRICAL PROBLEM message indicates a loss of data and may help locate fault.

Fig 1: Code B332: Circuit Diagram
G90H17290

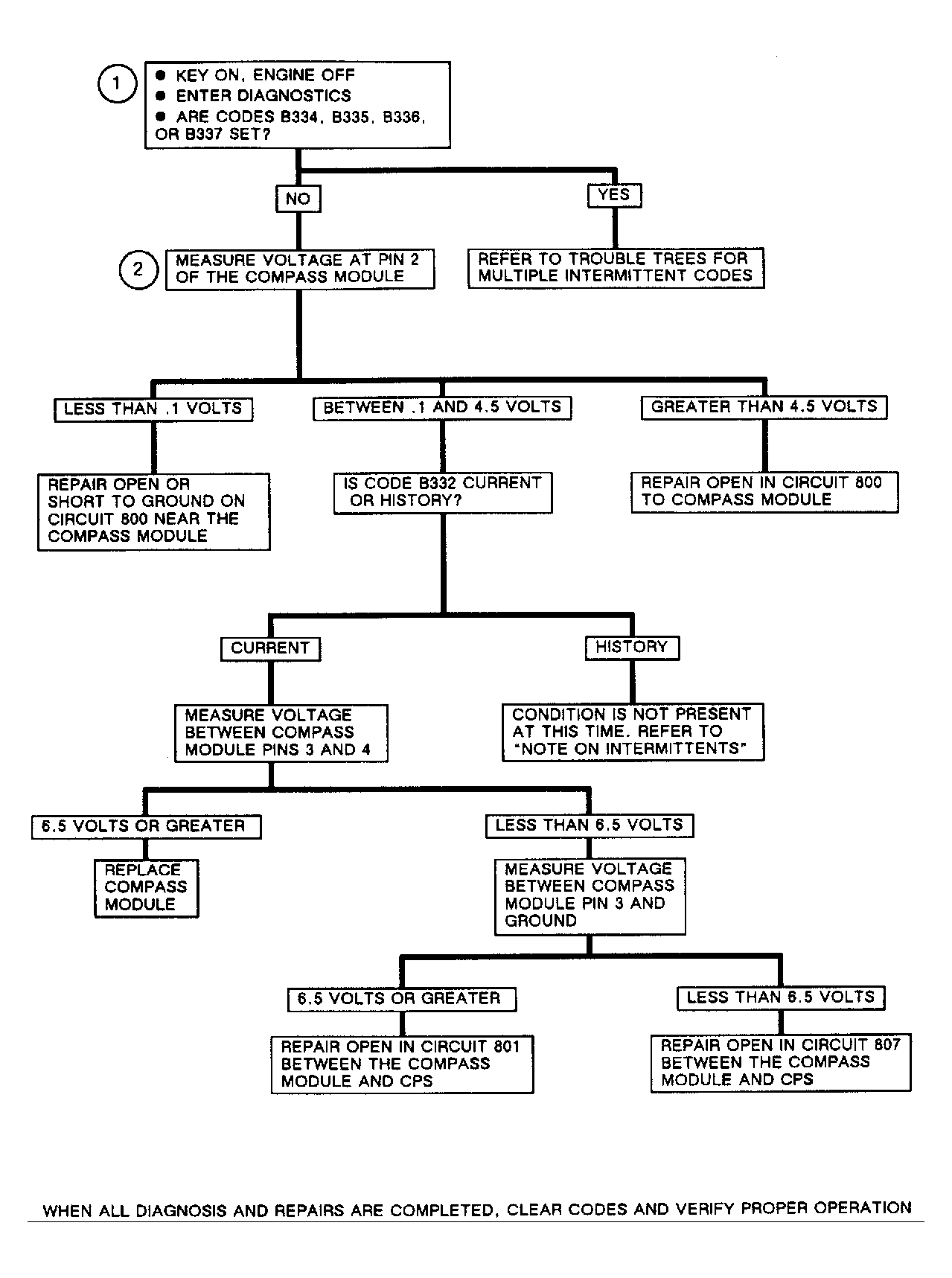

Fig 2: Code B332: Flow Chart Loss of Compass Data
G90G14379
