Window Regulator: Installation

1. Fit regulator (28) to the door.
2. Fit regulator lift arm roller to the window mount sash.
3. Install rivets (27) securing the regulator (28) to the door inner panel.
4. Install water deflector. See WATER DEFLECTOR  .
5. Install armrest bracket. See ARMREST  .
6. Install door trim panel. See TRIM PANEL  .

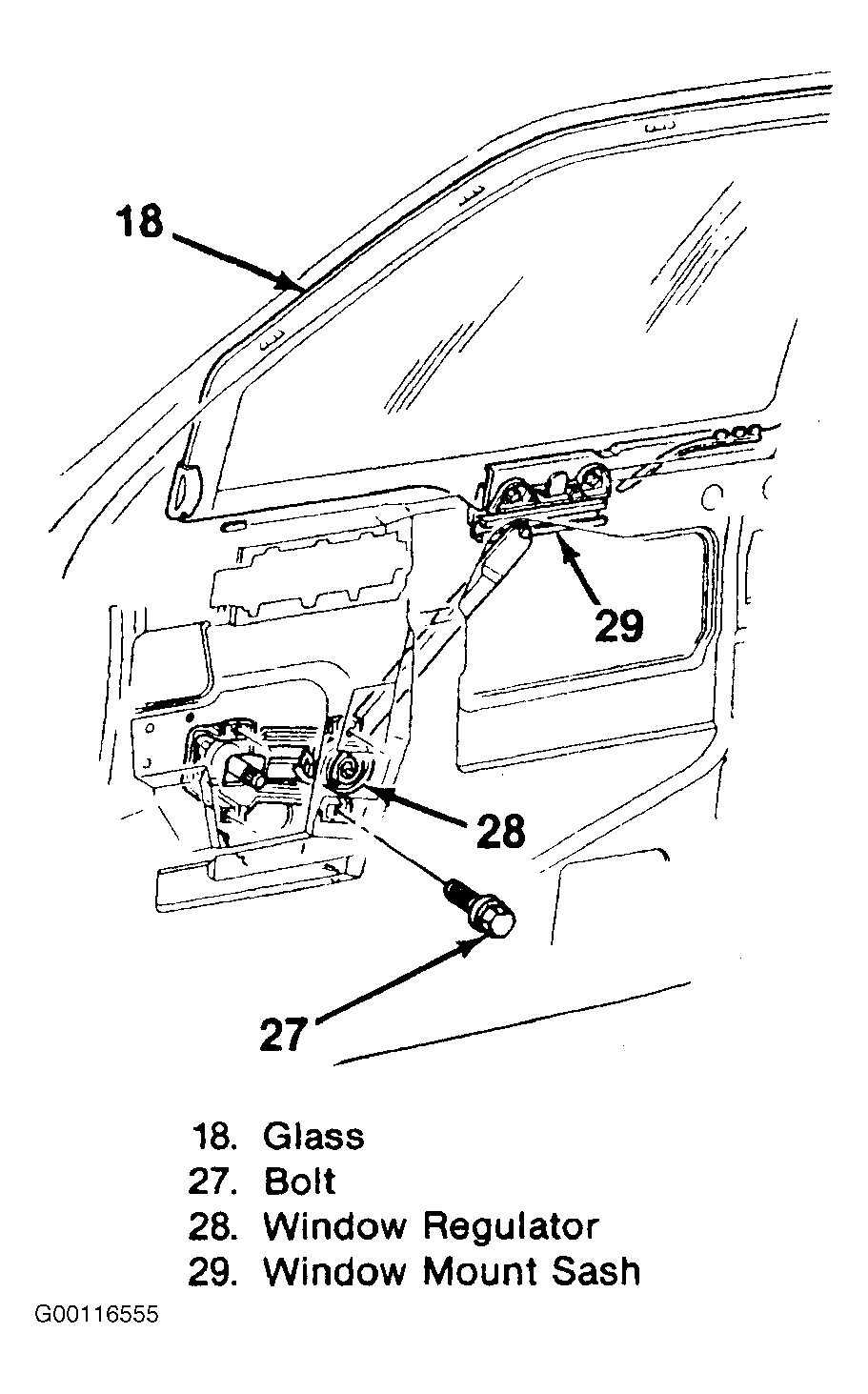

Fig 1: Identifying Front Door Window Regulator

Courtesy of GENERAL MOTORS CORP.

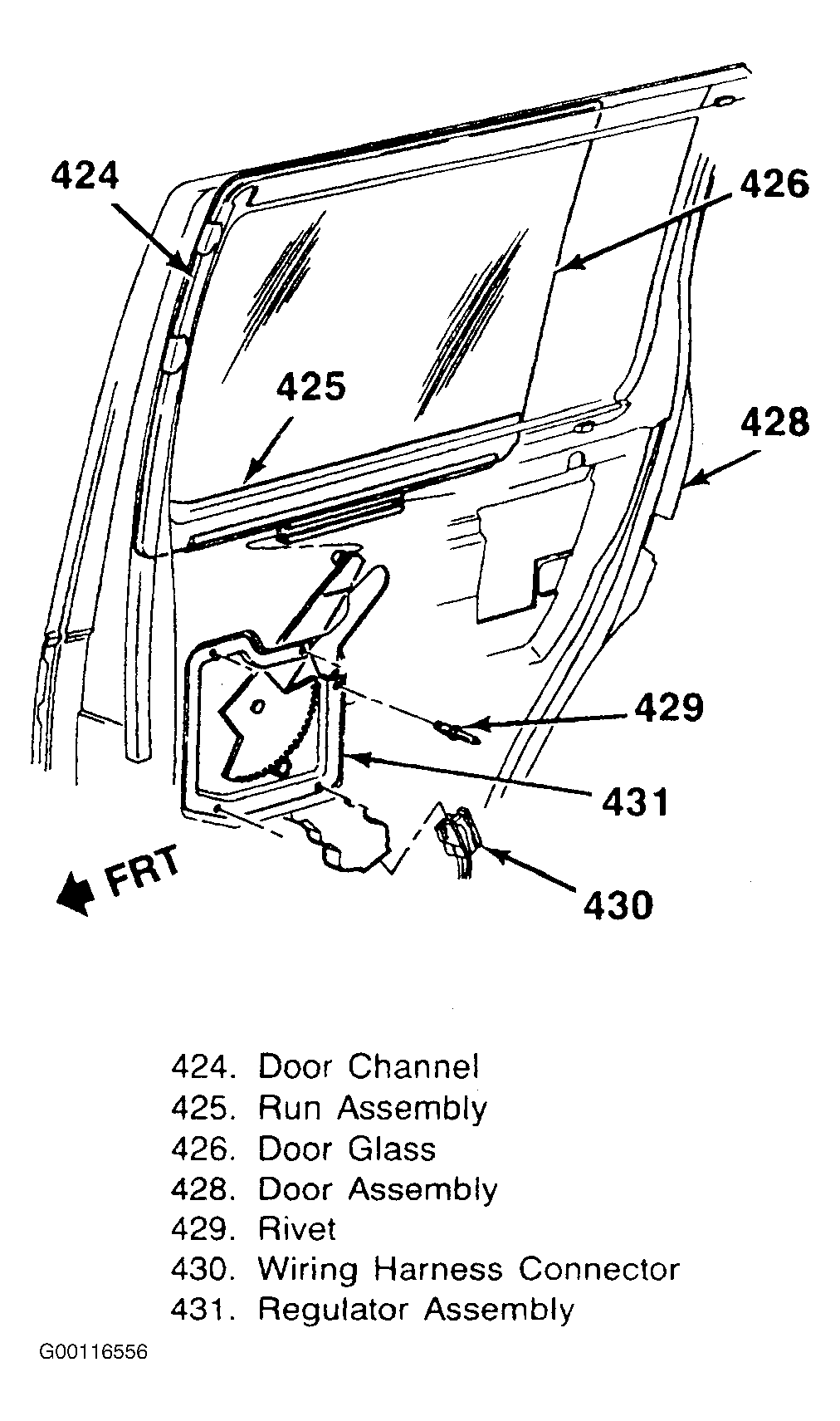

Fig 2: Identifying Rear Door Window Regulator

Courtesy of GENERAL MOTORS CORP.
