Wiring Diagrams

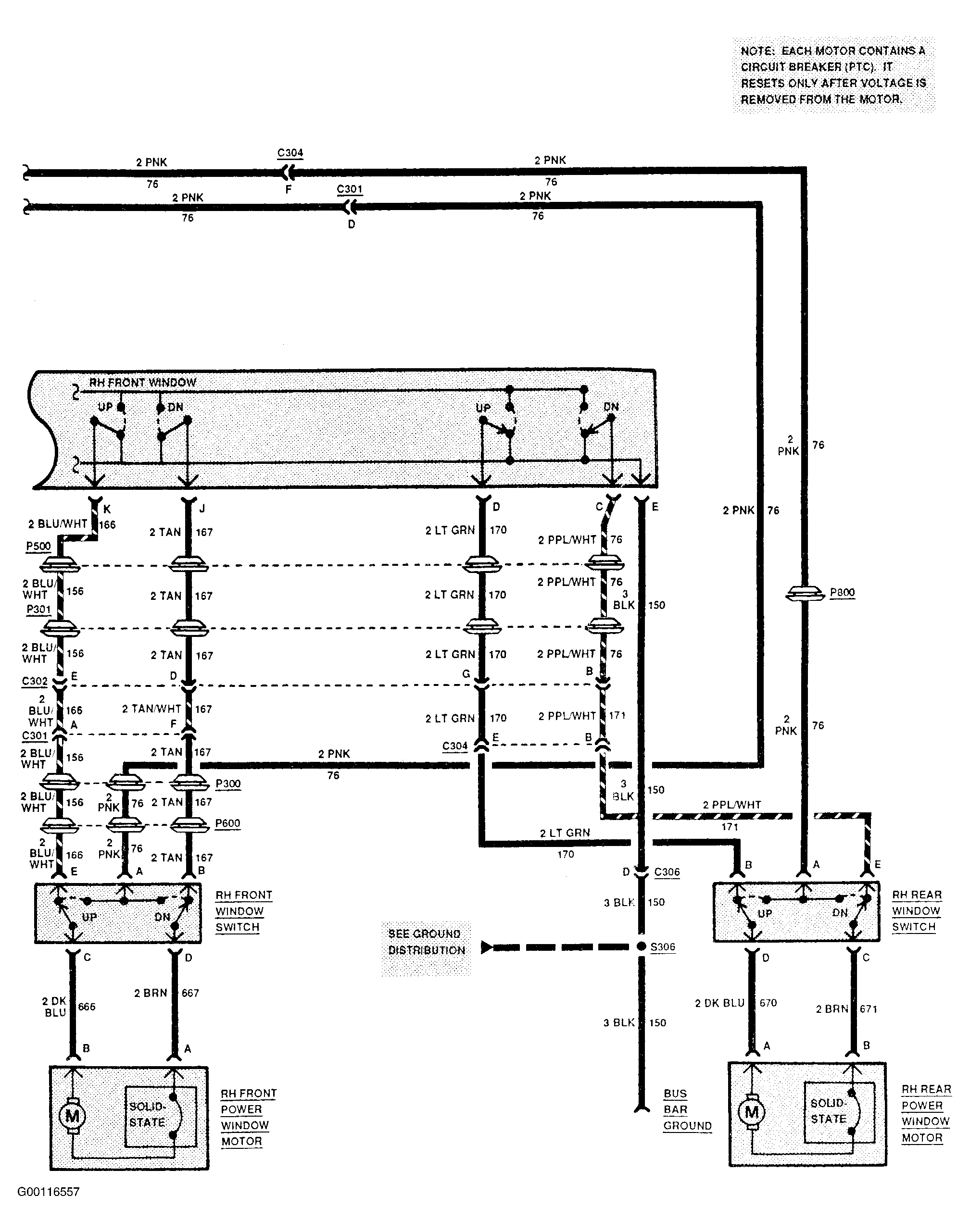

Fig 1: Power Window System Wiring Diagram (1 of 2)
G00116557Courtesy of GENERAL MOTORS CORP.

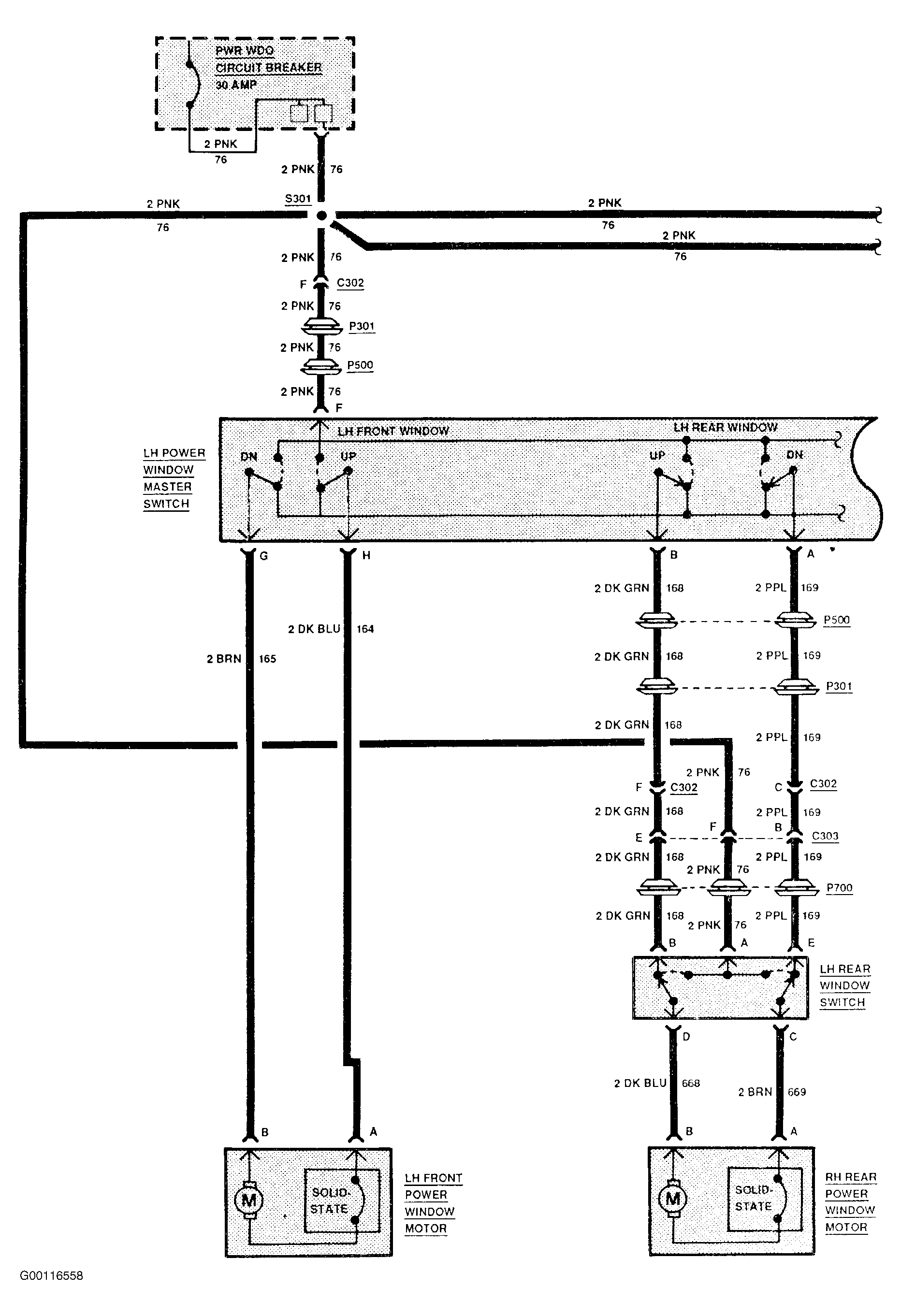

Fig 2: Power Window System Wiring Diagram (2 of 2)
G00116558Courtesy of GENERAL MOTORS CORP.
