Removal & Installation: Armrest: Installation

1. Install armrest (10) to armrest plate hanger (11). See Fig 1 . Push armrest (10) toward the door to engage clips.
2. Install armrest screws (9) and tighten to specification. See TORQUE SPECIFICATIONS  .

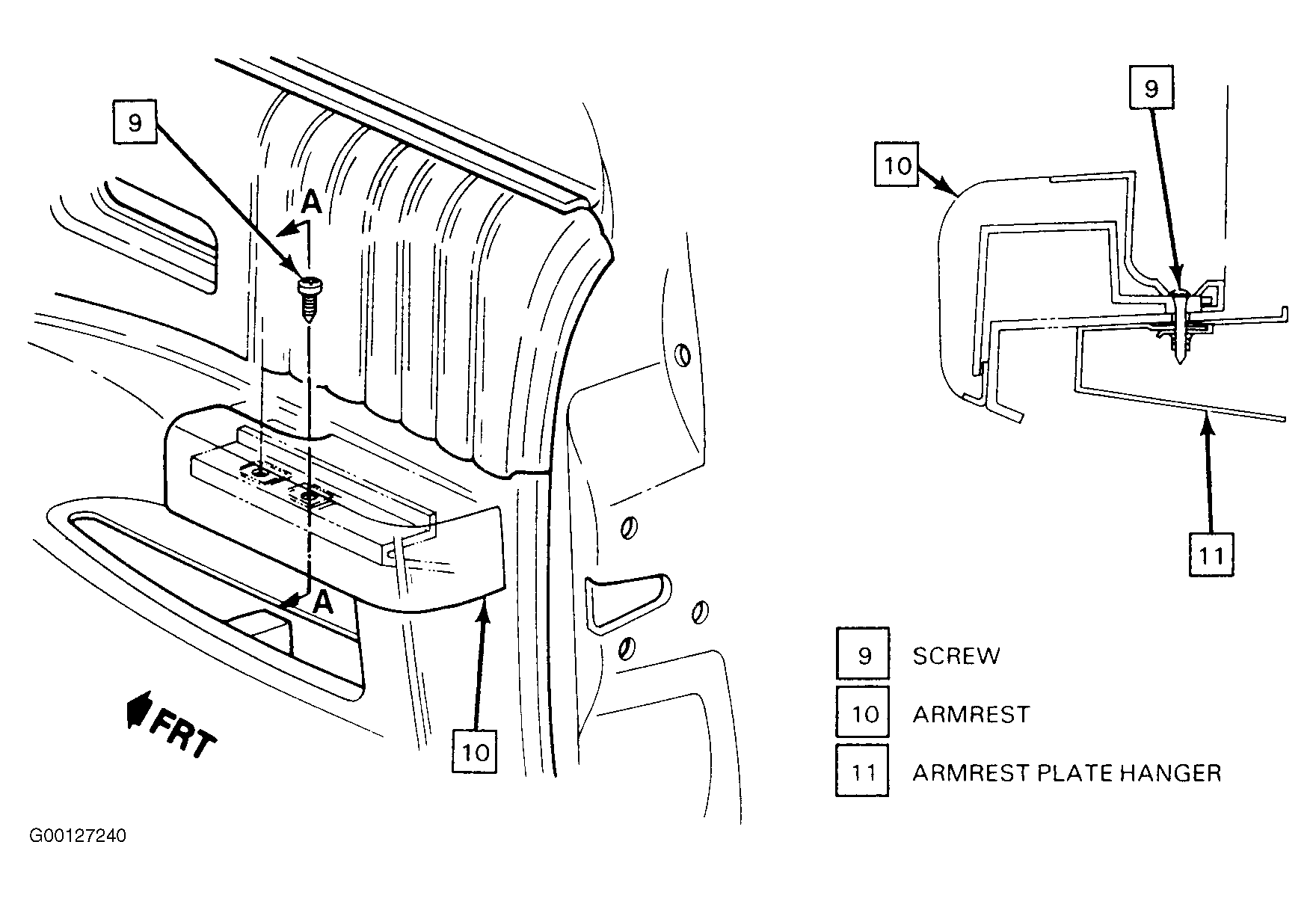

Fig 1: Removing Armrest

Courtesy of GENERAL MOTORS CORP.
