Rear Window Run Channel Retainer: Installation

1. Install rear window run channel retainer (124) with insulator (129). See Fig 1 .
2. Install screw (123). See TORQUE SPECIFICATIONS  .
3. Install retainer (128).
4. Install water deflector. See WATER DEFLECTOR  .
5. Install door trim panel. See TRIM PANEL  .

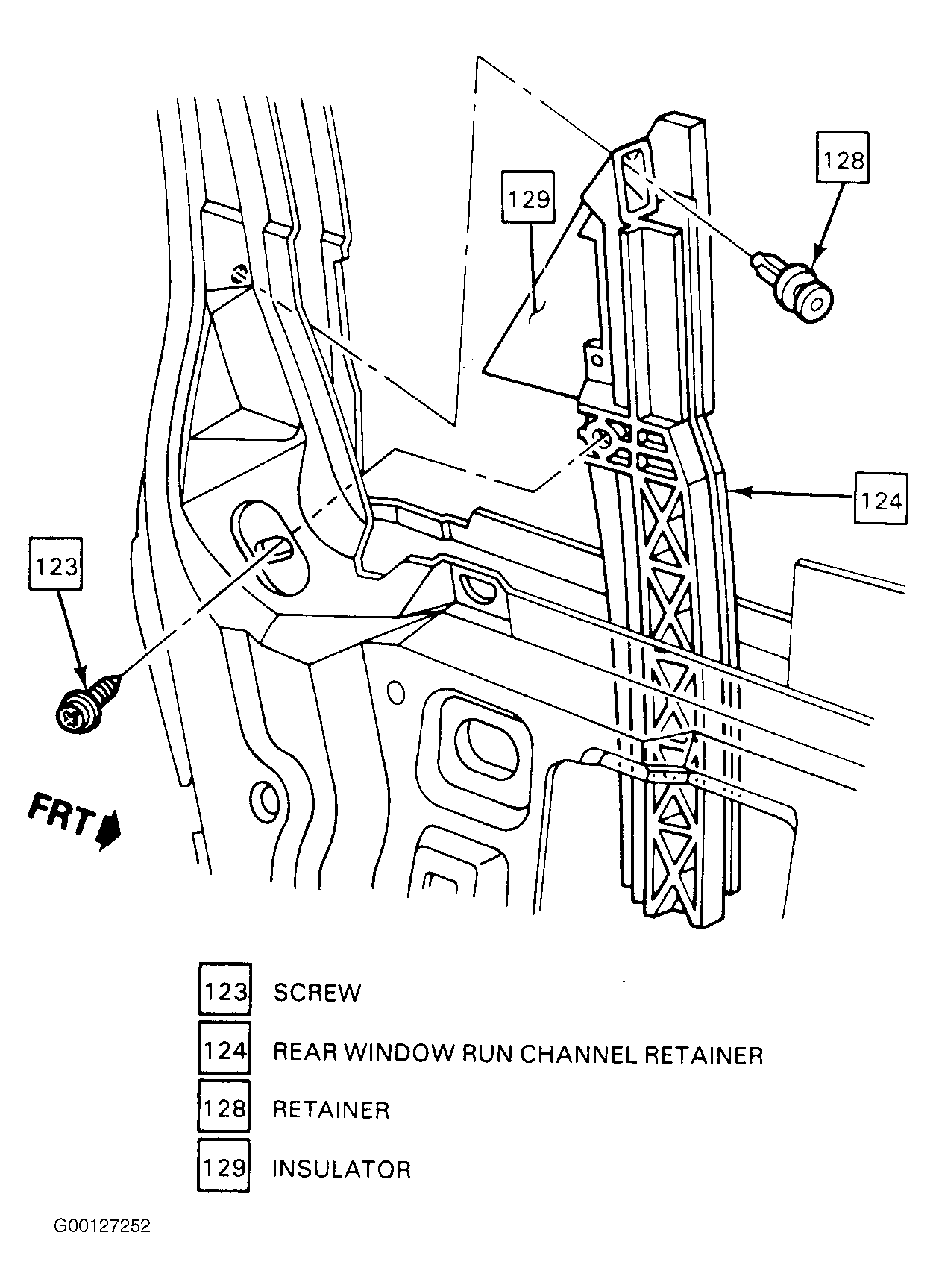

Fig 1: Removing Rear Window Run Channel Retainer

Courtesy of GENERAL MOTORS CORP.
