Removal (Convertible)

Remove parking brake lever assembly with switch and release handle. See PARKING BRAKE LEVER ASSEMBLY .
Remove screws and autodown module from under instrument panel. See Fig 1 .
Remove electrical connector from autodown module.

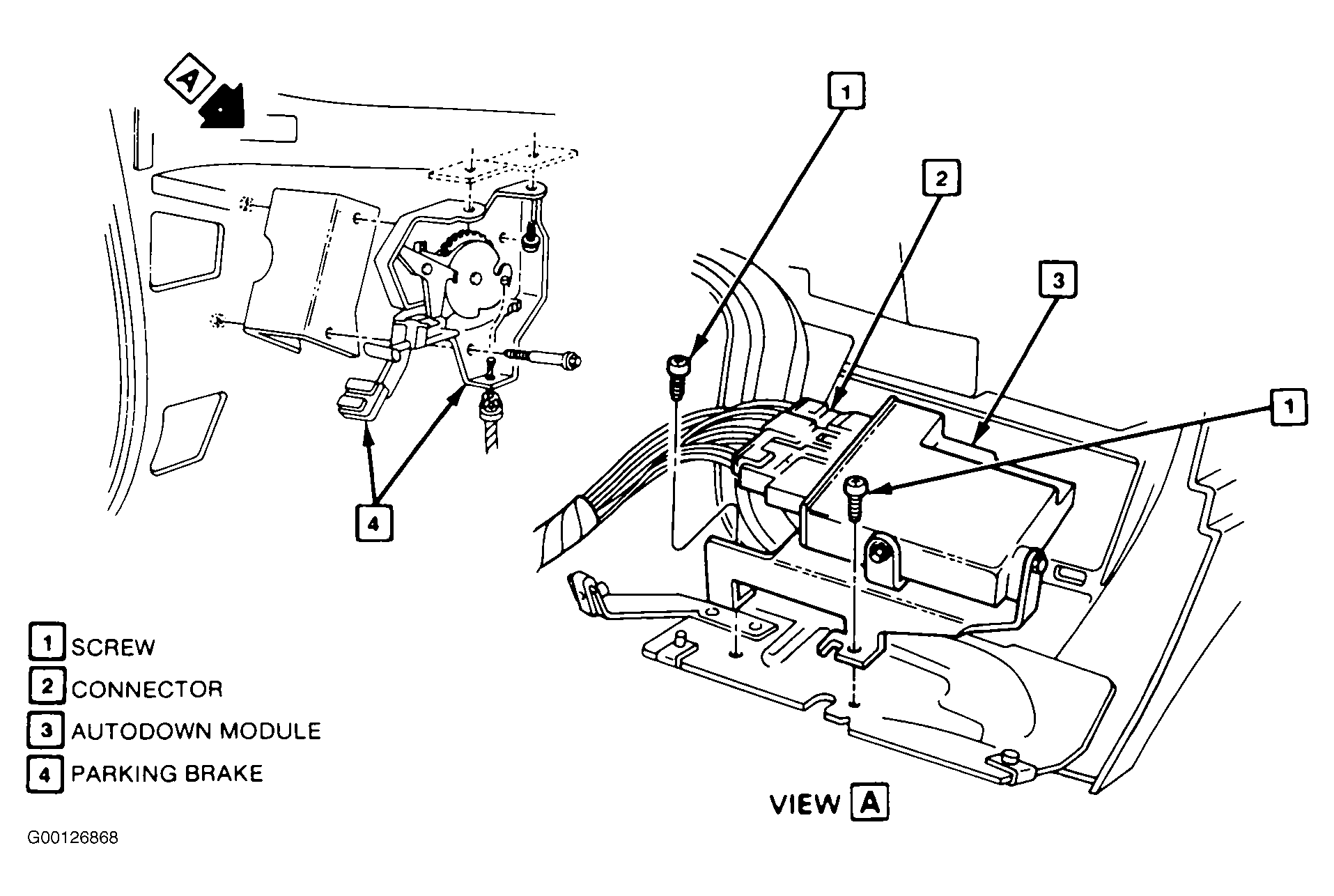

Fig 1: Removing Autodown Module (Convertible)

Courtesy of GENERAL MOTORS CORP.
