Wiring Diagrams

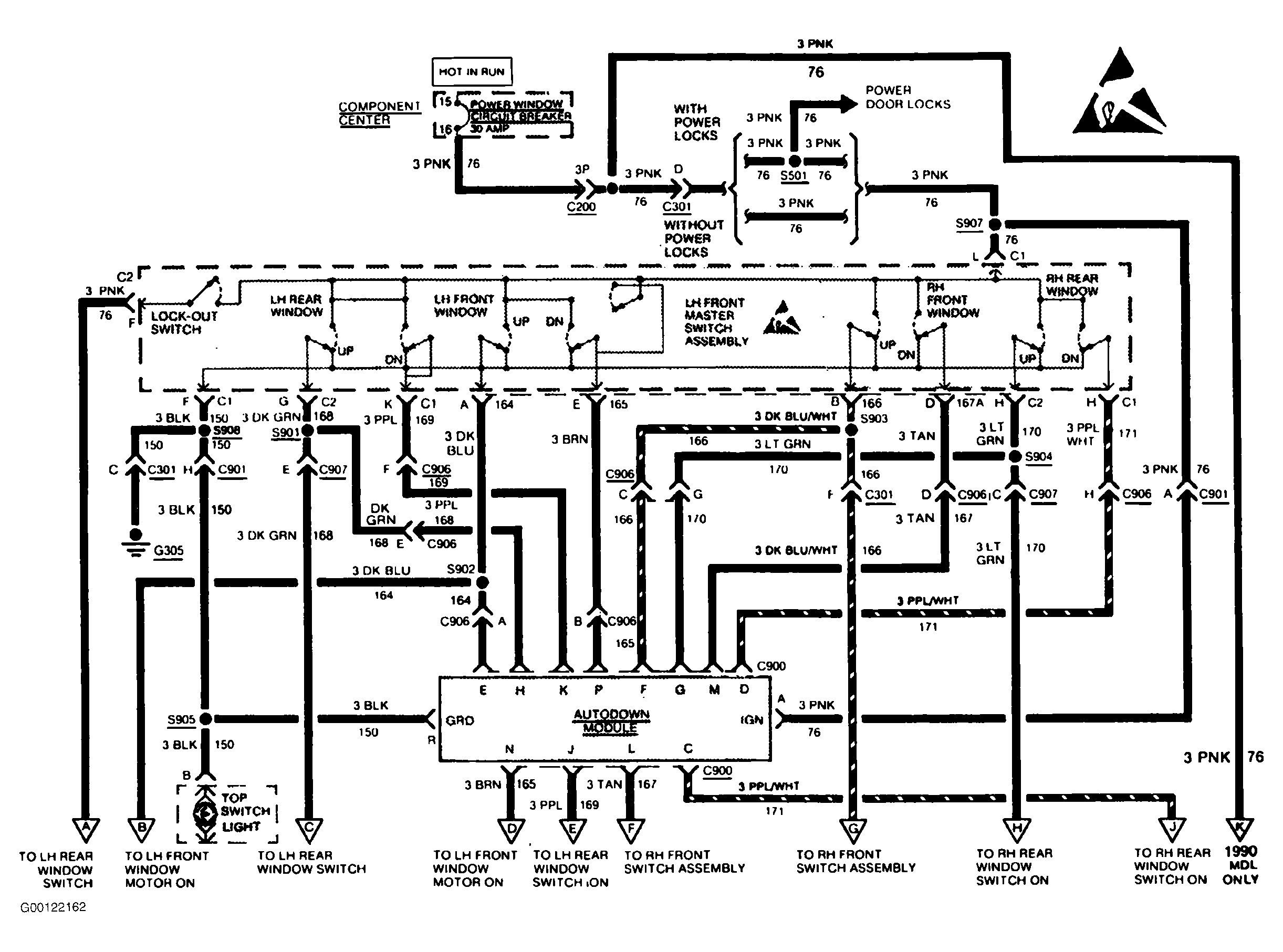

Fig 1: Wiring Diagram (Convertible) - (1 Of 2)

G00122162

Courtesy of GENERAL MOTORS CORP.

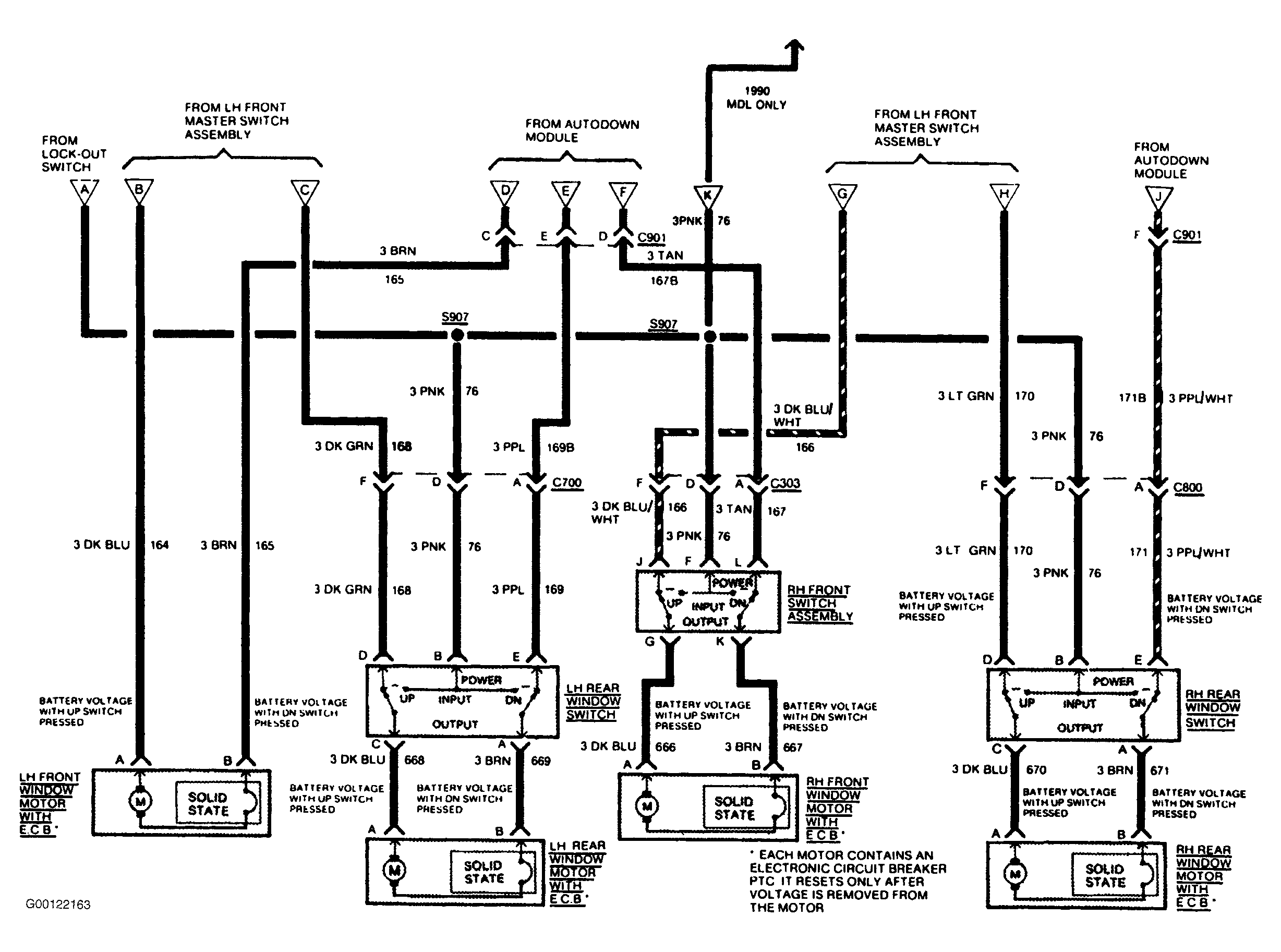

Fig 2: Wiring Diagram (Convertible) - (2 Of 2)

G00122163

Courtesy of GENERAL MOTORS CORP.

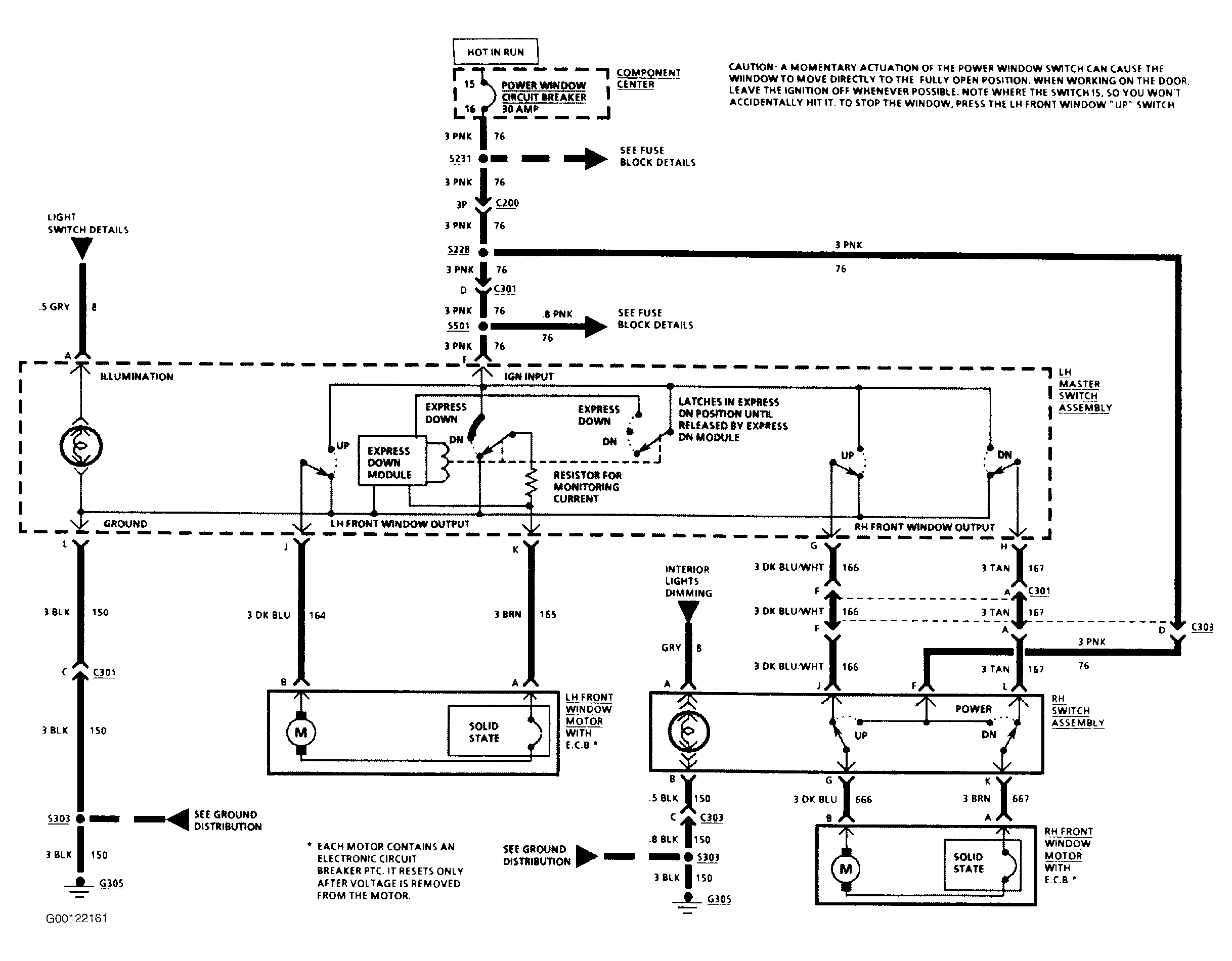

Fig 3: Wiring Diagram (2-Door)

G00122161

Courtesy of GENERAL MOTORS CORP.

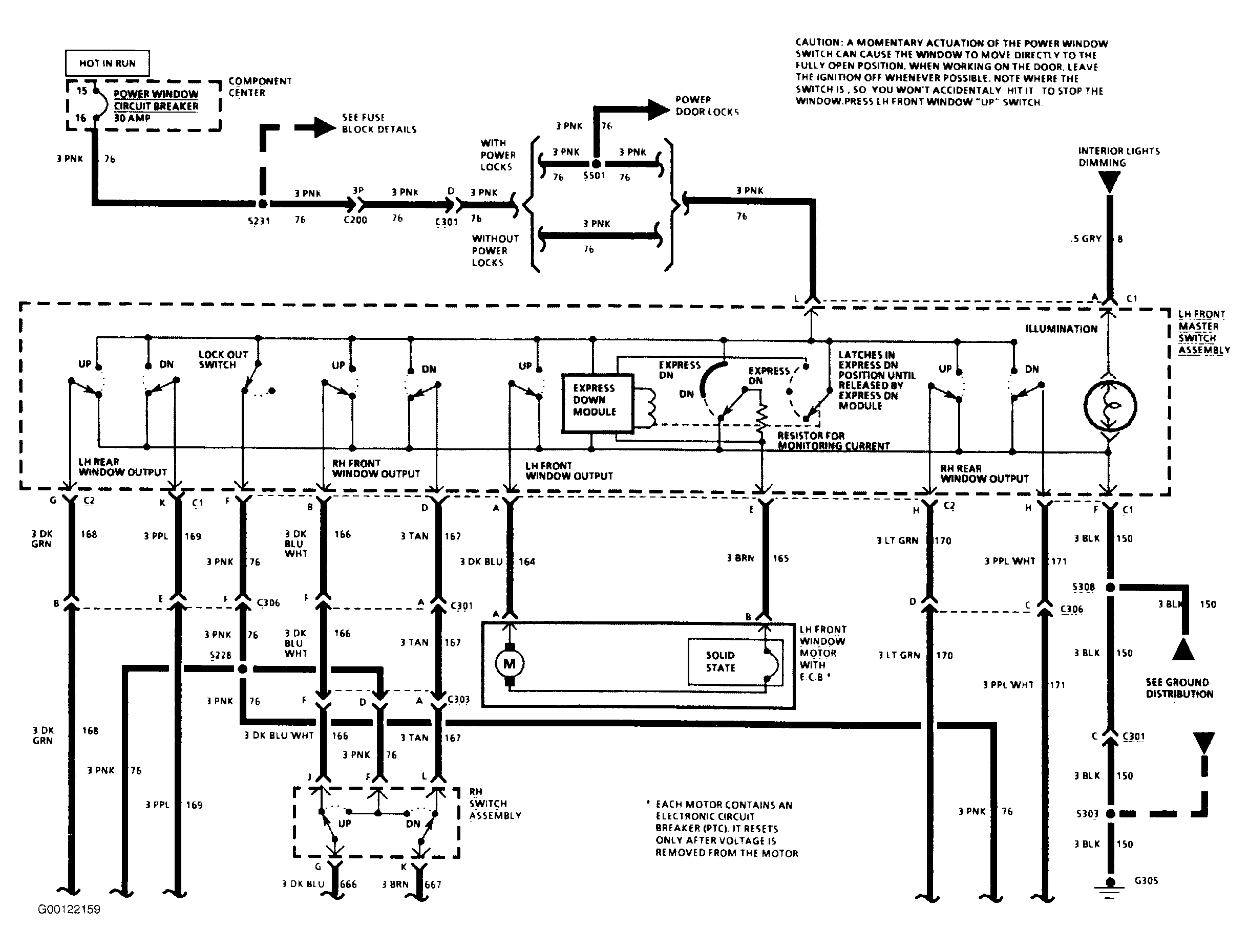

Fig 4: Wiring Diagram (4-Door) - (1 Of 2)

G00122159

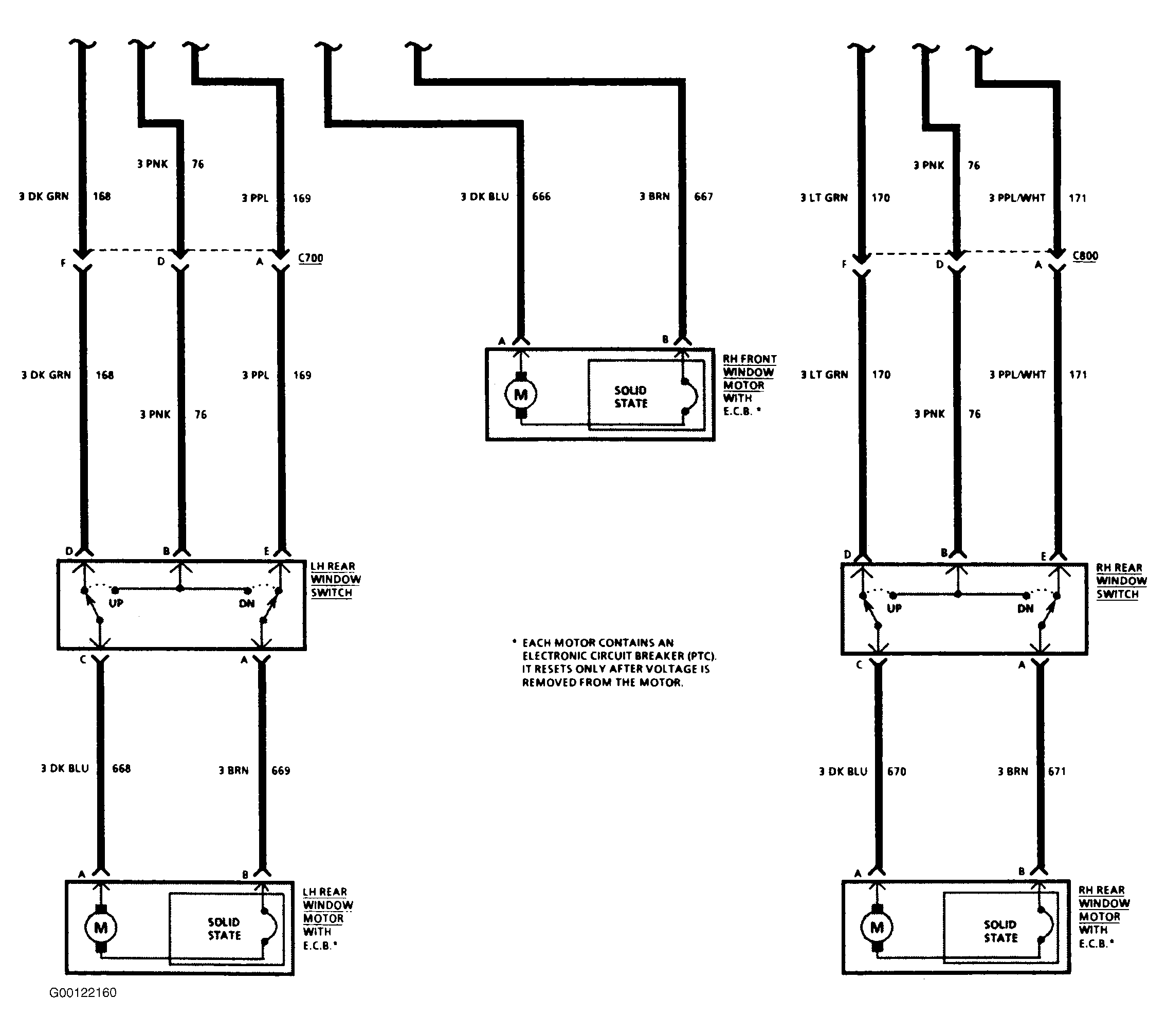

Fig 5: Wiring Diagram (4-Door) - (2 Of 2)

G00122160

Courtesy of GENERAL MOTORS CORP.
