Test D: Window Switch Test

For testing procedures, see Fig 1 or Fig 2 .

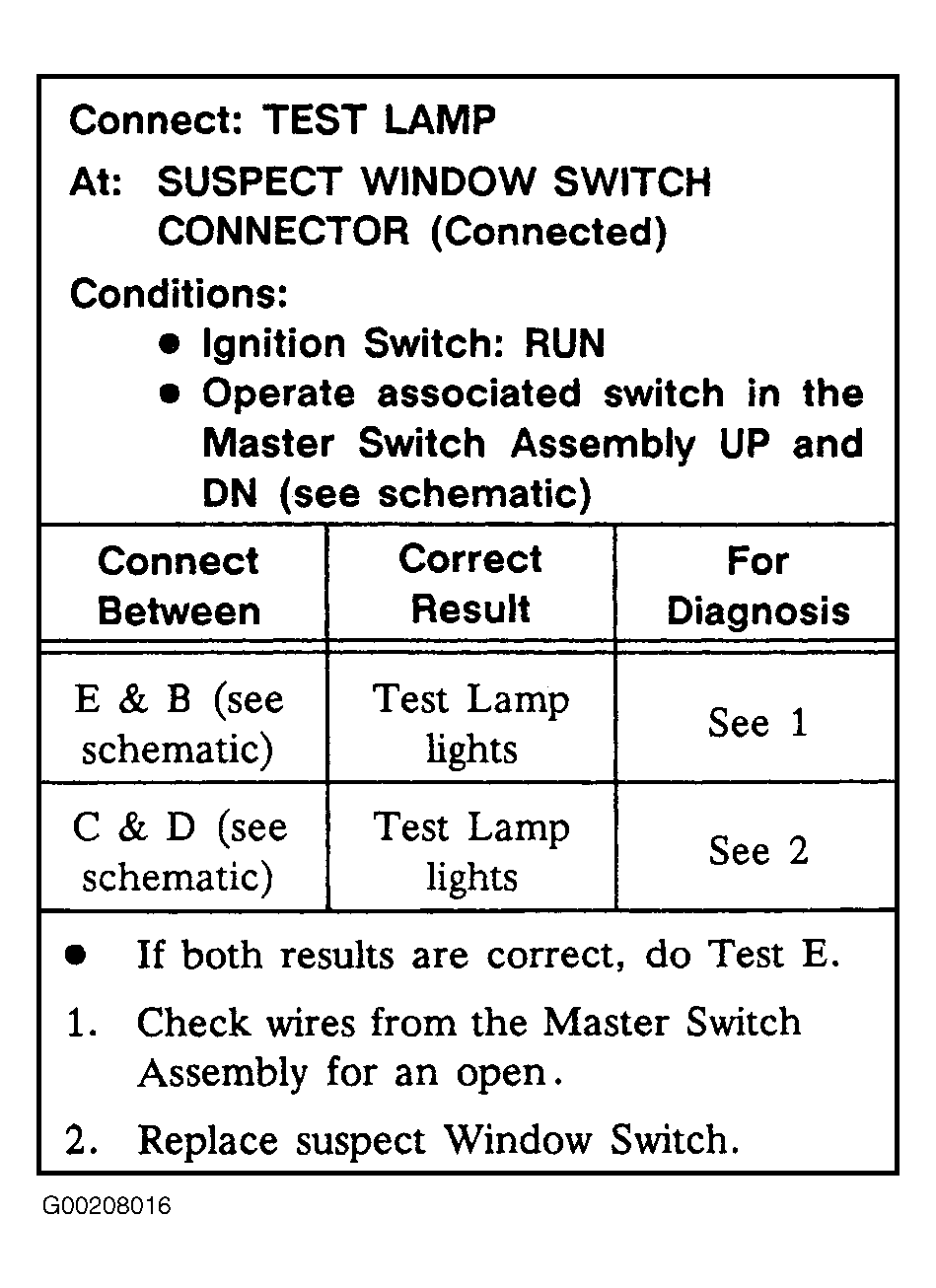

Fig 1: Test D: Window Switch Test (Eighty-Eight)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Test D: Window Switch Test (Ninety-Eight)

Courtesy of GENERAL MOTORS CORP.
