Test E: Window Motor Test

For testing procedures, see Fig 1 or Fig 2 .

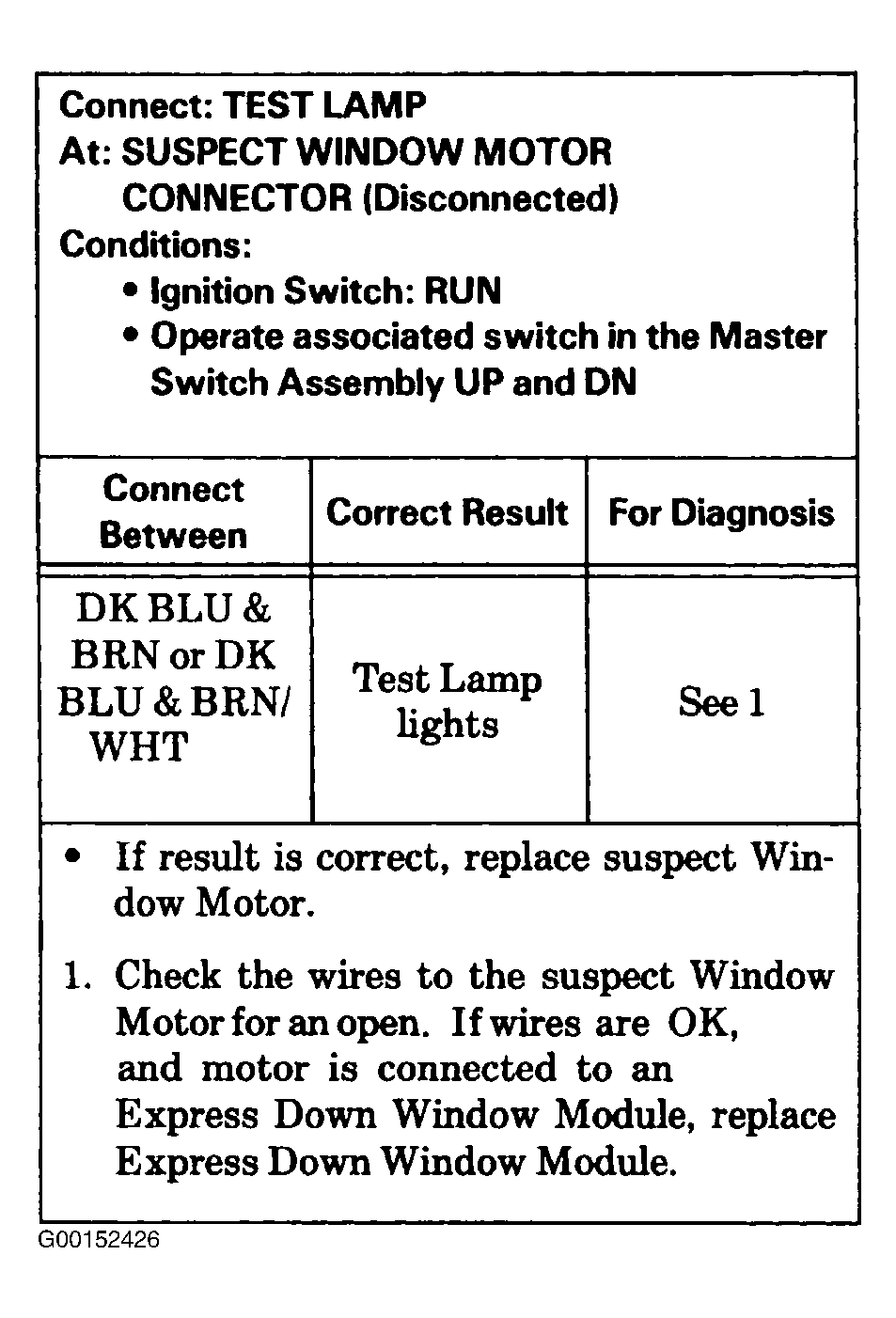

Fig 1: Test E: Window Motor Test (Eighty-Eight)
G00152426Courtesy of GENERAL MOTORS CORP.

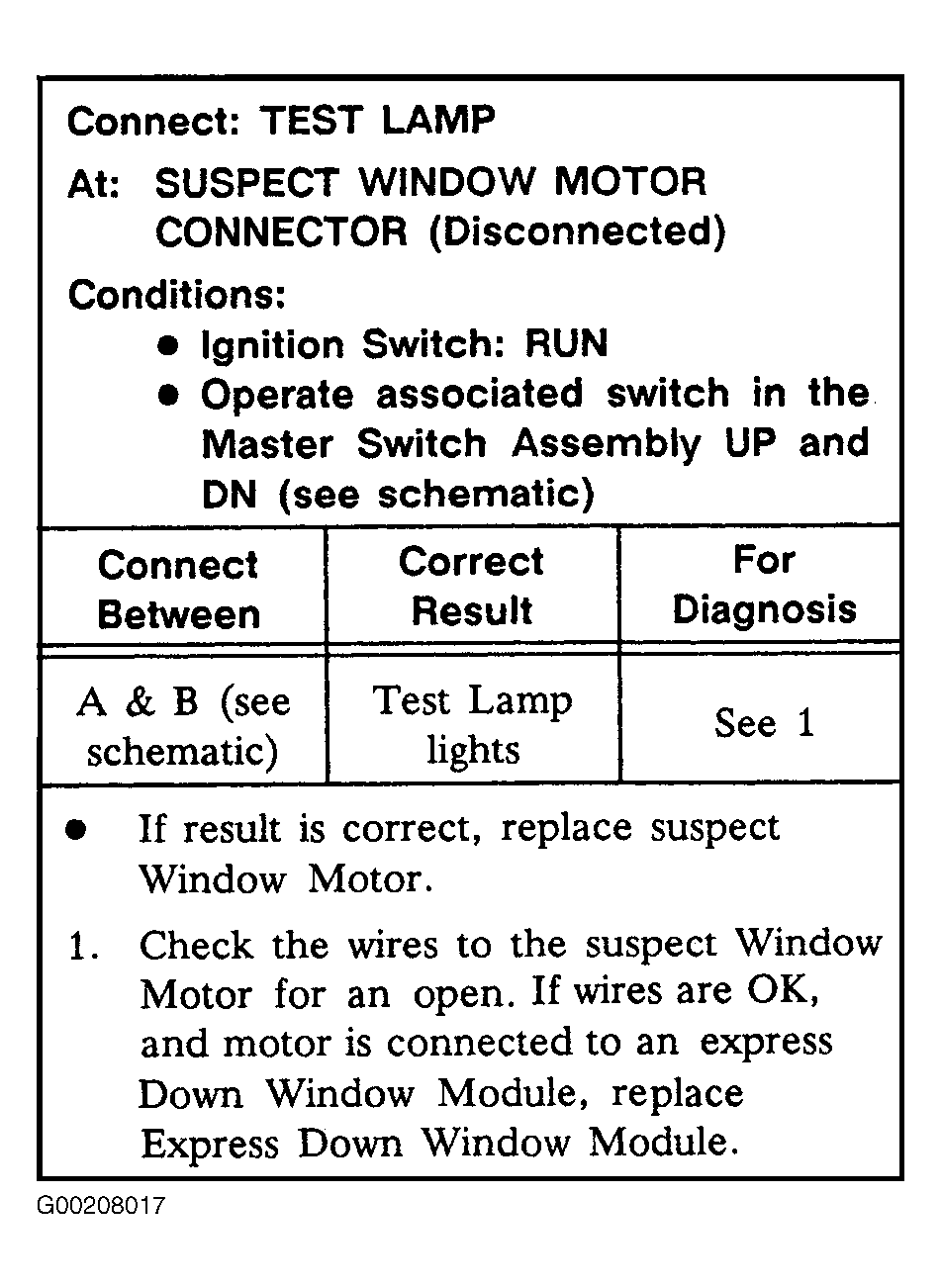

Fig 2: Test E: Window Motor Test (Ninety-Eight)
G00208017Courtesy of GENERAL MOTORS CORP.
