Test F: Window Switch Power Test

For testing procedures, see Fig 1 .

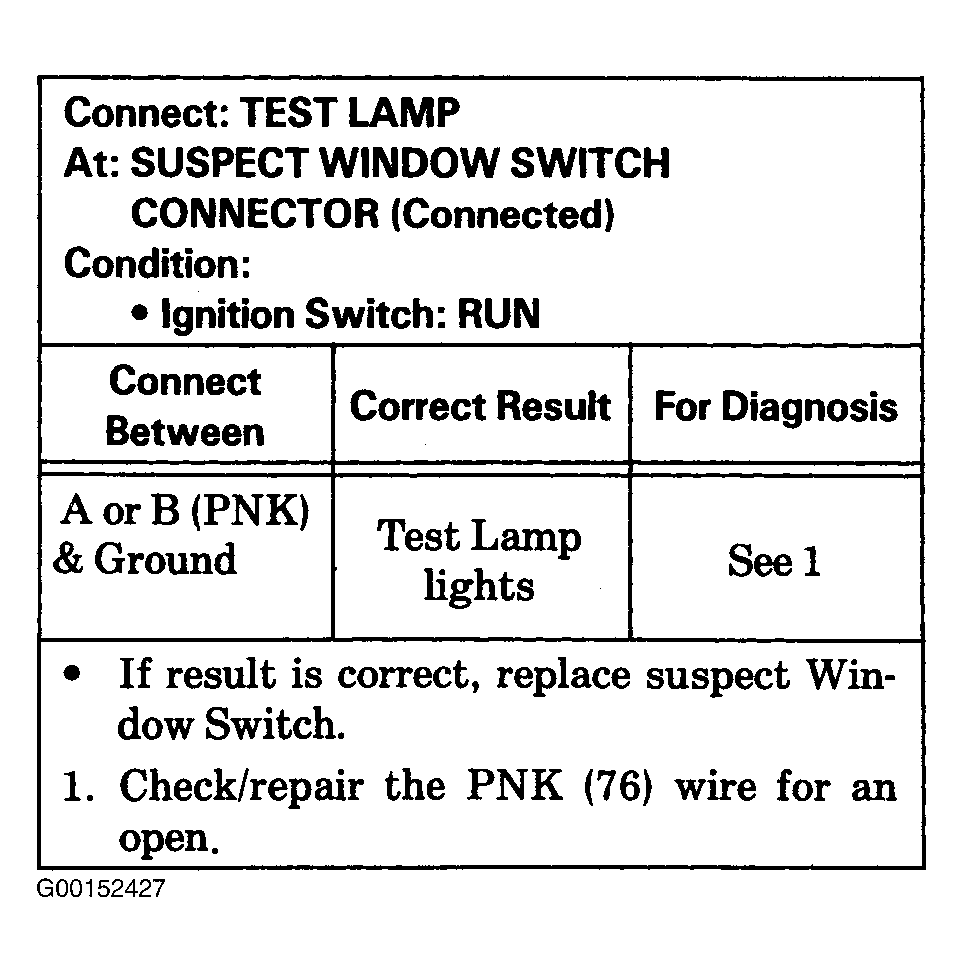

Fig 1: Test F: Window Switch Power Test (Eighty-Eight)

Courtesy of GENERAL MOTORS CORP.

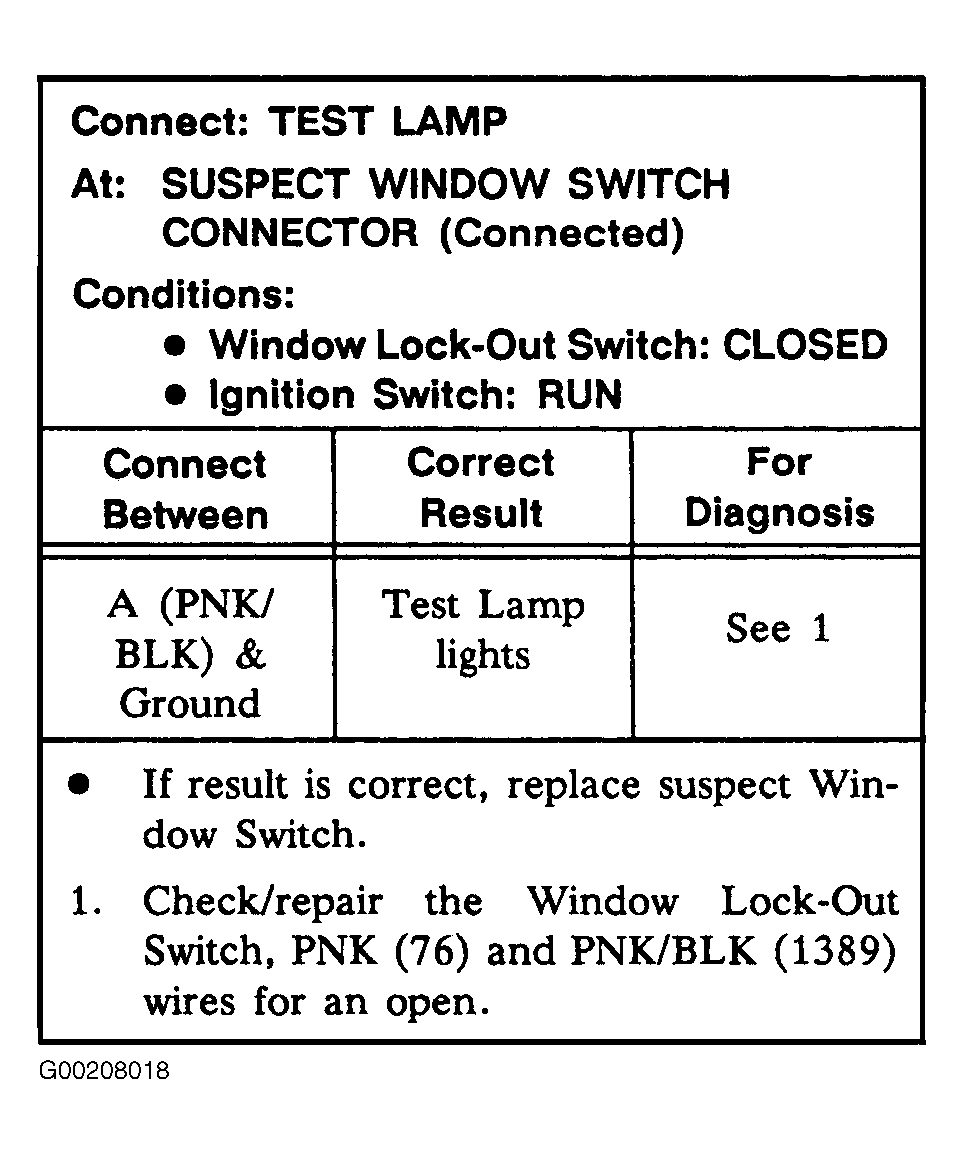

Fig 2: Test F: Window Switch Power Test (Ninety-Eight)

Courtesy of GENERAL MOTORS CORP.
