Installation (Driver)

Install electrical connector to switch plate. See Fig 1 .
Position plate to armrest opening rear tab first.
Push down on front until fully seated.

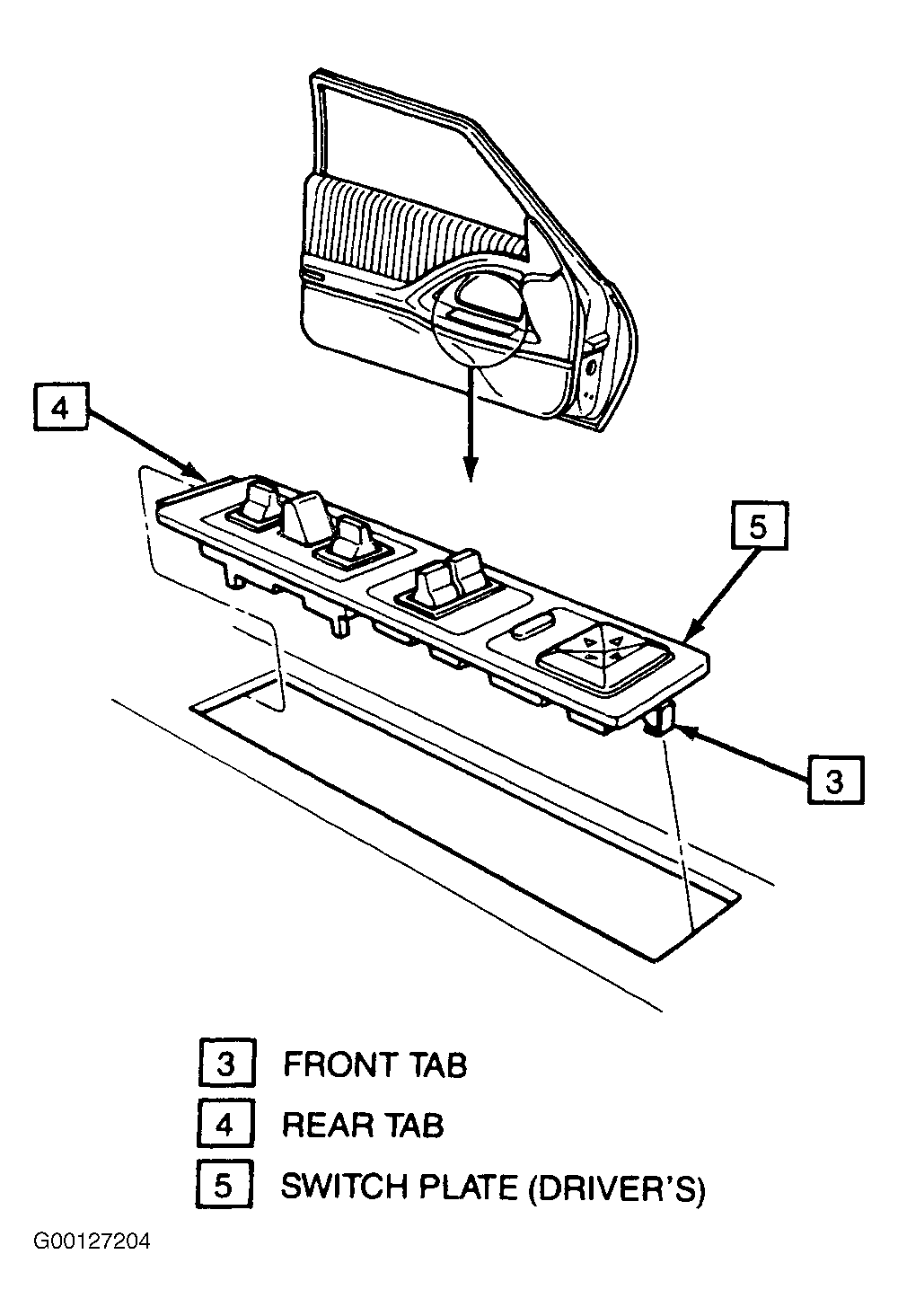

Fig 1: Identifying Switch Plate (Driver)

G00127204

Courtesy of GENERAL MOTORS CORP.
