EXPERTEC TSB (92-U-20)

Publication date: 1991-11-13
Reference number: 92-U-20

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 92-U-20, Date of Issue: 11/13/91

11/13/1991

Oldsmobile 92-U-20

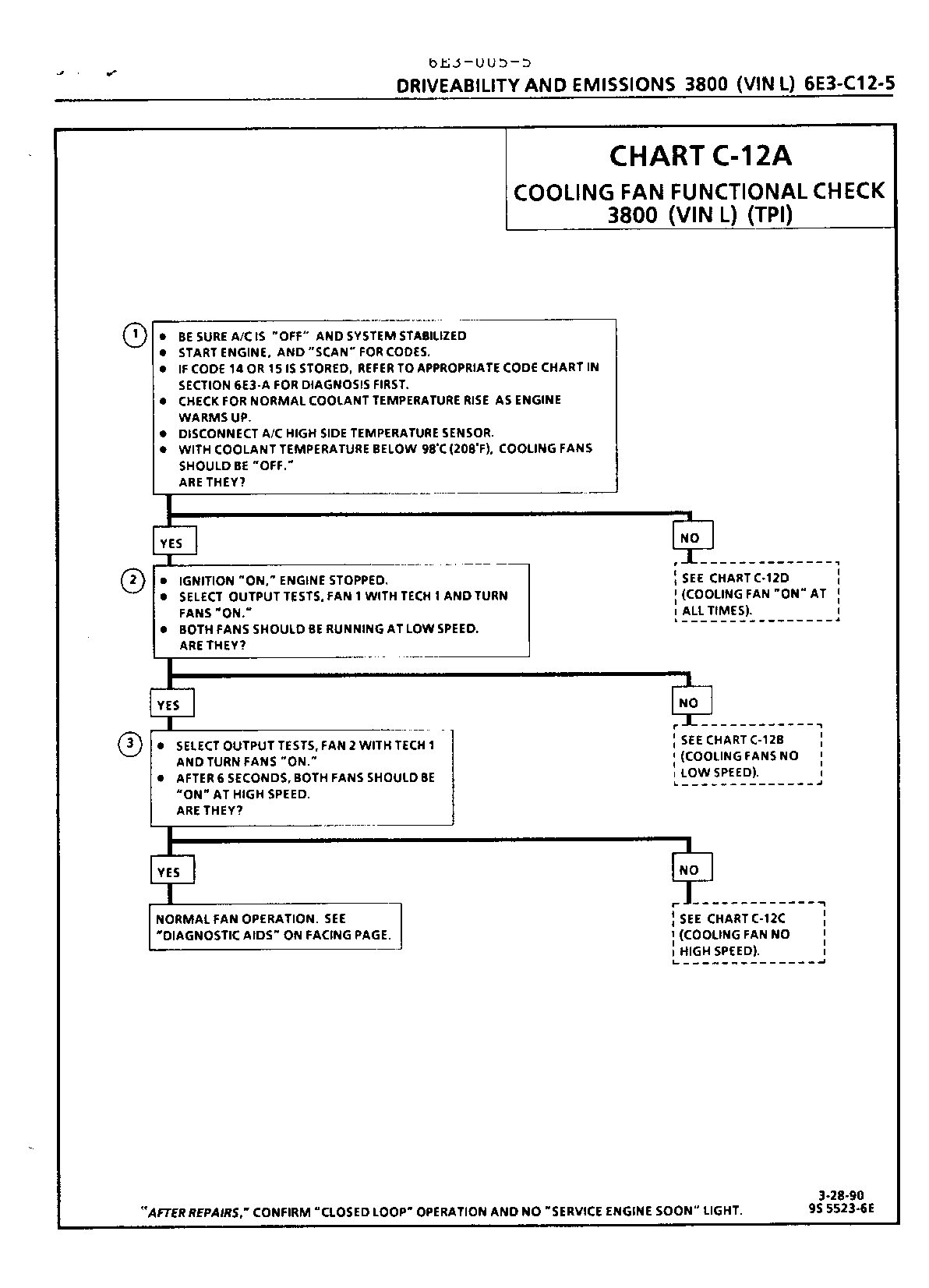

Fig 1: Graphic

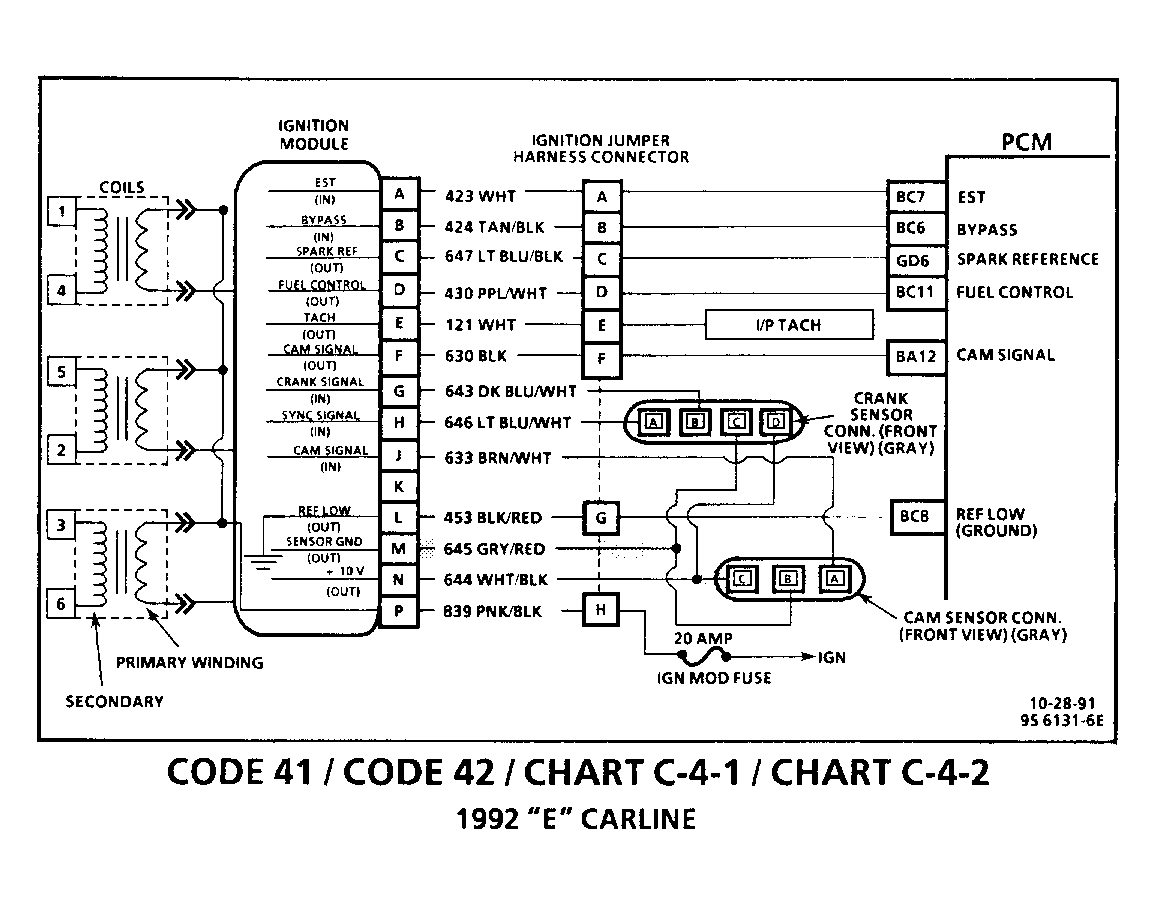

Fig 2: Graphic

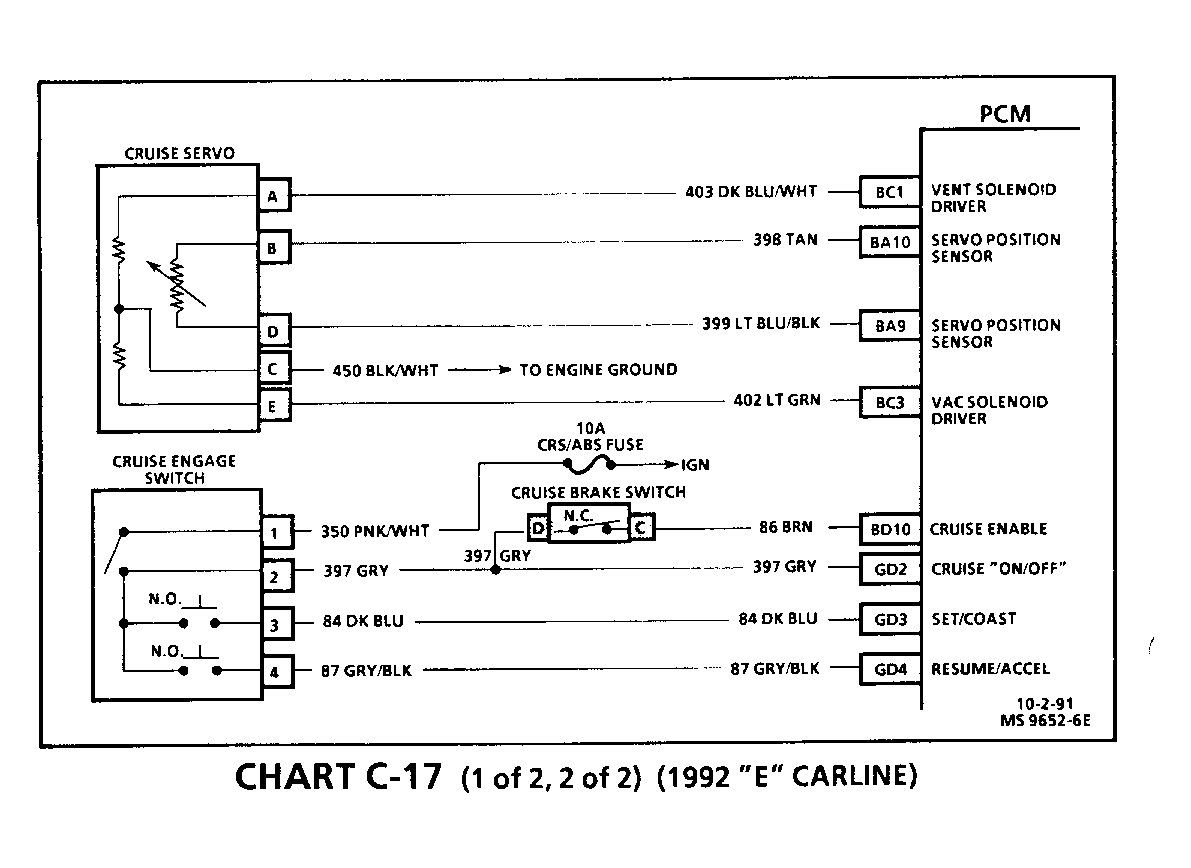

Fig 3: Graphic

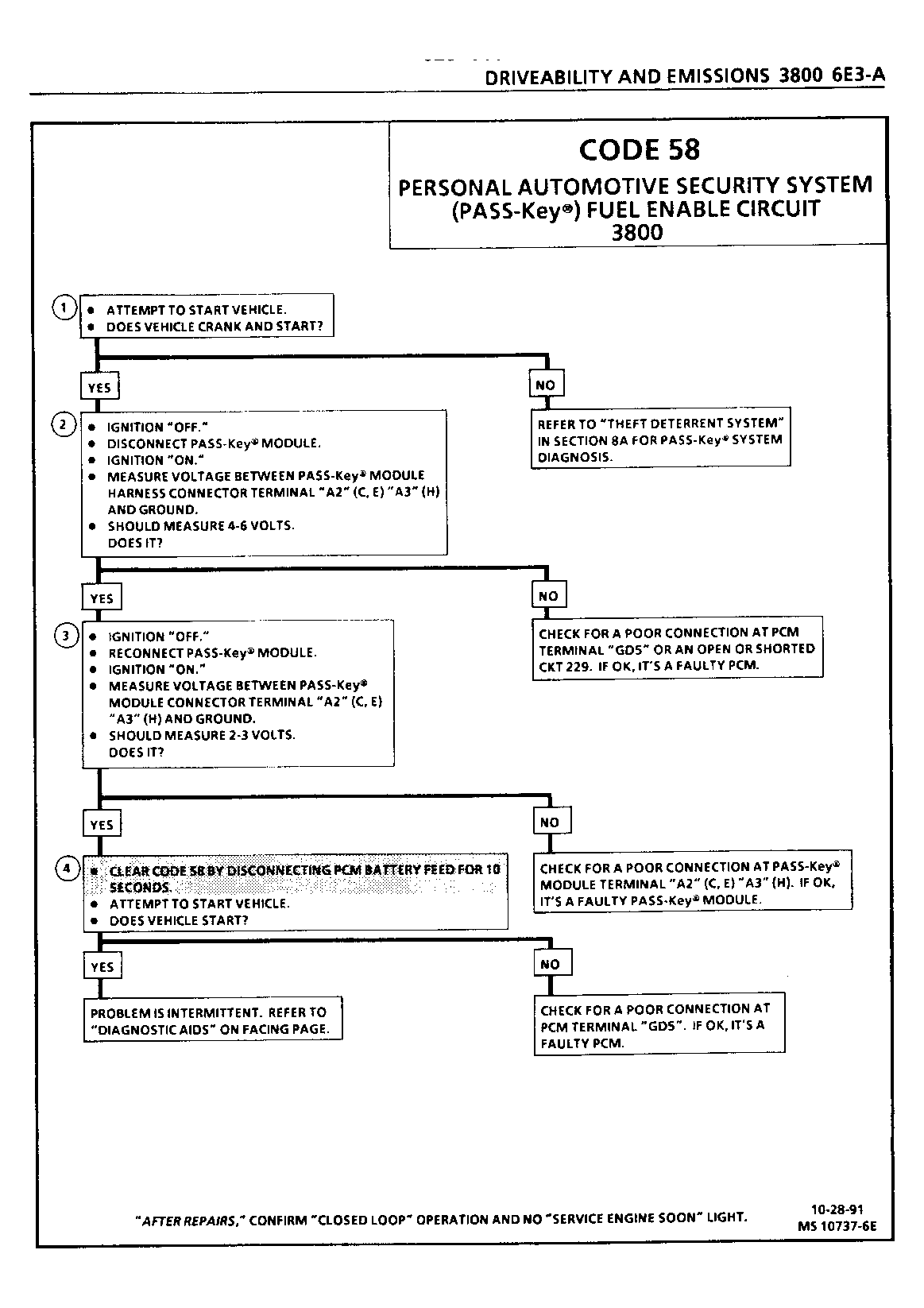

Fig 4: Graphic

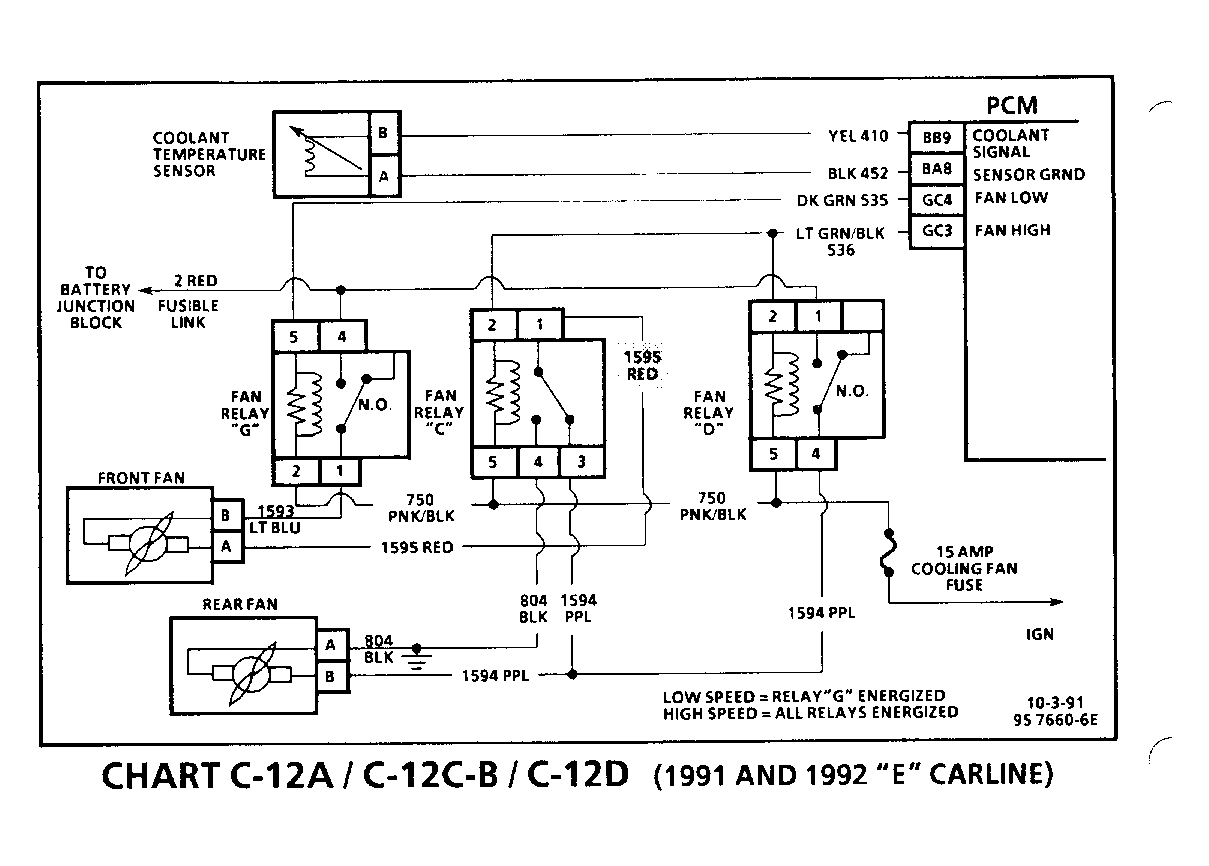

Fig 5: Graphic

Fig 6: Graphic

SECTION 6E3 REVISED PAGES

MODELS/YEARS: 1991-92 NINETY EIGHT, TORONADO/TROFEO, 1992 EIGHTY EIGHT

----------------------------------------------------------------------------

Fig 7: Service Information (1 Of 1)
