Component Locations

Component	Location

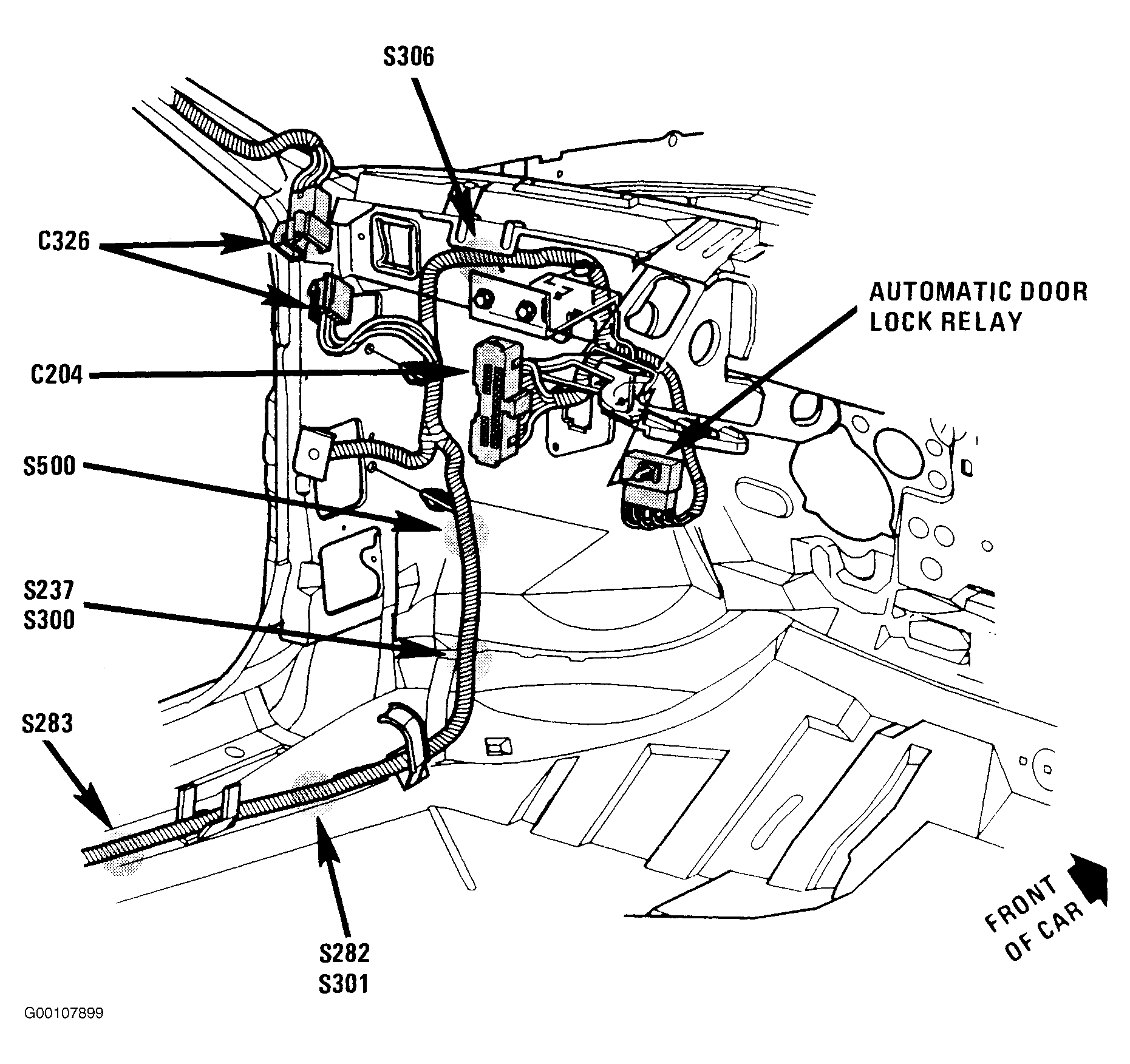

Automatic Door Lock Relay	Behind Left Side Of Instrument Panel, Near Shroud. See Fig 1
Door Lock Motor	In Upper Front Of Respective Door. See Fig 2 -Fig 5

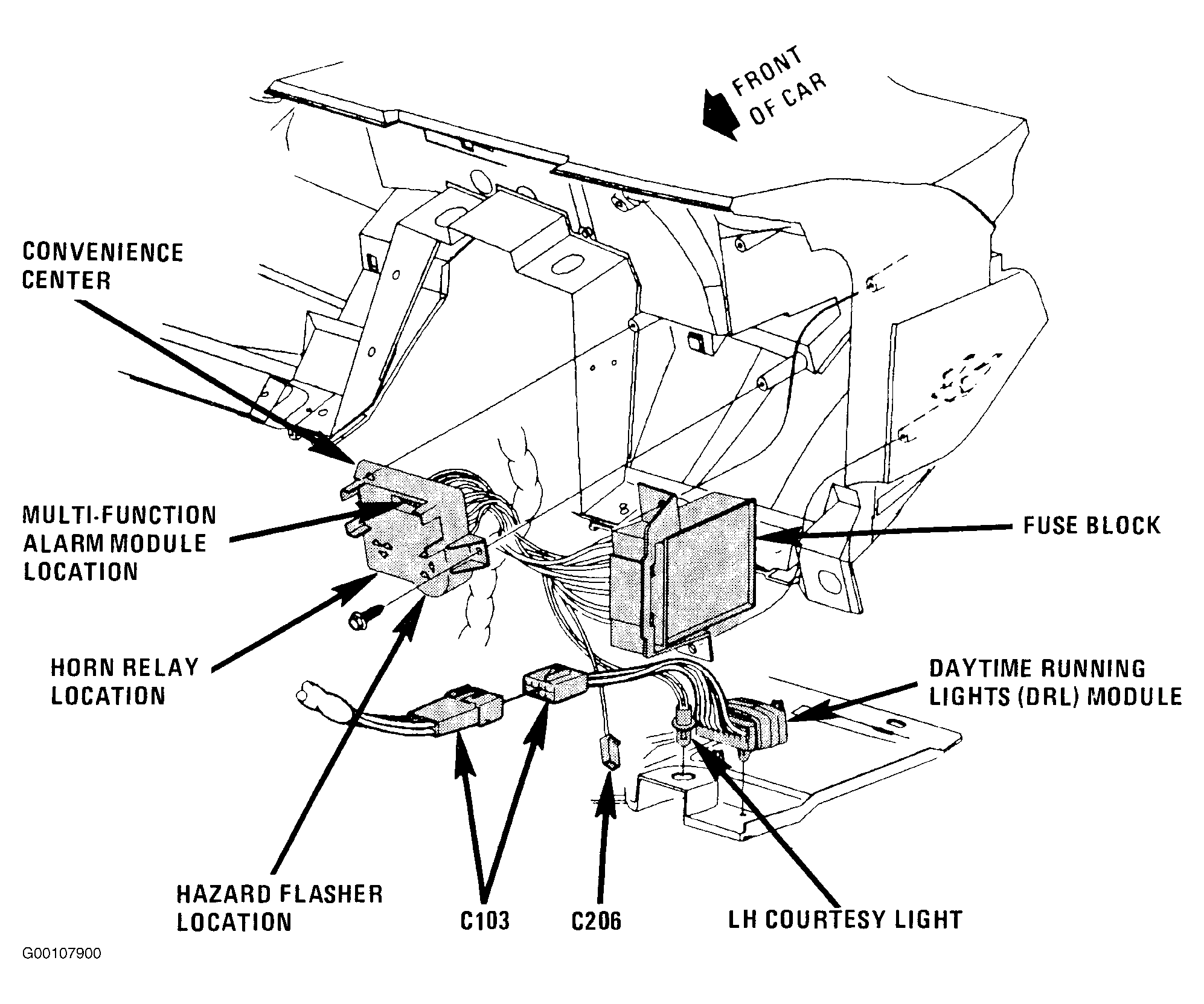

Fuse Block	Behind Instrument Panel, Left Of Steering Column. See Fig 6

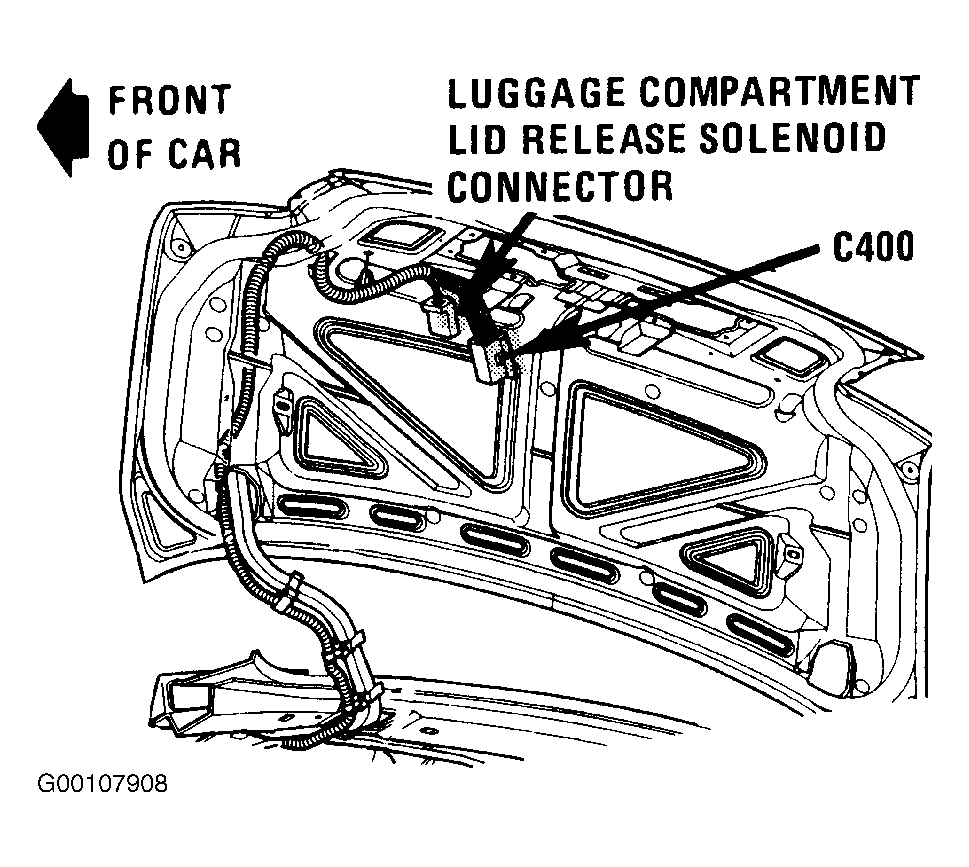

Luggage Compartment Lid Release Solenoid	Under Left Rear Of Luggage Compartment Lid. See Fig 7

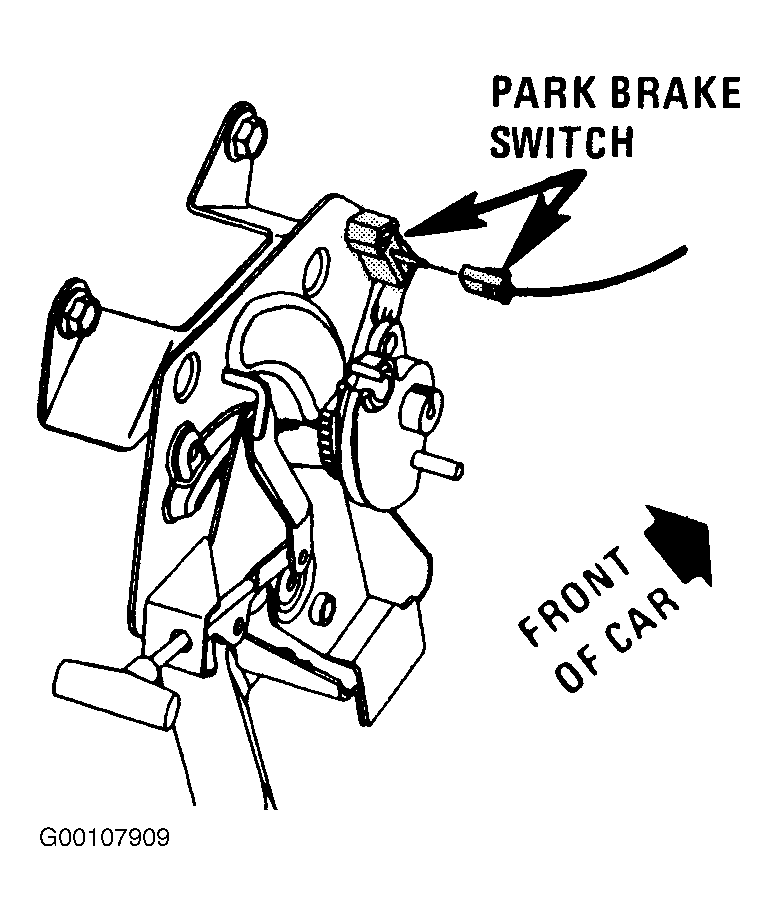

Park Brake Switch	Under Left Side Of Instrument Panel, Near Shroud. See Fig 8

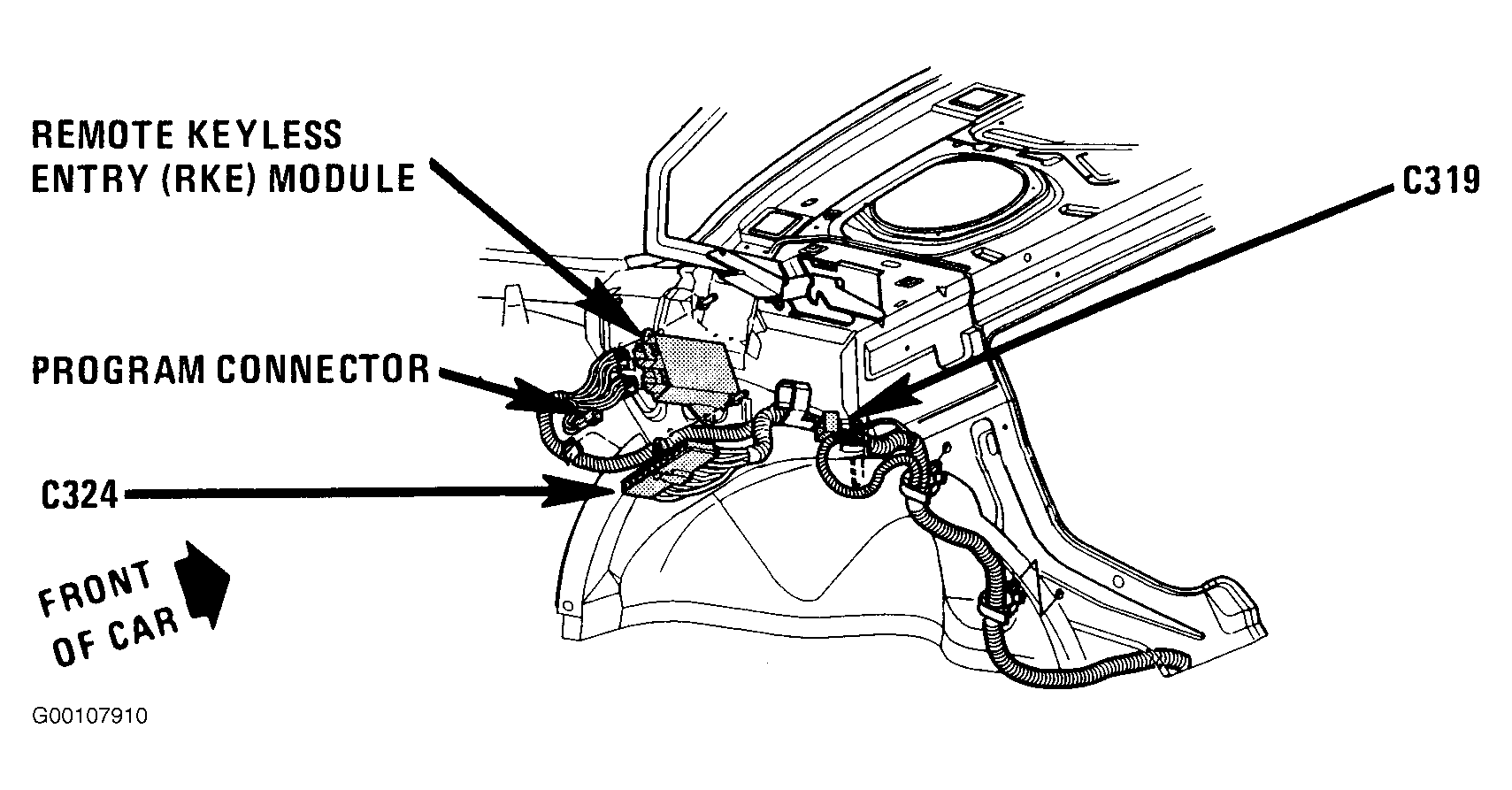

Program Connector	Left Side Of Luggage Compartment, Taped To Harness Above Wheelhouse. See Fig 9
Remote Keyless Entry (RKE) Module	Left Front Of Luggage Compartment, Above Wheelhouse. See Fig 9

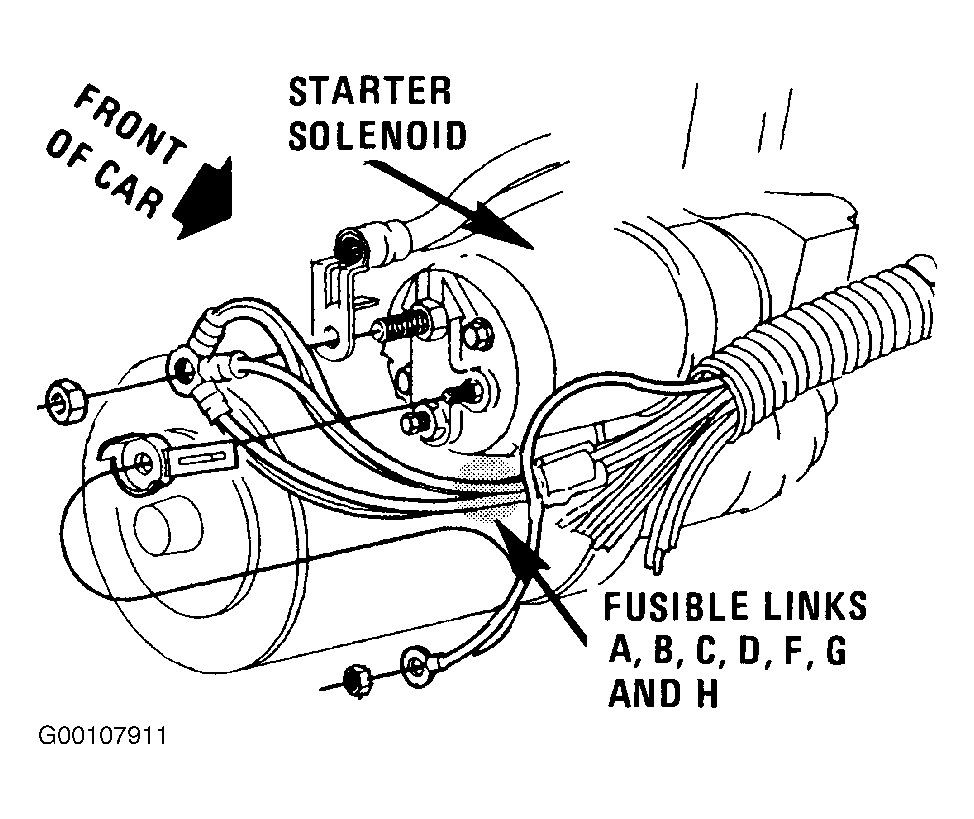

Starter Solenoid	Lower Front Of Engine, On Top Of Starter Motor. See Fig 10

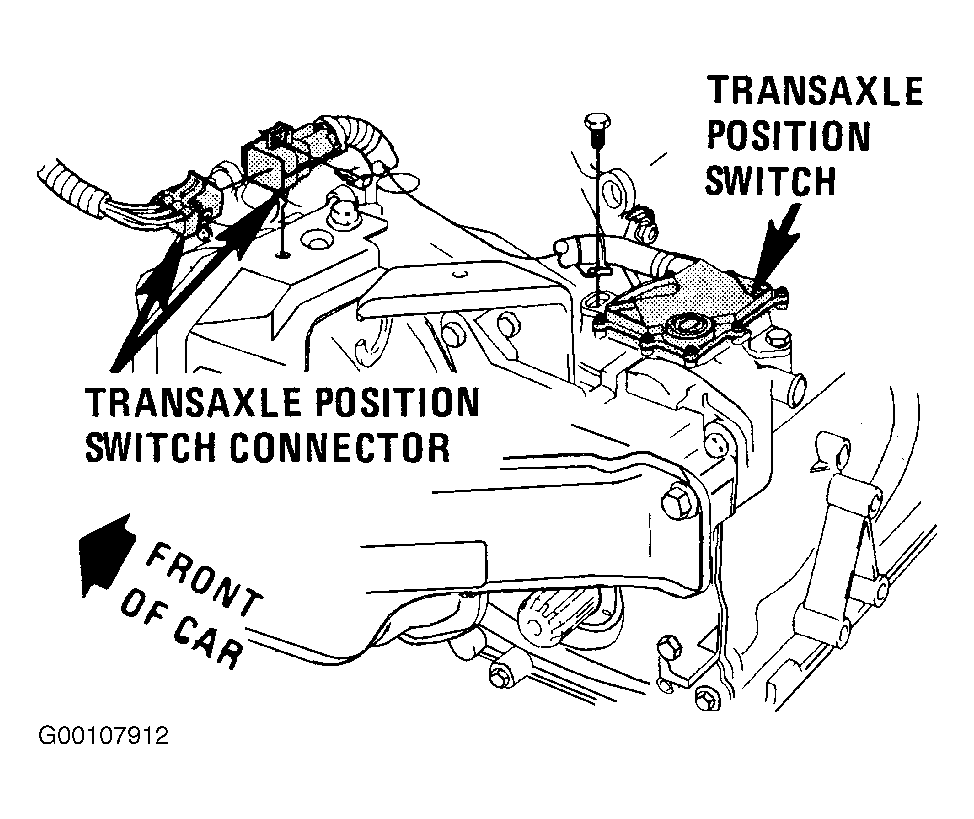

Transaxle Position Switch	Top Left Rear Of Transaxle. See Fig 11

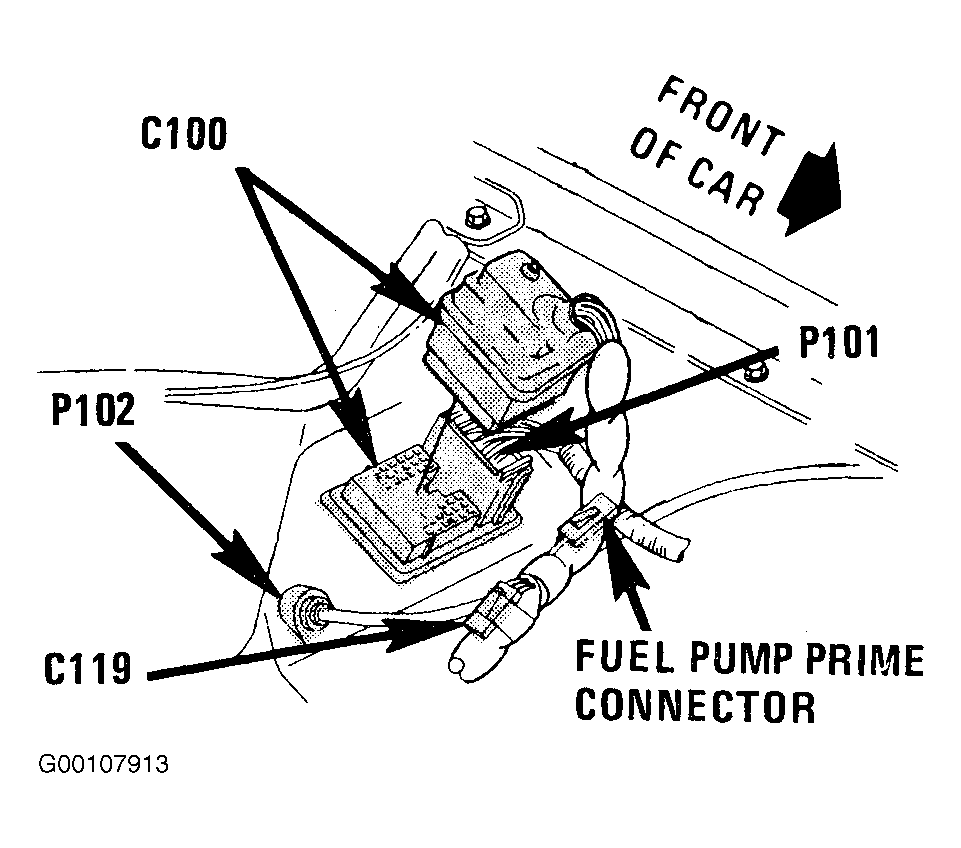

C100 (30 cavities)	Under Left Front Of Dash. See Fig 12
C204 (24 cavities)	Under Left Side Of Instrument Panel, Near Shroud. See Fig 1

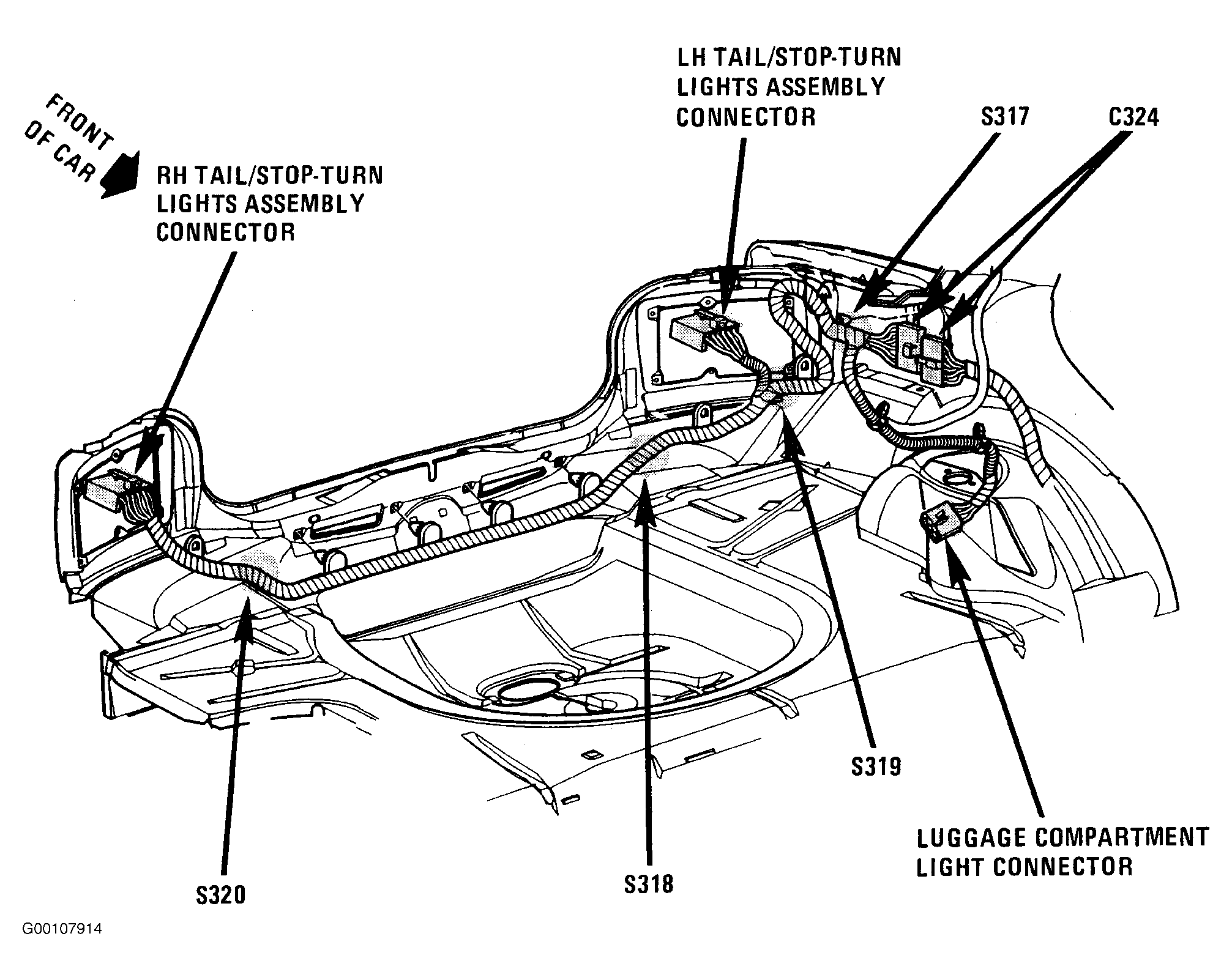

C324 (10 cavities)	Left Front Corner Of Luggage Compartment. See Fig 9 and Fig 13

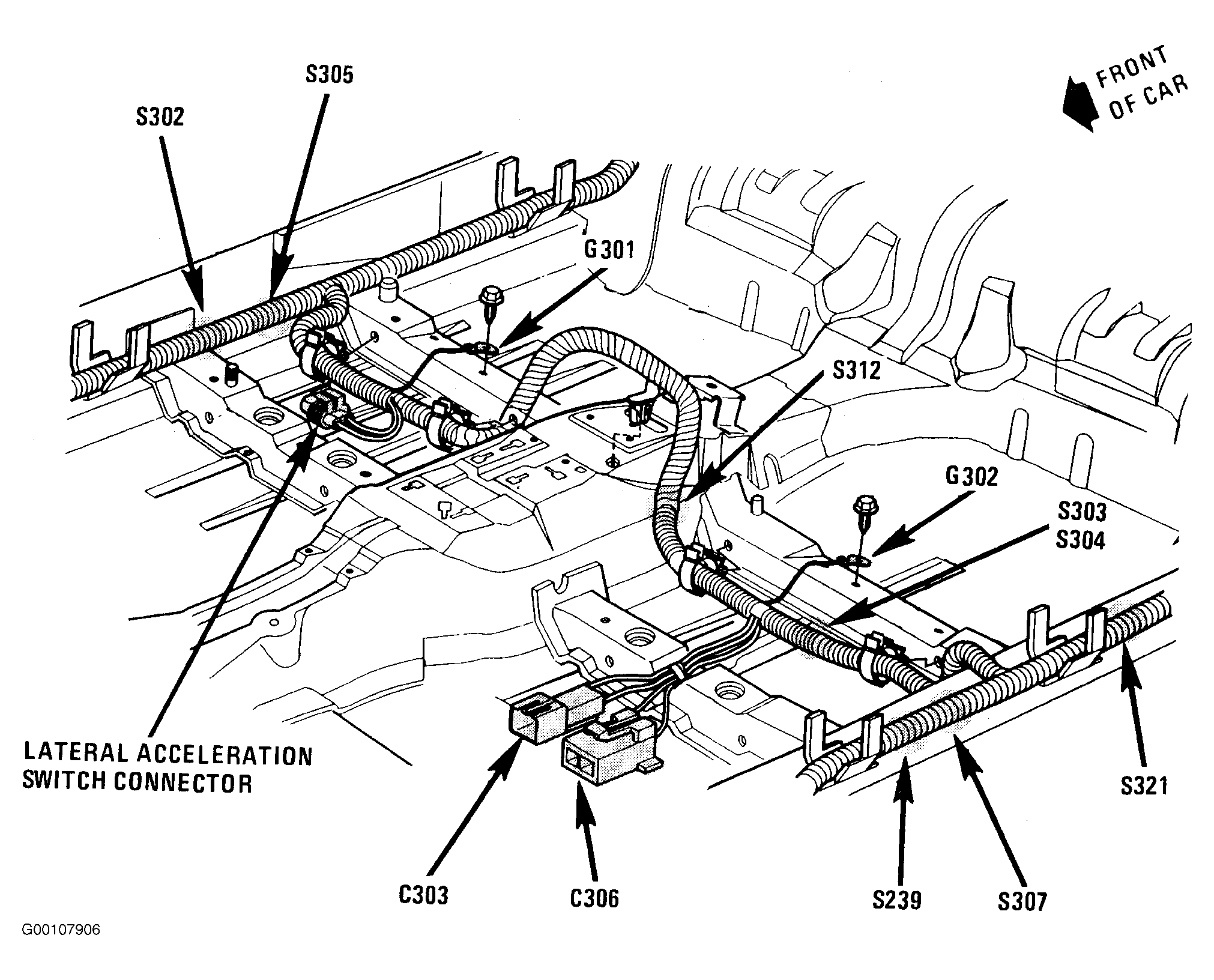

G302	Under Left Front Seat. See Fig 14

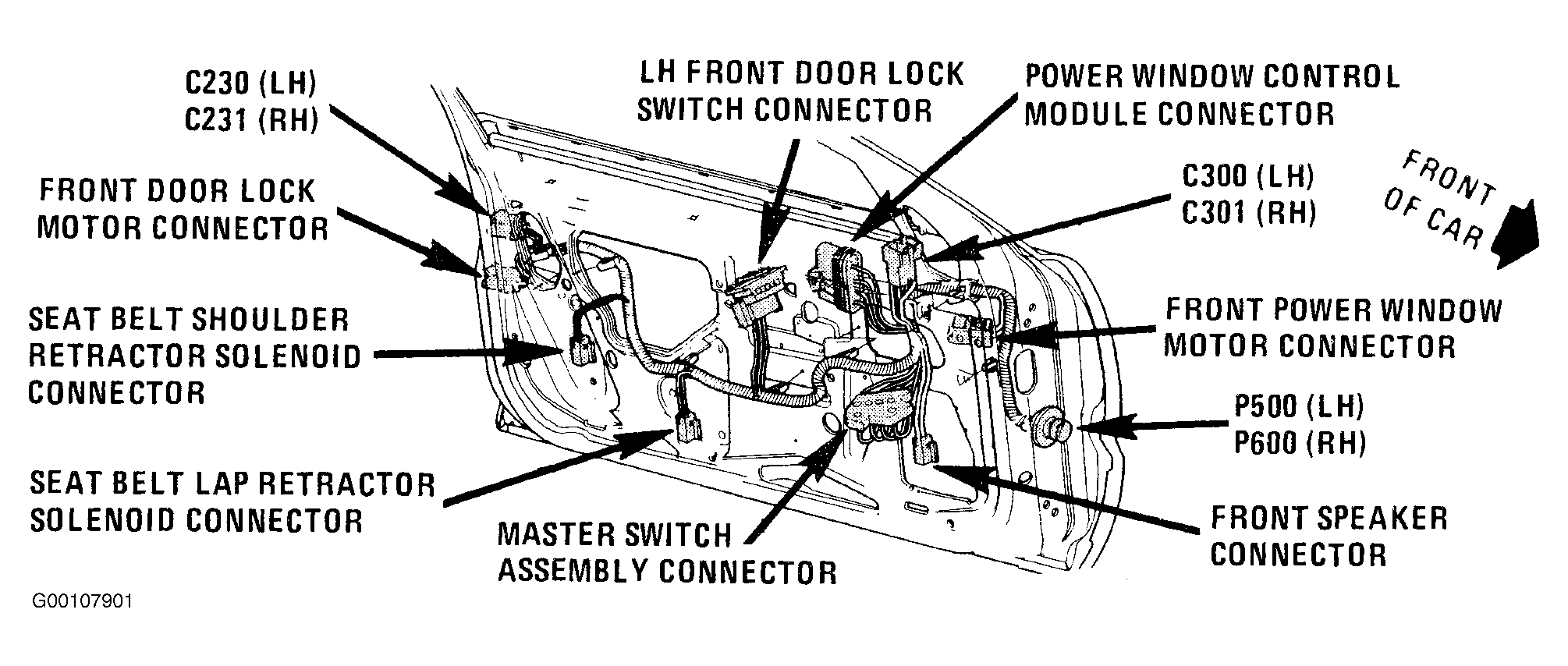

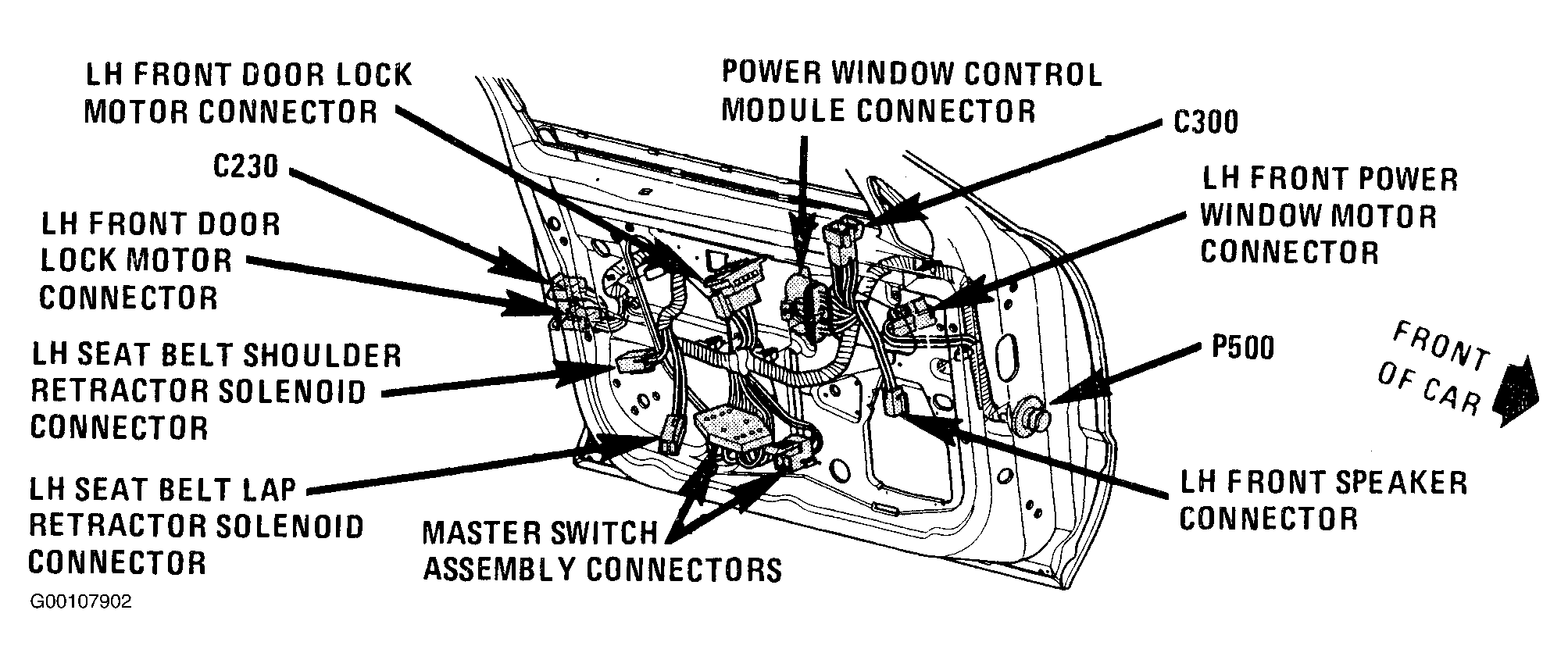

P500	Left Front Door Jamb. See Fig 2

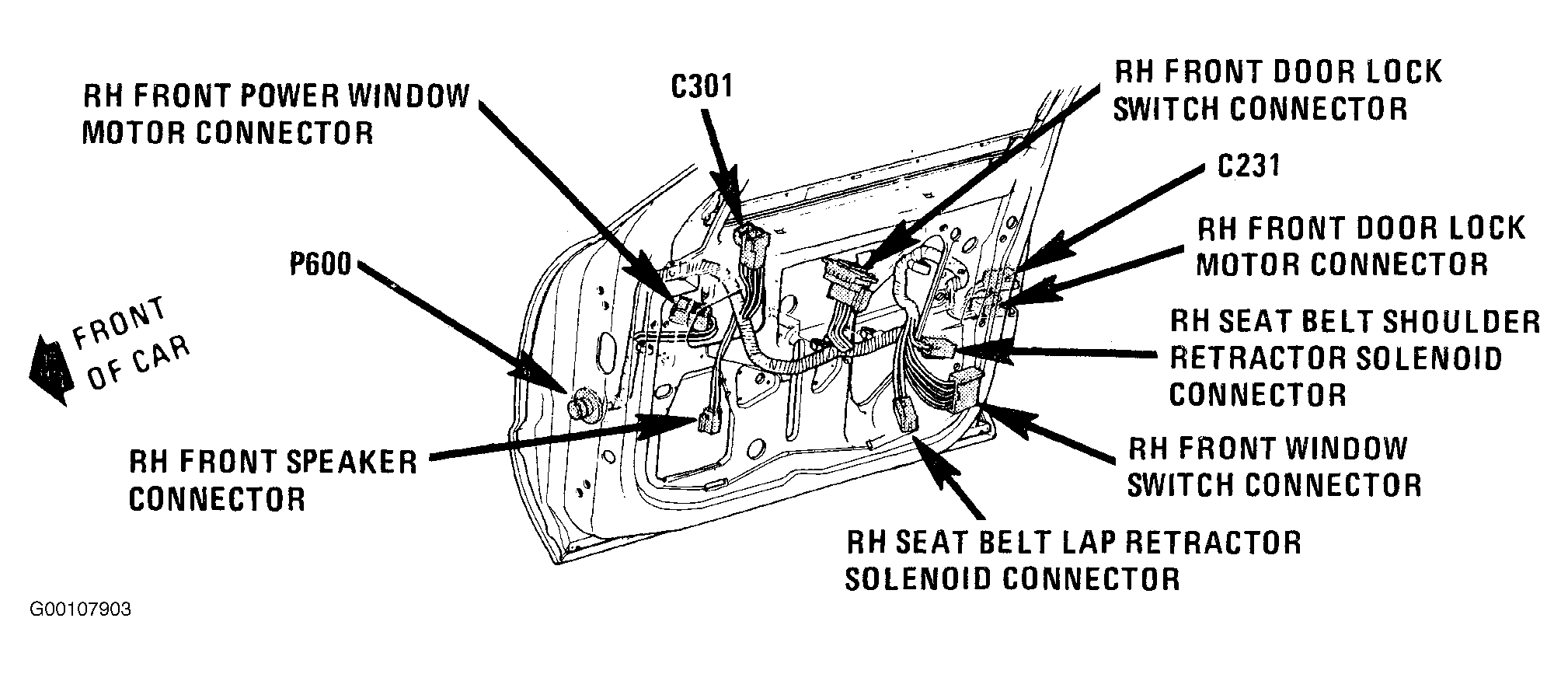

P600	Right Front Door Jamb. See Fig 2

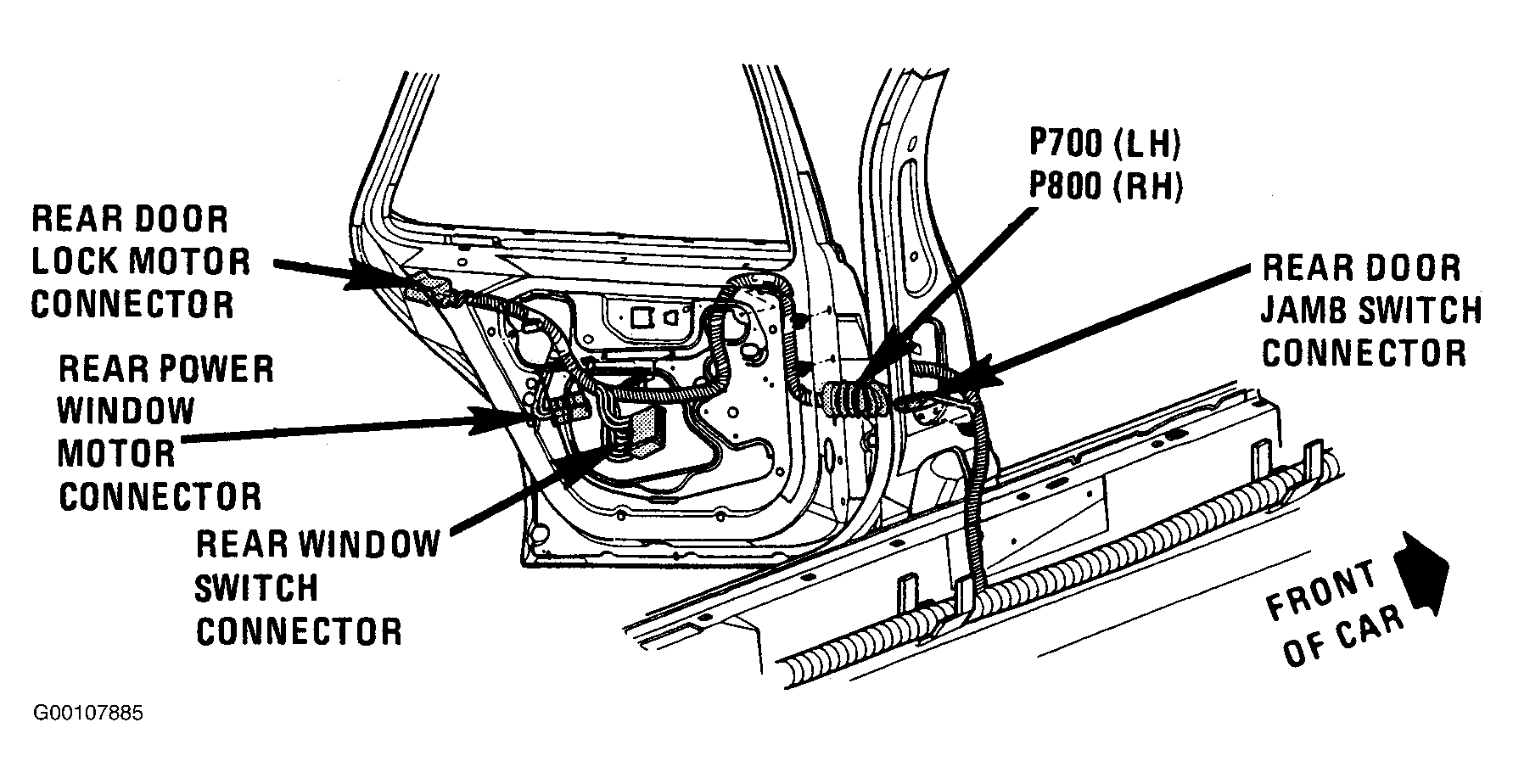

P700	Left Rear Door Jamb. See Fig 5
P800	Right Rear Door Jamb. See Fig 5
S201	Instrument Panel Harness, Near Fuse Block. See Fig 6
S203	Instrument Panel Harness, Near Fuse Block. See Fig 6

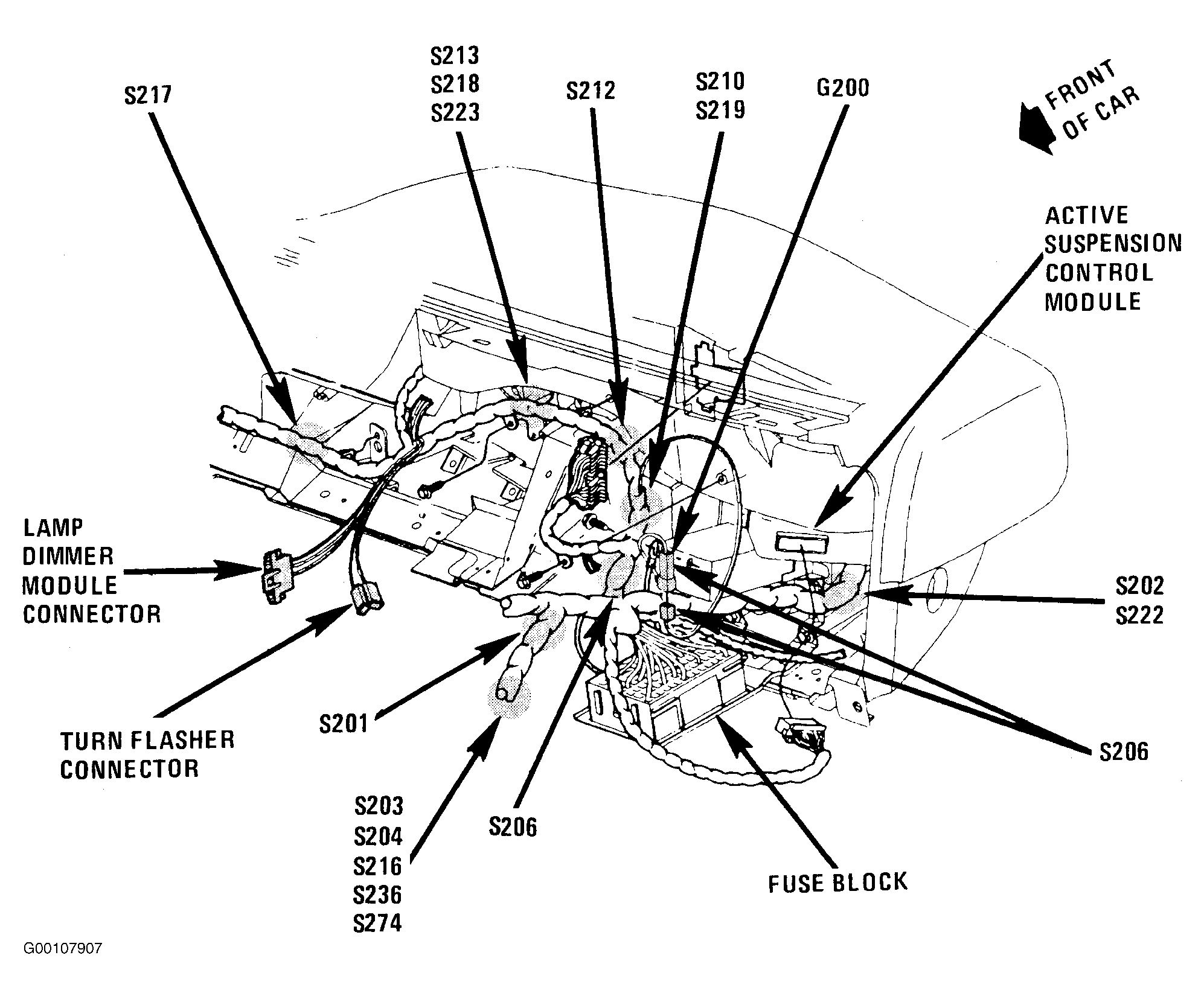

S212	Instrument Panel Harness, Above Right Side Of Instrument Cluster. See Fig 15
S213	Instrument Panel Harness, Above Steering Column. See Fig 6
S219	Instrument Panel Harness, Left Side Of Steering Column. See Fig 15
S239	Body Harness, At Left Front Door Sill. See Fig 14
S282	Body Harness, At Left Front Door Sill. See Fig 1
S300	Body Harness, Near Bottom Of Left Shroud. See Fig 1
S301	Body Harness, At Left Front Door Sill. See Fig 1
S303	Body Harness, Below Left Front Seat. See Fig 14
S304	Body Harness, Below Left Front Seat. See Fig 14
S307	Body Harness, At Left Front Door Sill. See Fig 14
