Connector Identification

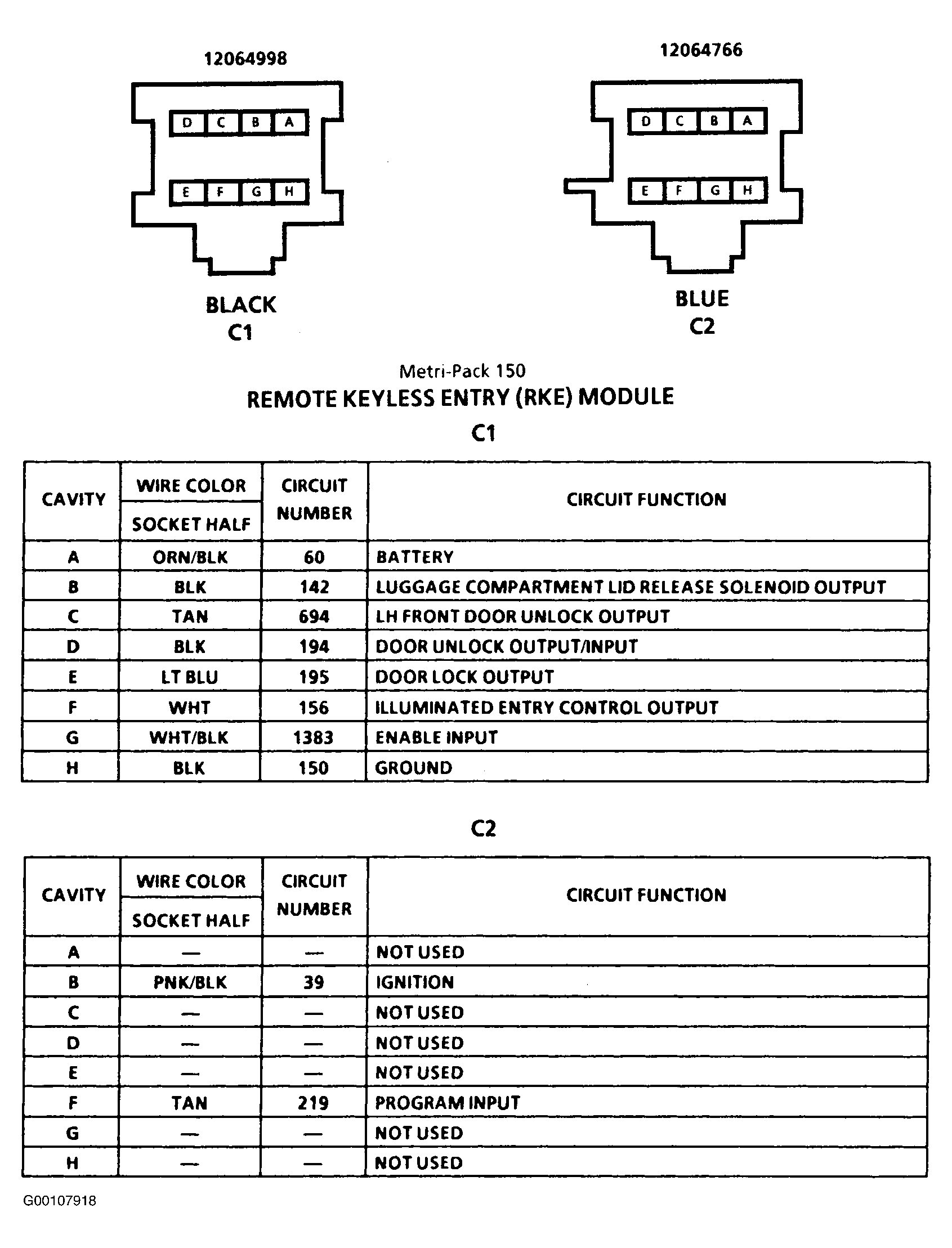

Fig 1: Identifying Remote Keyless Entry Module Connectors
G00107918Courtesy of GENERAL MOTORS CORP.
