Component Locations

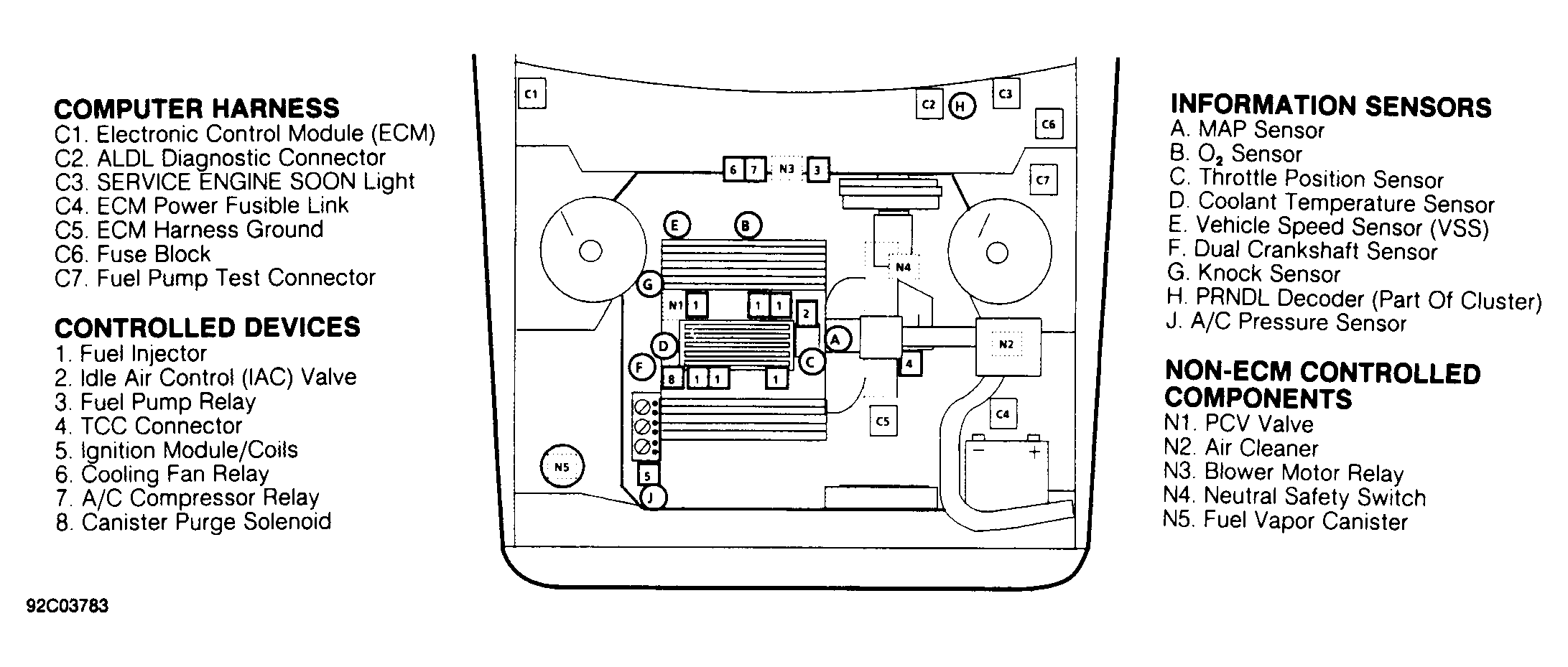

Fig 1: Component Locations (2.3L VIN A, D & 3)

Courtesy of GENERAL MOTORS CORP.

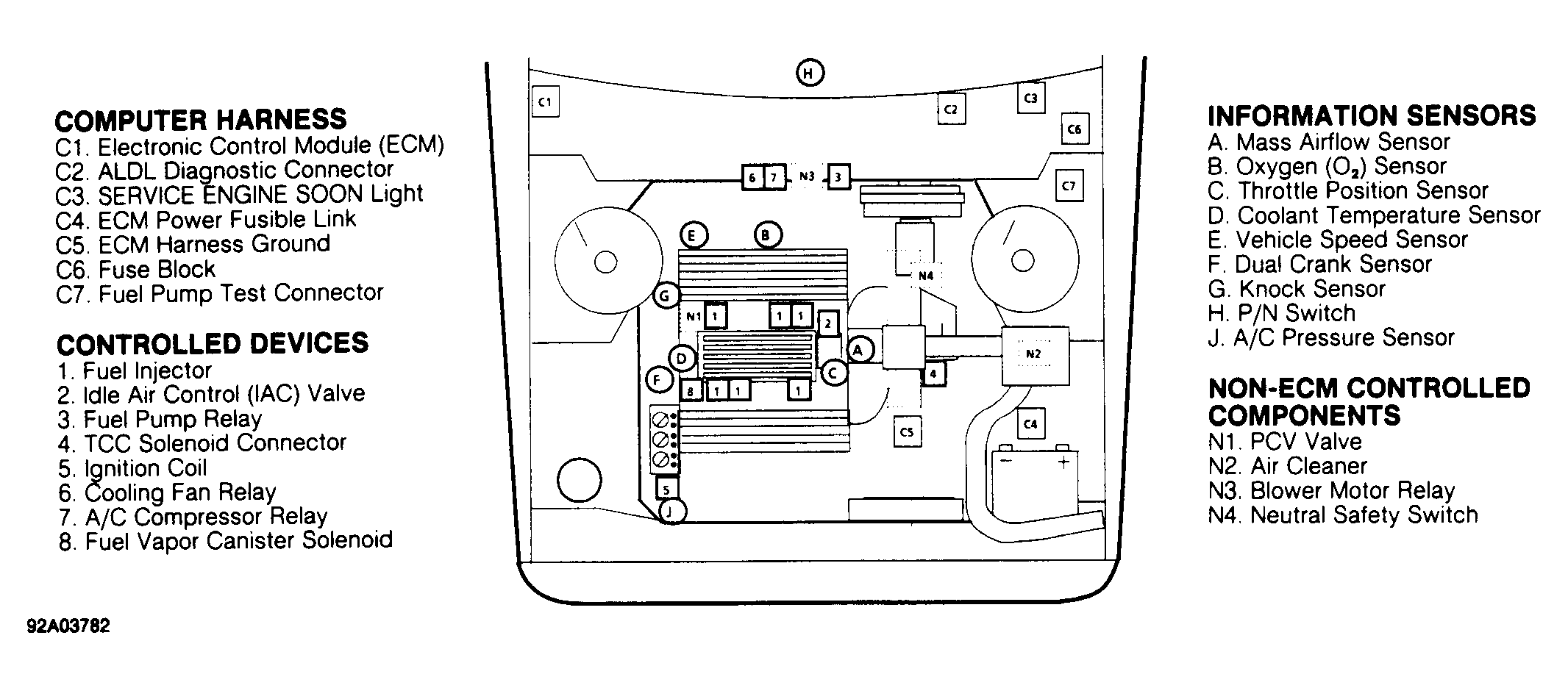

Fig 2: Component Locations (3.3L VIN N - Achieva & Grand Am)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Component Locations (3.3L VIN N - Skylark)

Courtesy of GENERAL MOTORS CORP.
