Test E: Left Front Power Window Does Not Operate, All Other Power Windows Operate

For testing procedure, see Fig 1 .

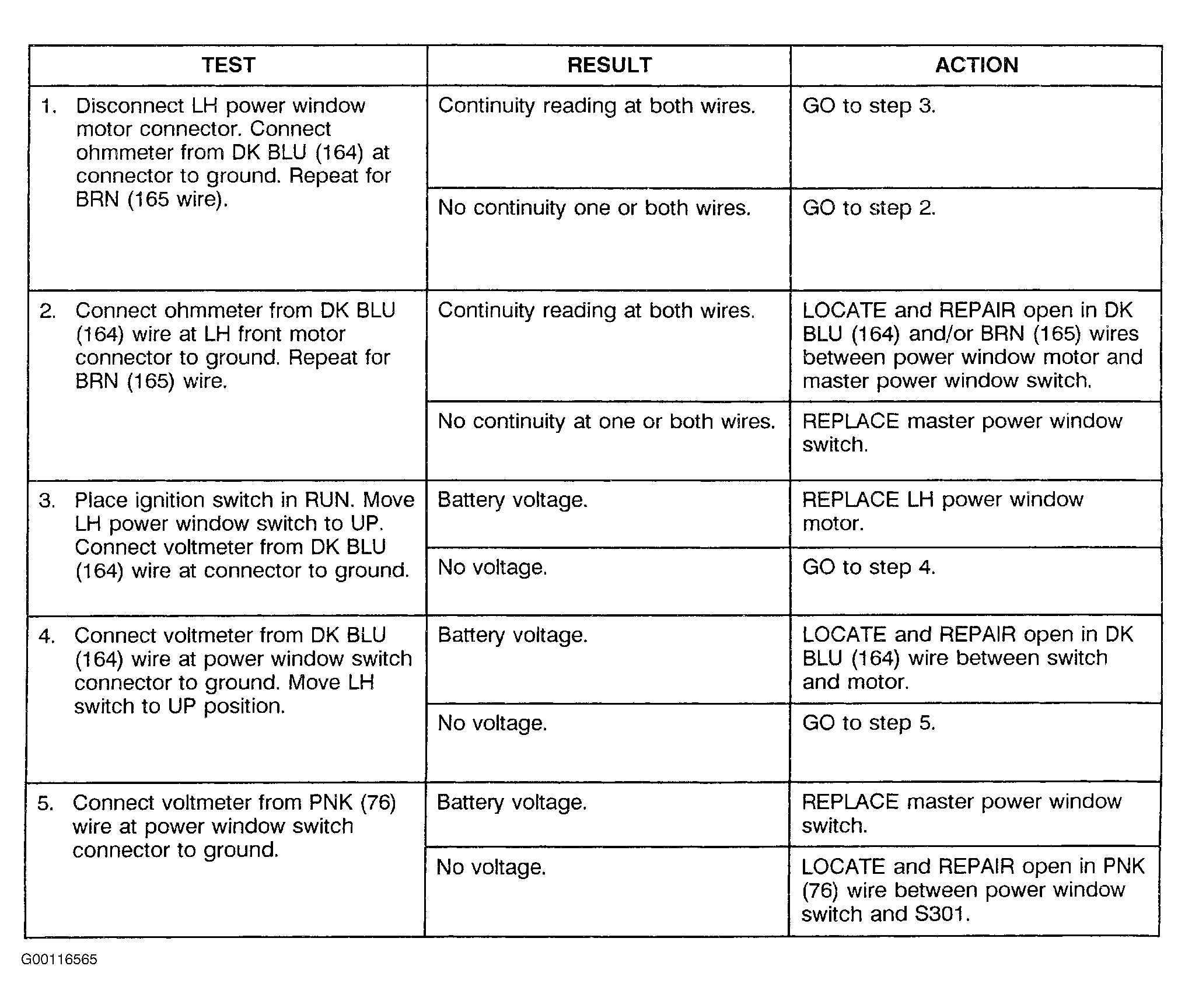

Fig 1: Left Front Power Window Does Not Operate, All Other Power Windows Operate
G00116565Courtesy of GENERAL MOTORS CORP.
