System Operation Check

  1. Use the System Operation Check as a guide to normal operation. See Fig 1 .
  2. If problem exists, repair by symptom. See Figure under SYSTEM TESTS.

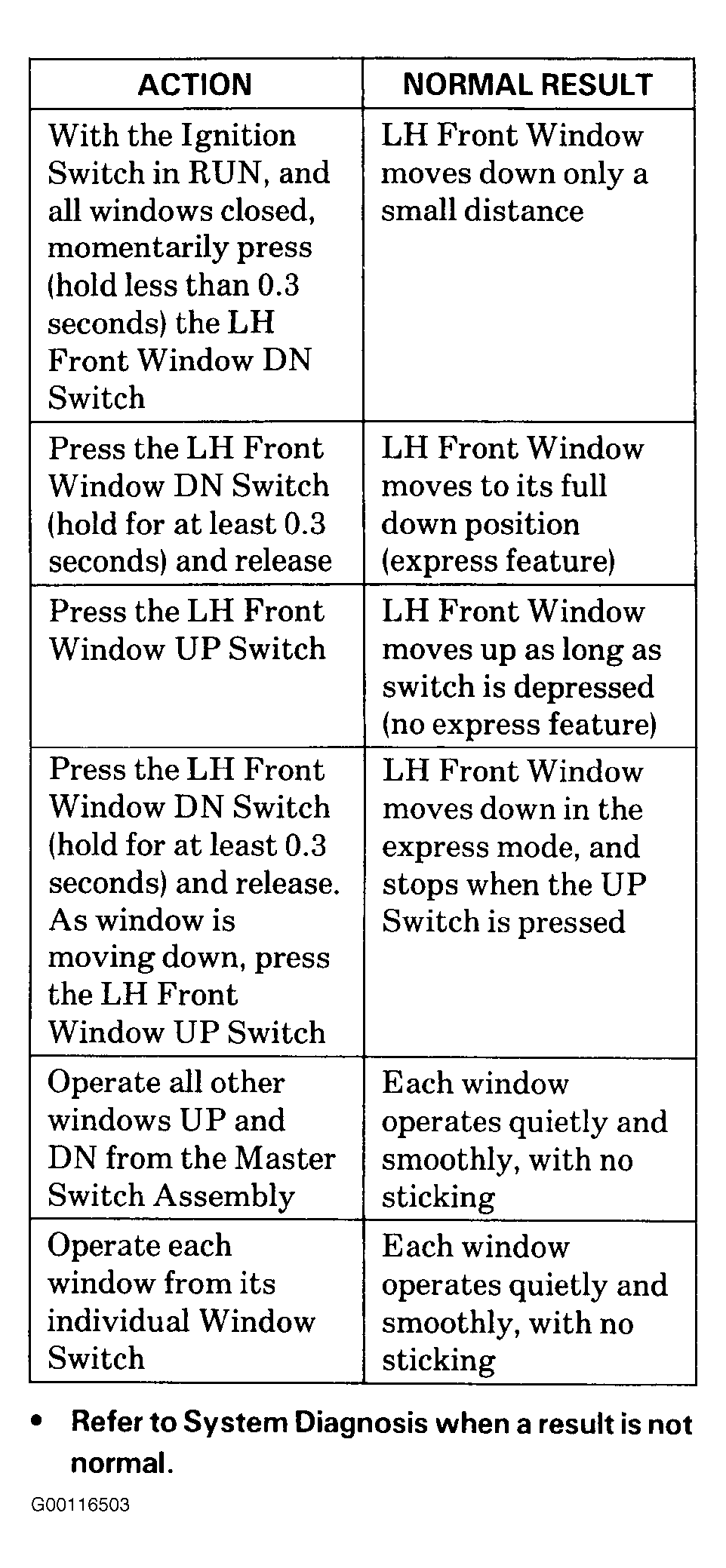

Fig 1: System Operation Check
G00116503Courtesy of GENERAL MOTORS CORP.
