Converter Lock-Up Signal From ECM

Warm engine to operating temperature. Raise vehicle and support drive wheels. Support suspension where necessary to prevent damage to drive axles.
Connect a test light to battery voltage. Touch TCC control driver terminal with test light. On some vehicles this is terminal "F" of the ALDL connector. See Fig 1 & Fig 2 . Accelerate vehicle to 45 MPH and note test light. If test light does not illuminate, problem is a faulty ECM connector or ECM.

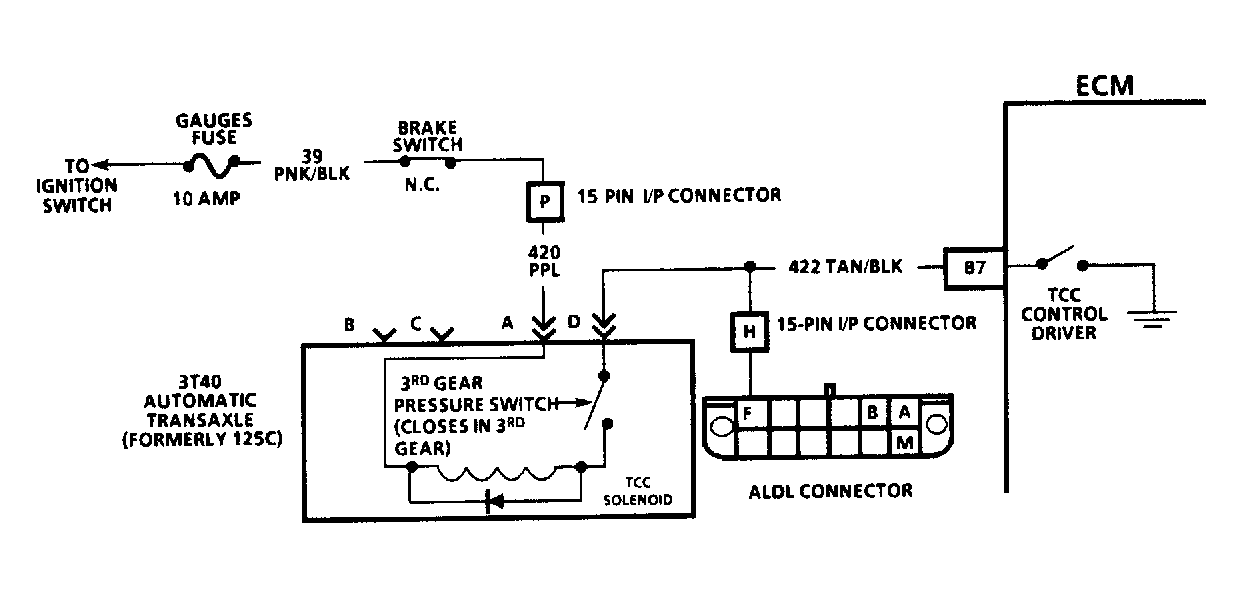

Fig 1: Converter Clutch Schematic (2.5L)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Converter Clutch Schematic (3.3L)

Courtesy of GENERAL MOTORS CORP.

SHIFT LIGHT CIRCUIT IDENTIFICATION

Application	ECM Terminal
Century, Cutlass Ciera Cutlass Cruiser	B7F

Fig 3: Shift Light Schematic

Courtesy of GENERAL MOTORS CORP.
