Installation (Front)
- Install new motor to backplate.

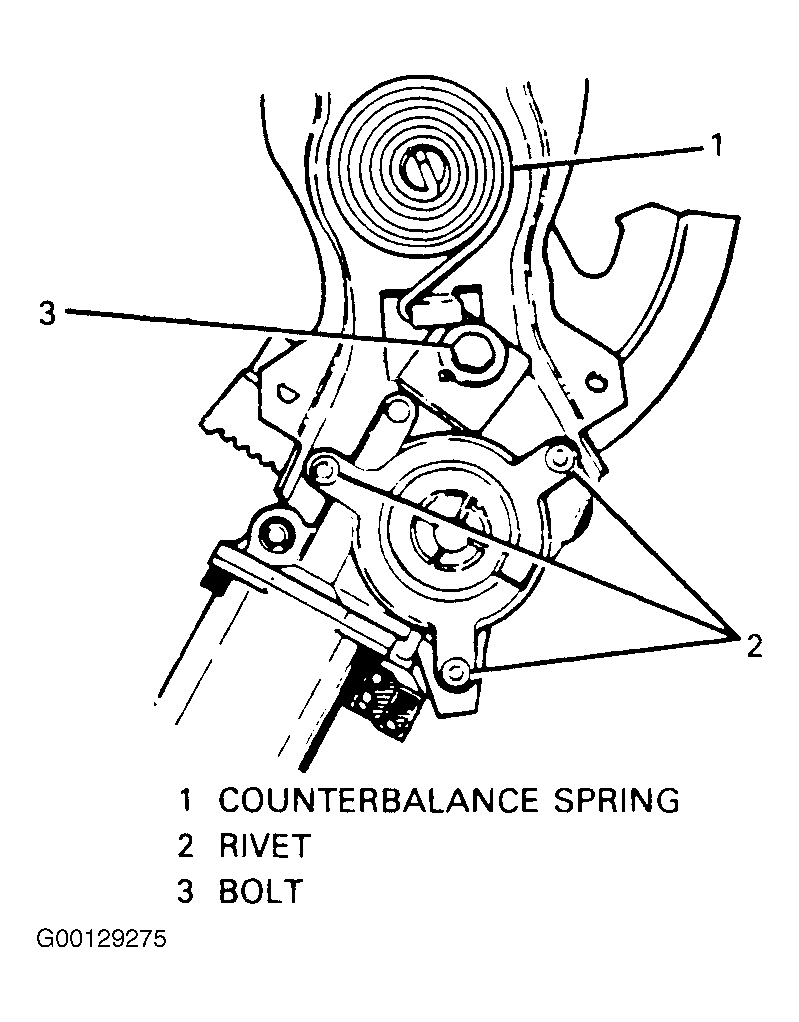

- Install rivet to motor at bottom location using a ball peen hammer. See Fig 1 .
- Install clamp motor to backplate using locking pliers.
- Remove bolt and nut securing sector gear.
- Supply power to regulator to gain access for remaining two motor rivets.
- Install 2 rivets.
- Remove locking pliers
- Install window regulator. See WINDOW REGULATOR .
