Test C: Express Down Window Module

To perform the following test, see Fig 1 .

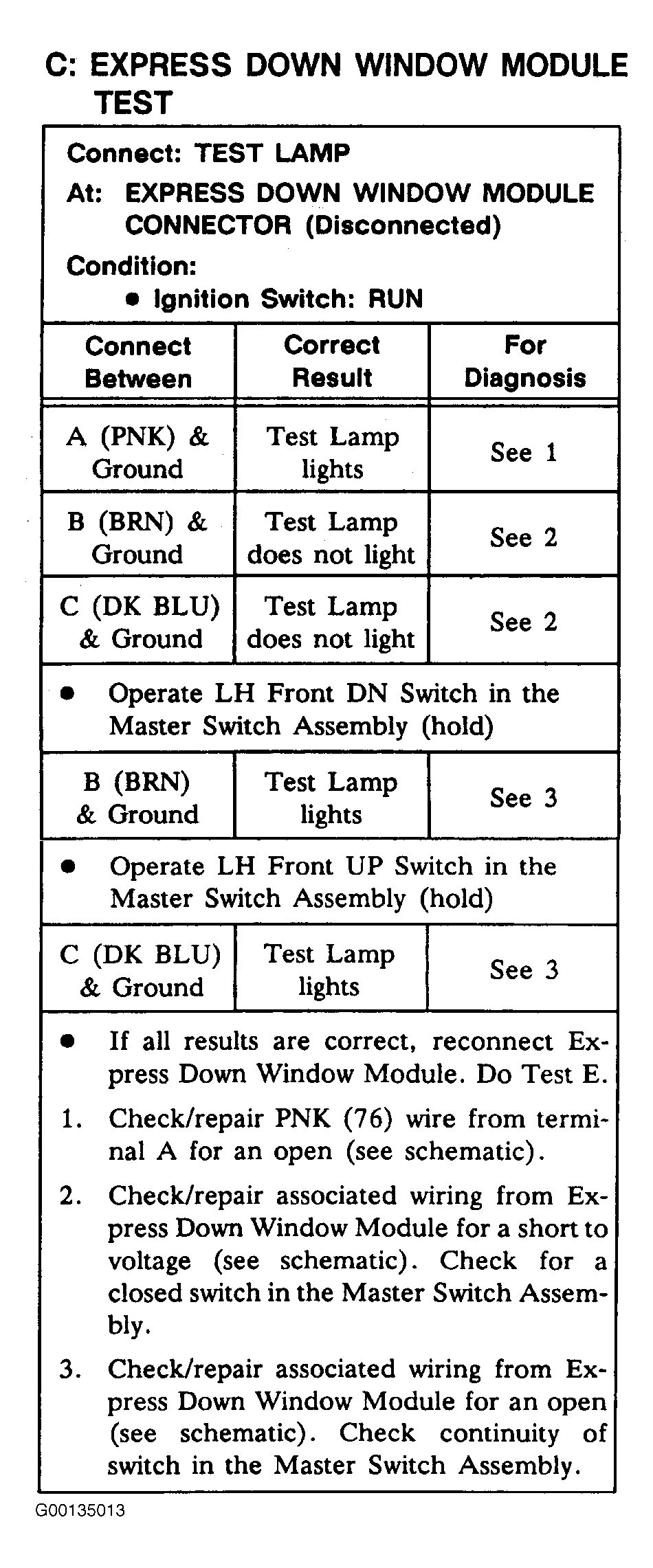

Fig 1: Test C: Express Down Window Module

G00135013

Courtesy of GENERAL MOTORS CORP.
