Home › Oldsmobile › 1992 › Eighty-Eight Royale LS › Repair and Diagnosis › Body & Frame › Power Windows › System Tests › Test B: Master Switch Assembly

Test B: Master Switch Assembly

To perform the following test, see Fig 1 .

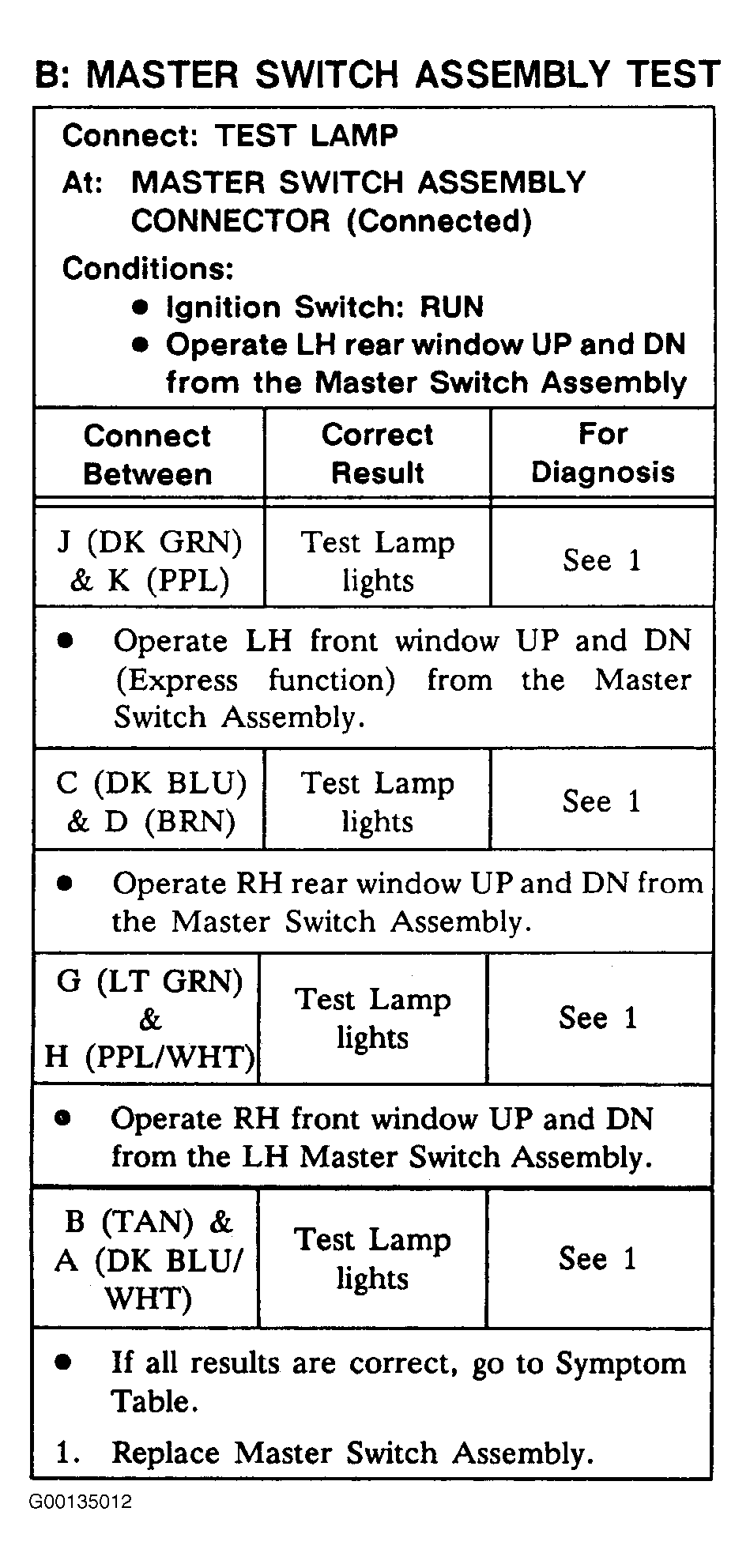

Fig 1: Test B: Master Switch Assembly
G00135012Courtesy of GENERAL MOTORS CORP.
