Component Locations

COMPONENT LOCATIONS

Component	Location
I/P Fuse Block	Behind Left Side Of I/P, Behind Trim Panel. See Fig 1 .
C324	Below Left Front Seat.
C326	Below Right Front Seat.
C332	Right Front Door Sill, Taped To Composite Harness. See Fig 2 .
C340	Left Front Door Sill, Taped To Composite Harness. See Fig 2 .
C342	Below Left Front Seat. See Fig 2 .
C344	Below Right Front Seat. See Fig 2 .
G202	Middle Of Left Shroud. See Fig 3 .
G203	Middle Of Right Shroud. See Fig 4 .
S218	Composite Harness, Top Of Right Shroud. See Fig 4 .
S225	Composite Harness, Bottom Of Left Shroud. See Fig 3 .
S227	Composite Harness, Top Of Left Shroud. See Fig 3 .
S288	Composite Harness, Bottom Of Left Shroud. See Fig 3 .

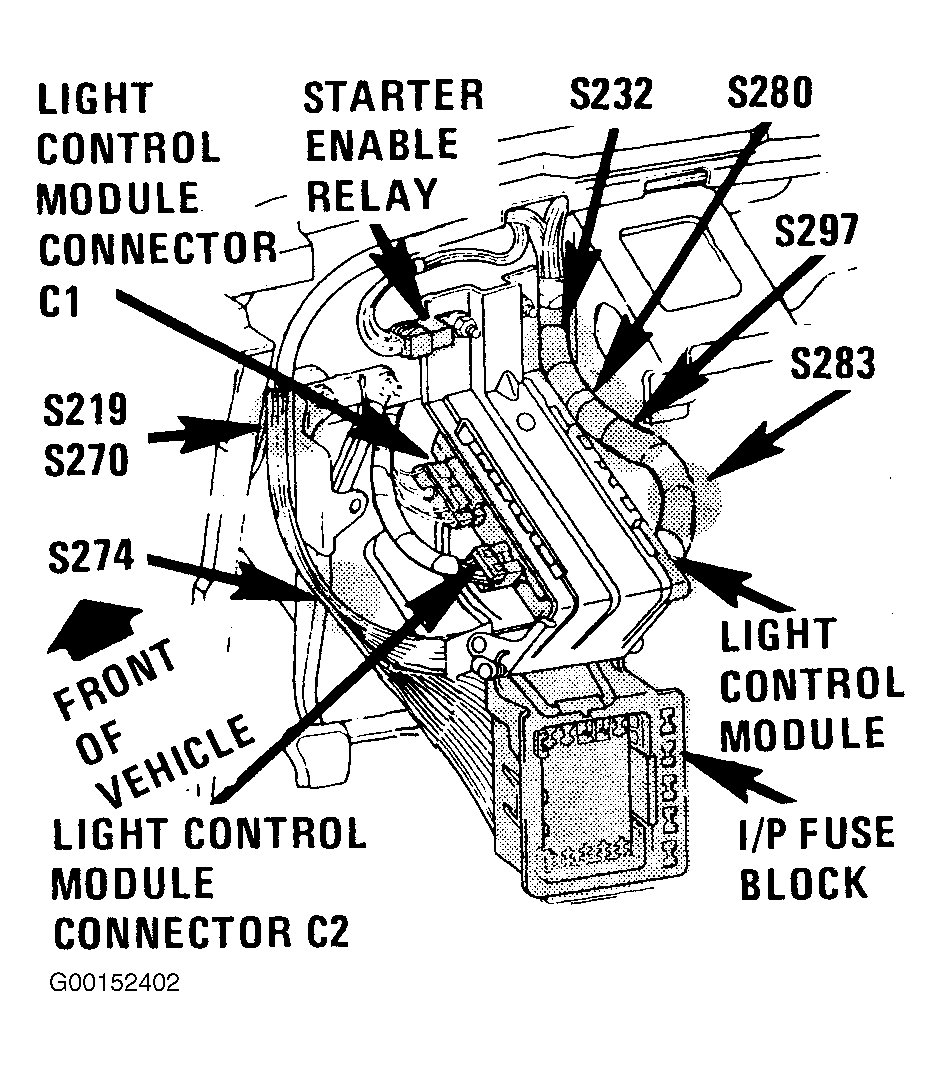

Fig 1: Locating I/P Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

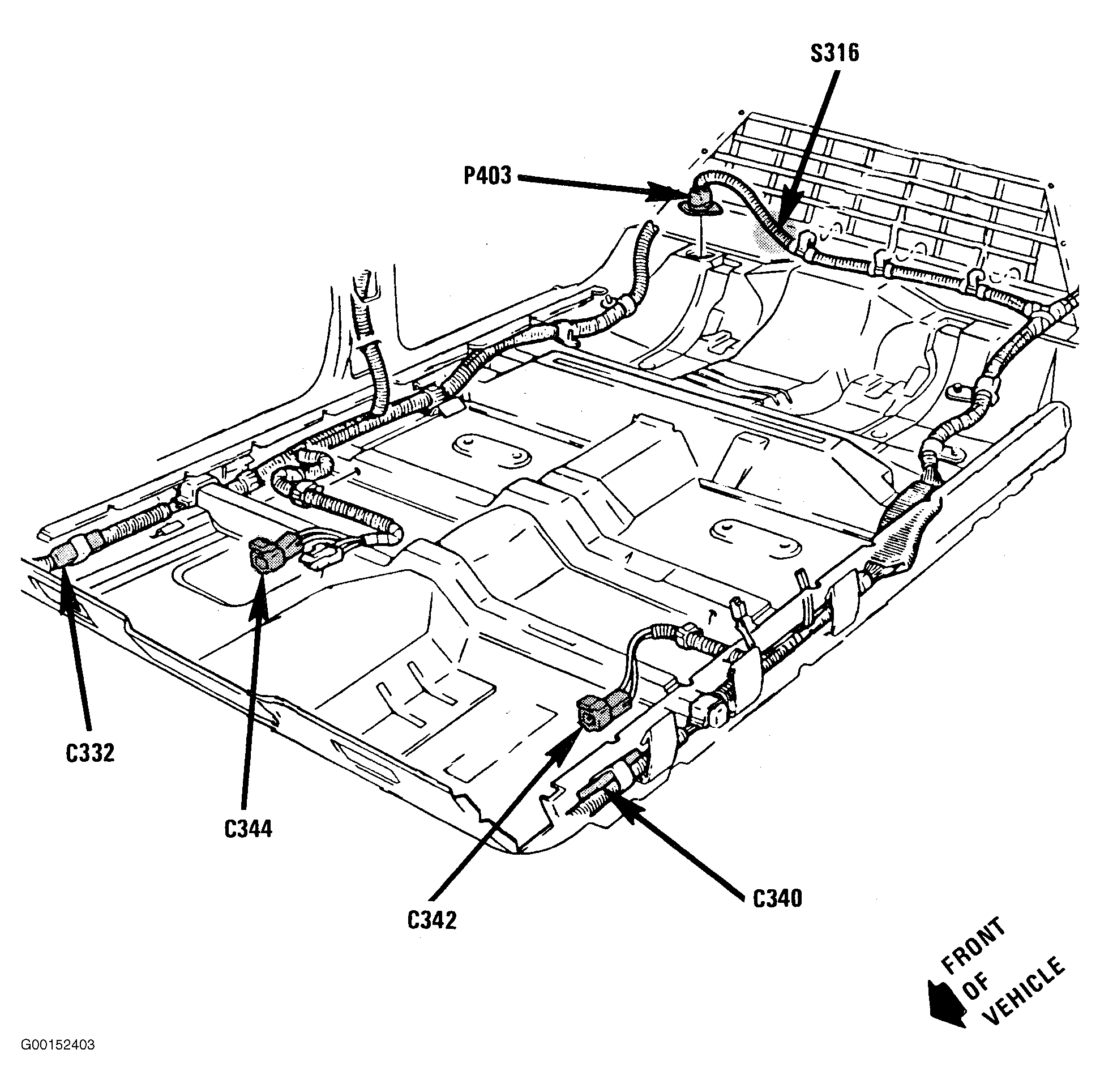

Fig 2: Locating Connectors C332, C340, C342 & C344

Courtesy of GENERAL MOTORS CORP.

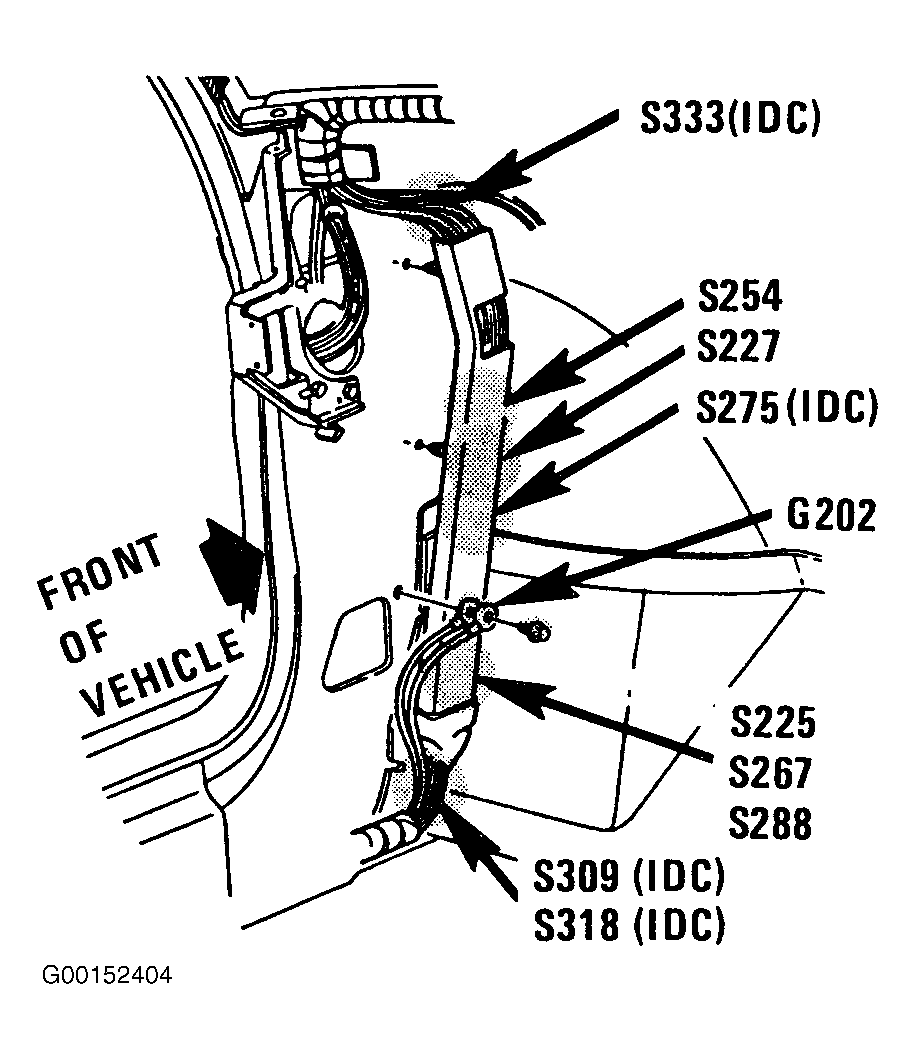

Fig 3: Locating Ground G202, & Splices S225, S227 & S288

Courtesy of GENERAL MOTORS CORP.

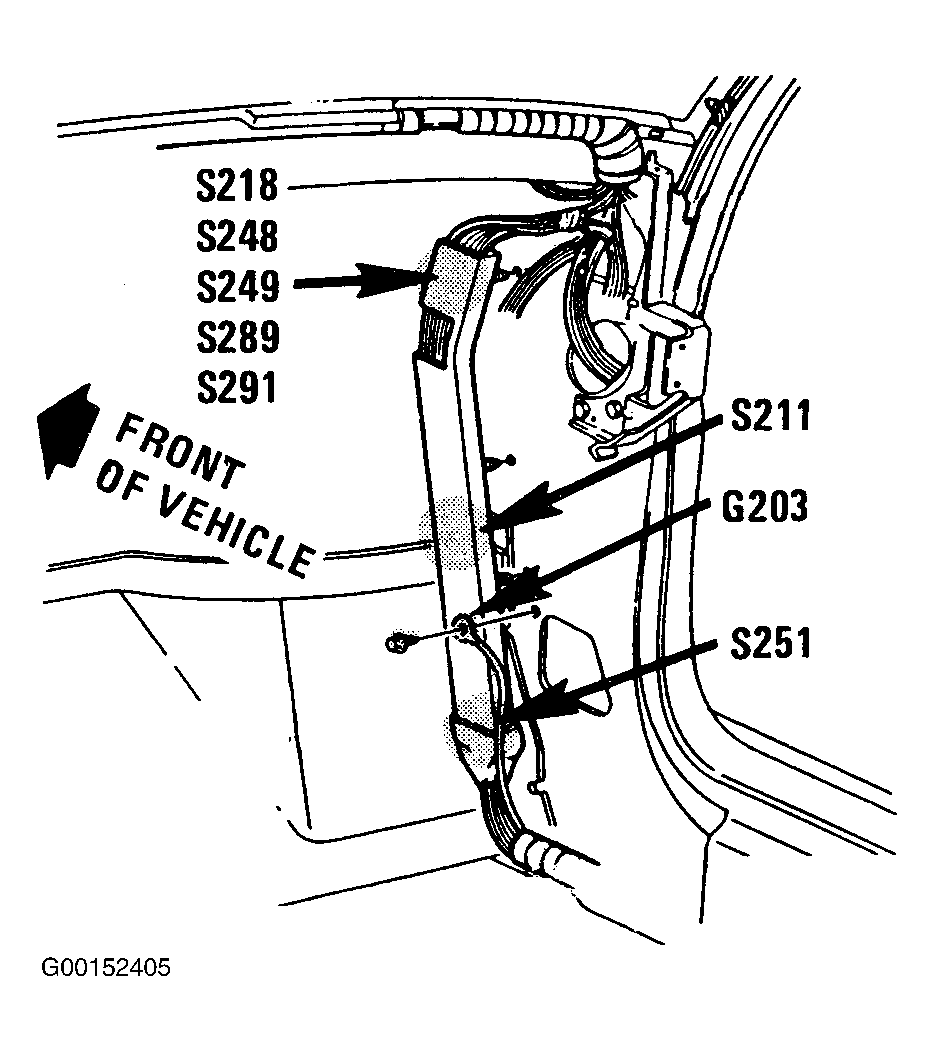

Fig 4: Locating Ground G203 & Splice S218

Courtesy of GENERAL MOTORS CORP.
