Trim Panel: Installation

  1. Connect electrical connector.
  2. Install trim panel and retainers.
  3. Install door lock switch plate. See POWER DOOR LOCK SWITCH  .
  4. Install courtesy lamp. See COURTESY LAMP  .
  5. Install armrest switch plate. See SWITCH PLATE  .
  6. Connect negative battery cable.

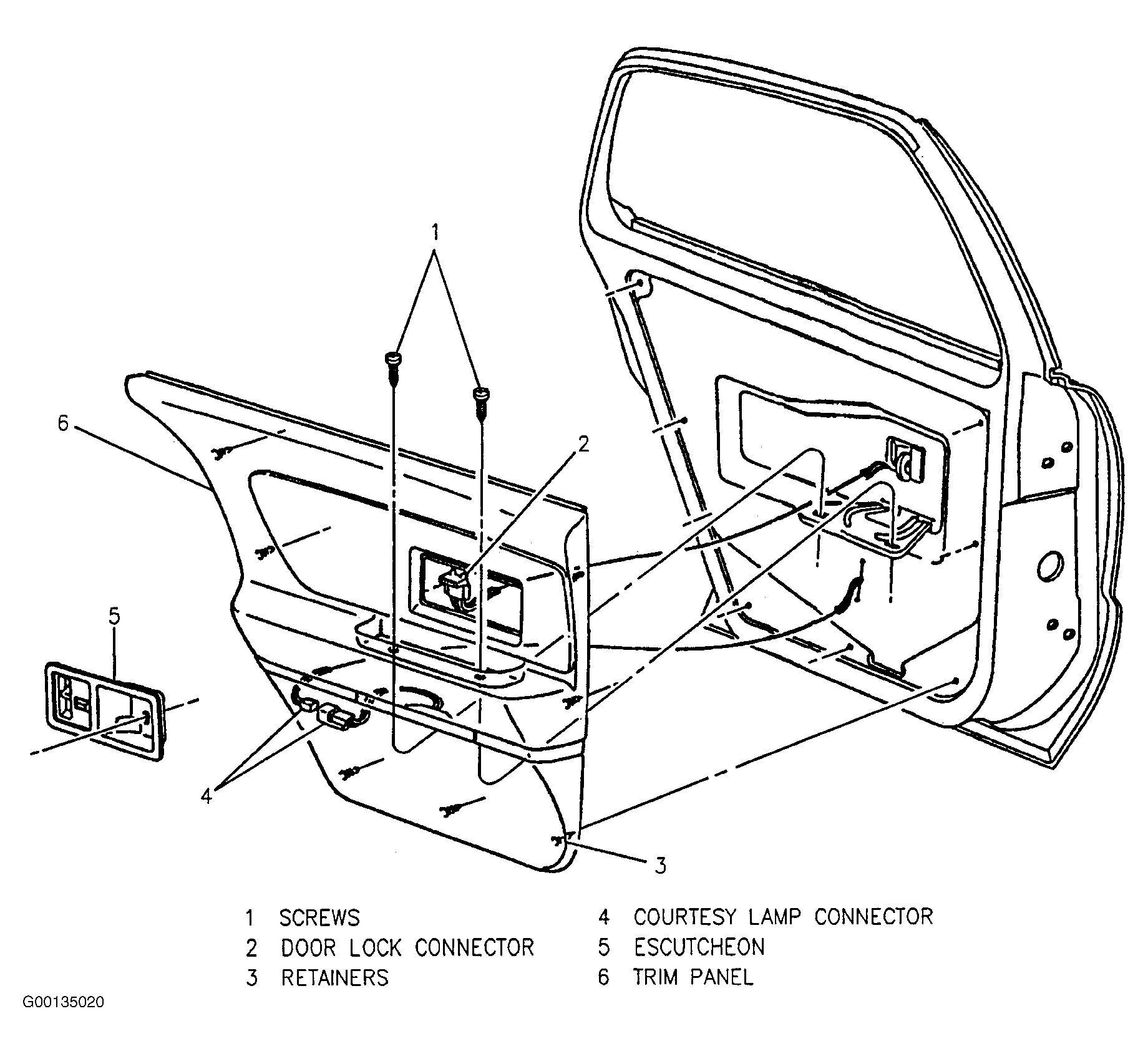

  1. Install trim panel and retainers. See Figure .
  2. Install two screws.
  3. Install switch plate. See SWITCH PLATE  .
  4. Connect negative battery cable.
