Wiring Diagrams

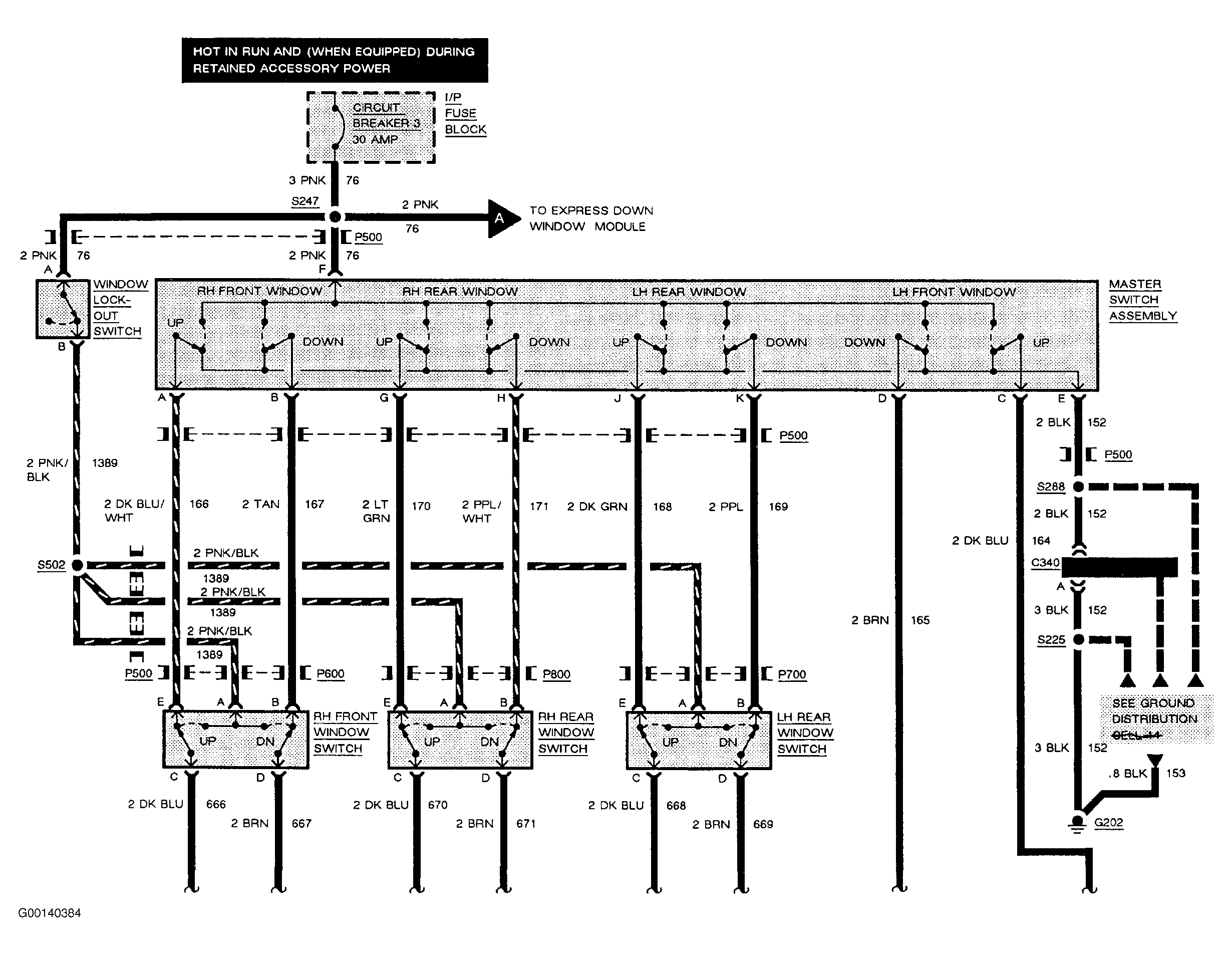

Fig 1: Power Window wiring Diagram (1 Of 2)
G00140384Courtesy of GENERAL MOTORS CORP.

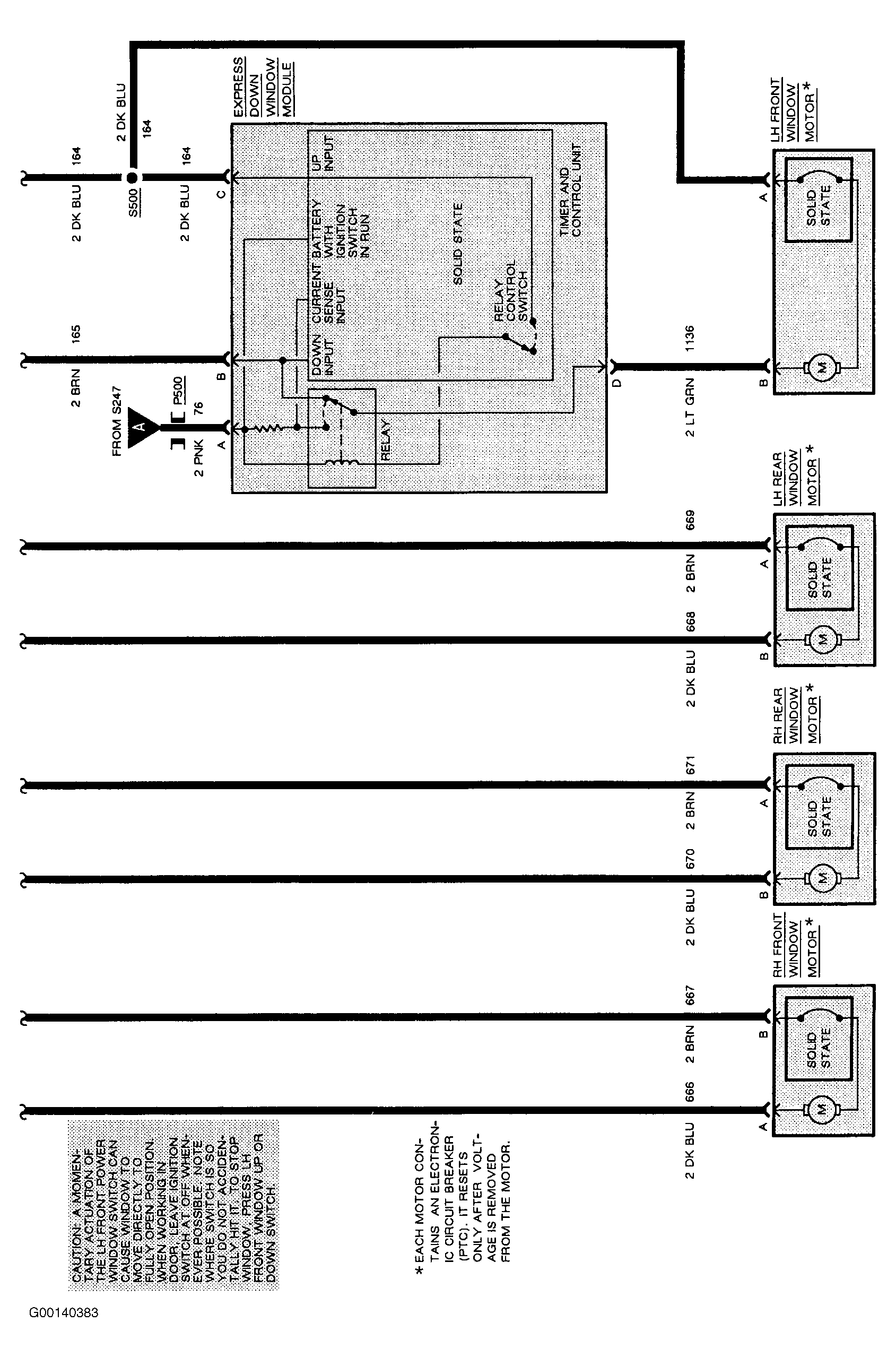

Fig 2: Power Windows Wiring Diagram (2 Of 2)
G00140383Courtesy of GENERAL MOTORS CORP.
