Test D - Remote Keyless Entry Lock/Unlock Isolation Test
Test D - Remote Keyless Entry Lock/Unlock Isolation Test

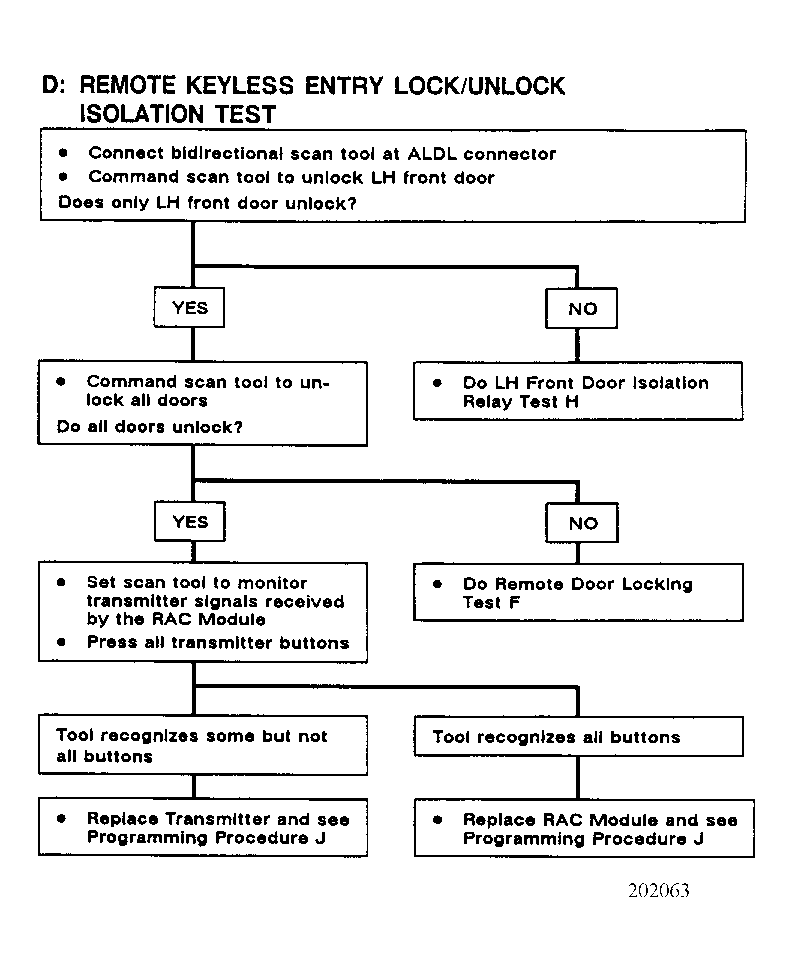

Fig 1: Test D - Remote Keyless Entry Lock/Unlock Isolation Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
