Removal and Installation

Remove negative battery cable. Remove instrument panel compartment door. Remove screws holding module and all electrical connectors. To install reverse removal procedures.

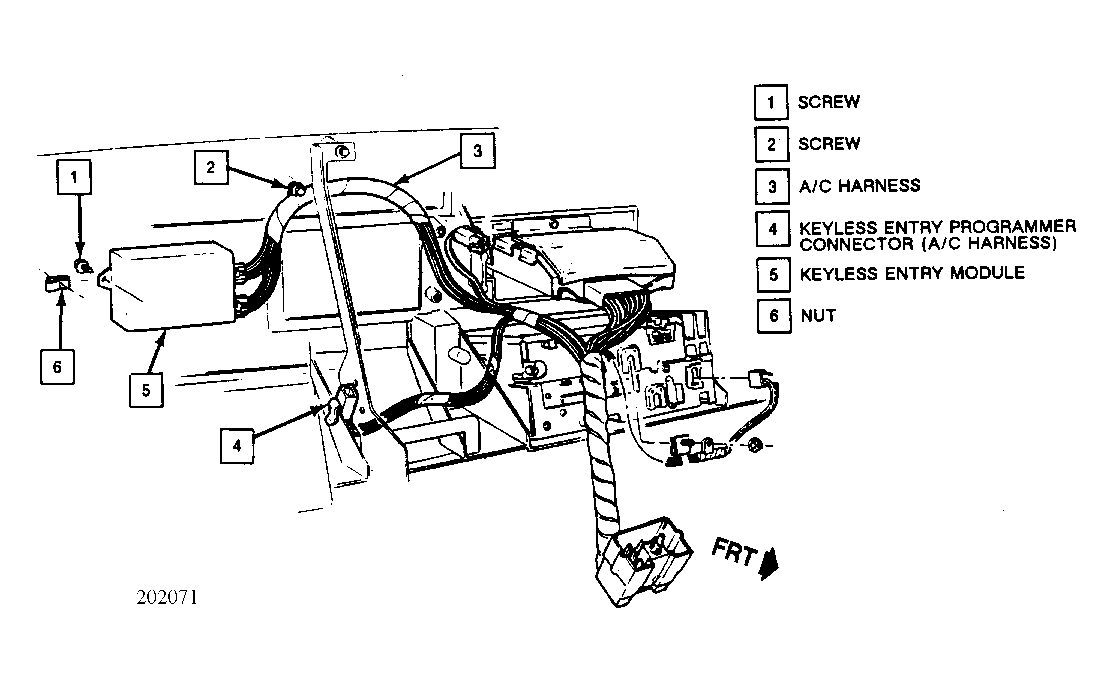

Fig 1: View of Keyless Entry Module
G202071Courtesy of GENERAL MOTORS CORP.
