Removal & Installation

Remove power steering pump (if necessary). See POWER STEERING PUMP  . Remove pressure line fitting from pump. See Fig 1 . Remove "O" ring, flow control valve assembly and flow control spring. To install, reverse removal procedure. Tighten pressure line fitting to specification. See TORQUE SPECIFICATIONS  table at end of article.

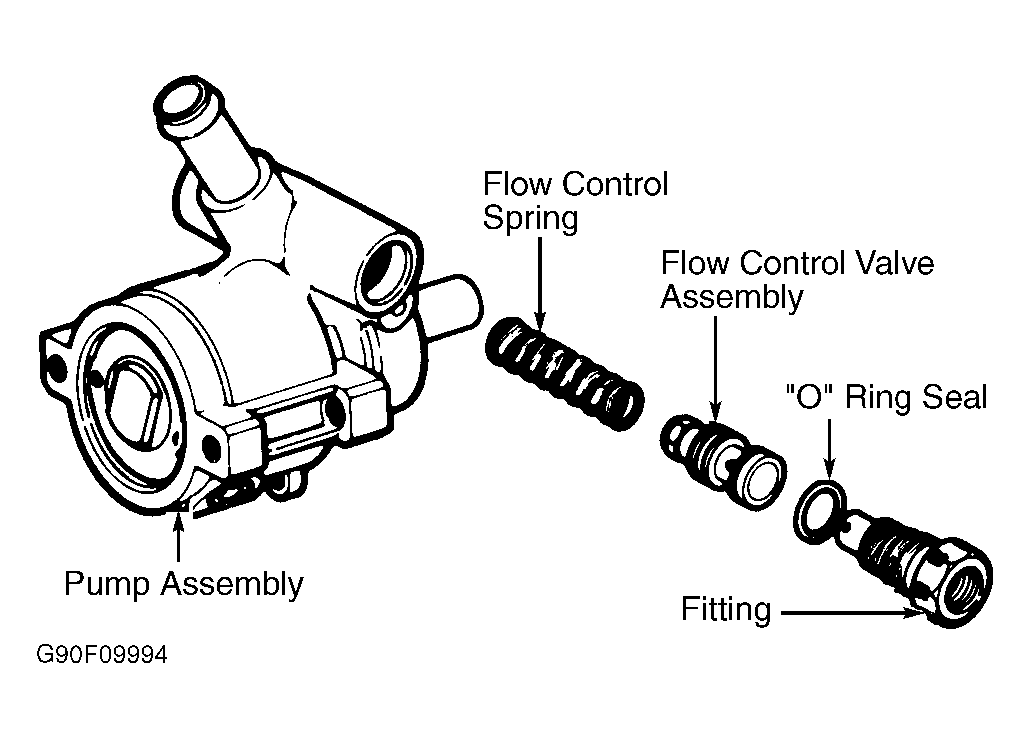

Fig 1: Exploded View of Flow Control Valve Assembly

Courtesy of GENERAL MOTORS CORP.
