Home › Oldsmobile › 1992 › Ninety-Eight Regency › Repair and Diagnosis › Steering › Power Steering › Steering System - Variable › Wiring Diagram

Steering System - Variable: Wiring Diagram

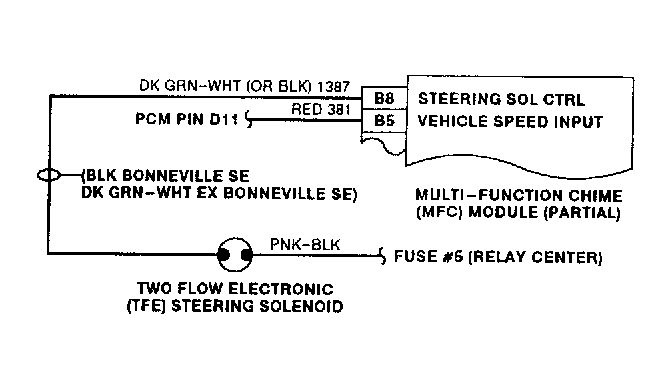

Fig 1: Variable Effort Steering (VES) System Wiring Diagram
G92D05594
