Test C: Module Unlock Test

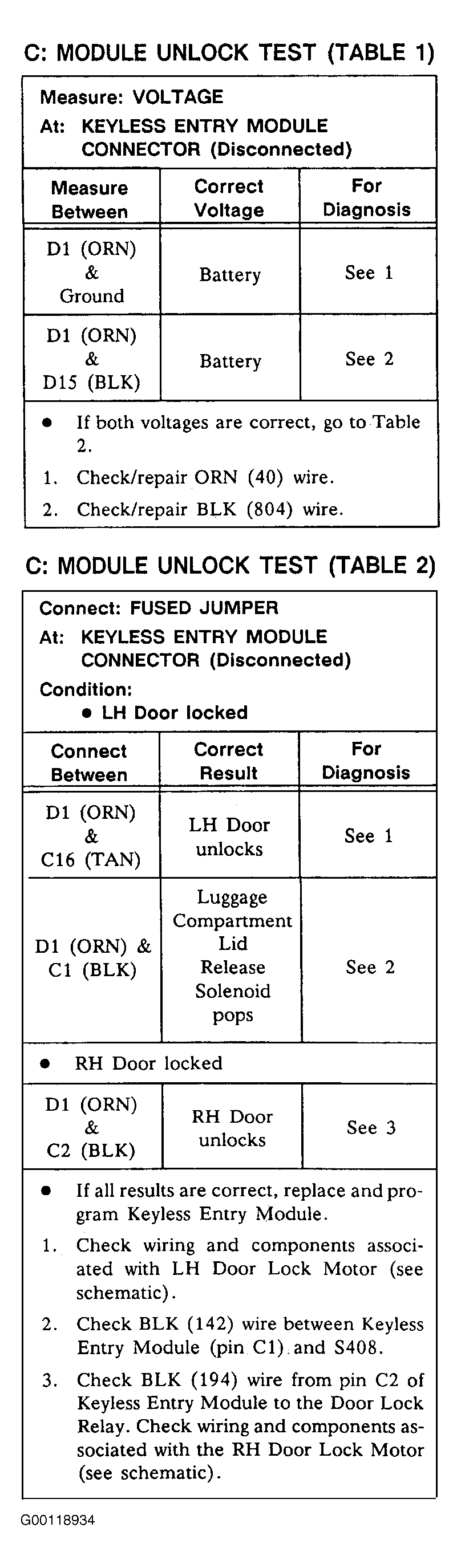

Fig 1: Test C: Module Unlock
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
