Wiring Diagrams

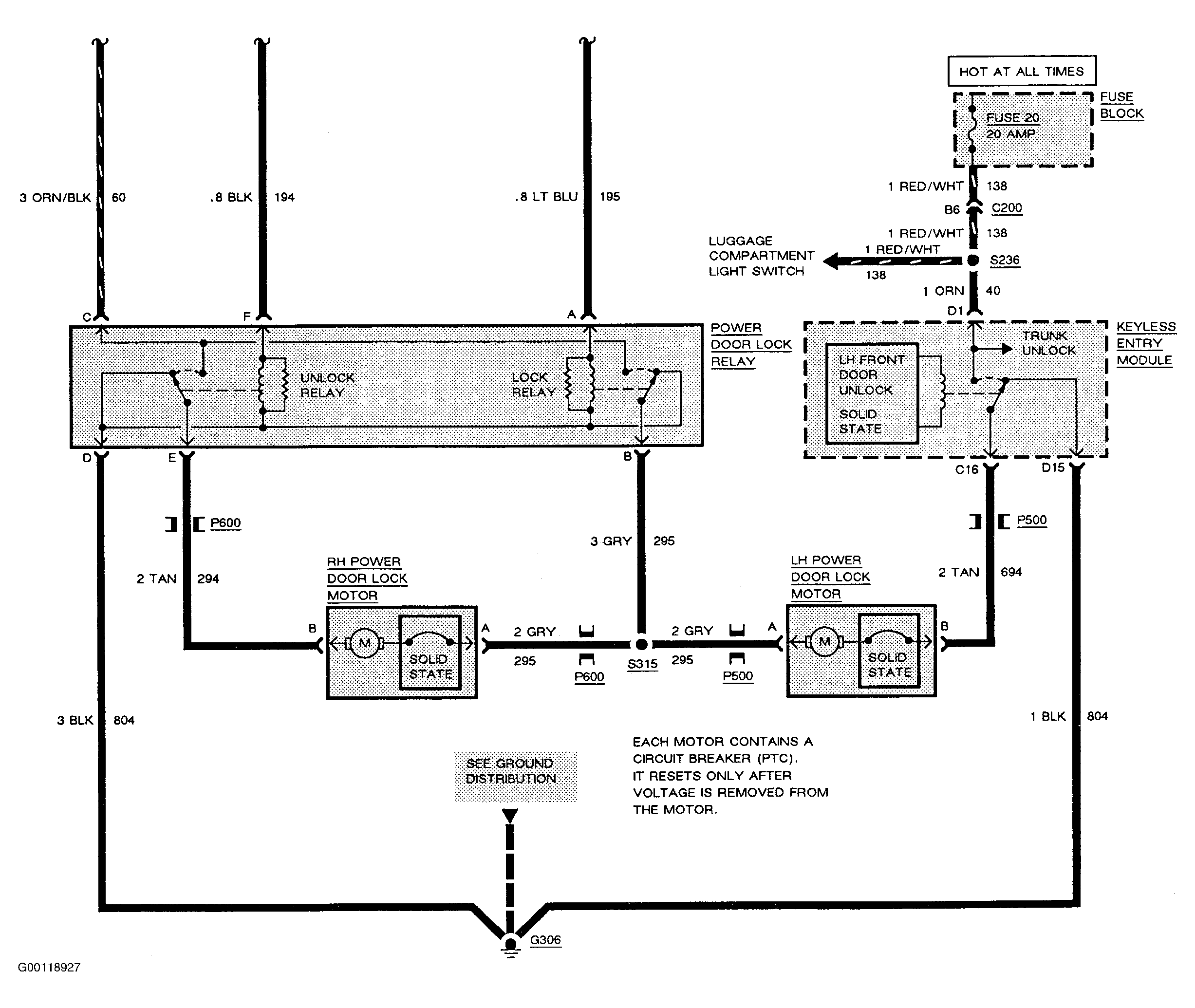

Fig 1: Remote Keyless Entry System Circuit Diagram (1 Of 5)

Courtesy of GENERAL MOTORS CORP.

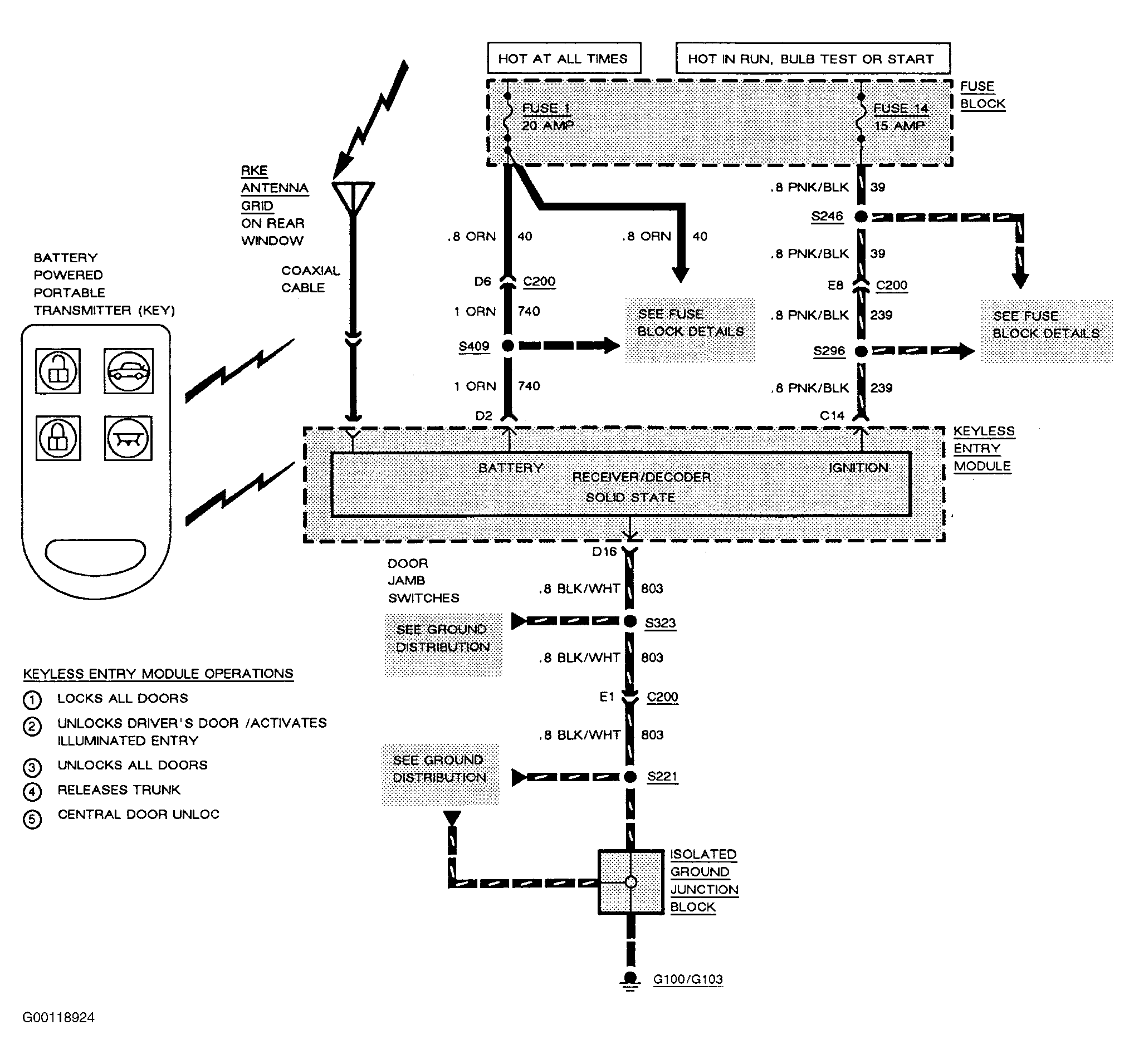

Fig 2: Remote Keyless Entry System Circuit Diagram (2 Of 5)

Courtesy of GENERAL MOTORS CORP.

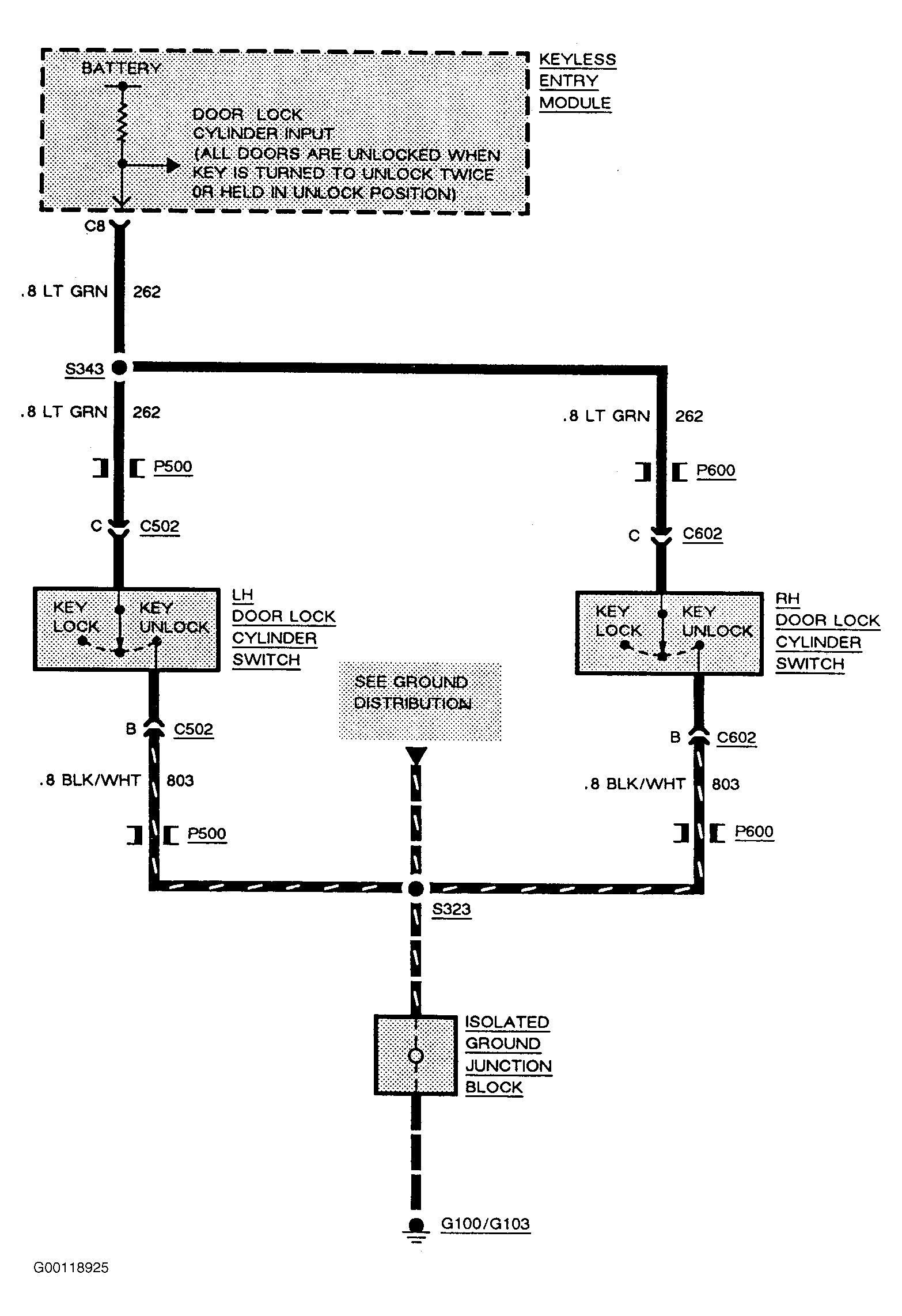

Fig 3: Remote Keyless Entry System Circuit Diagram (3 Of 5)

Courtesy of GENERAL MOTORS CORP.

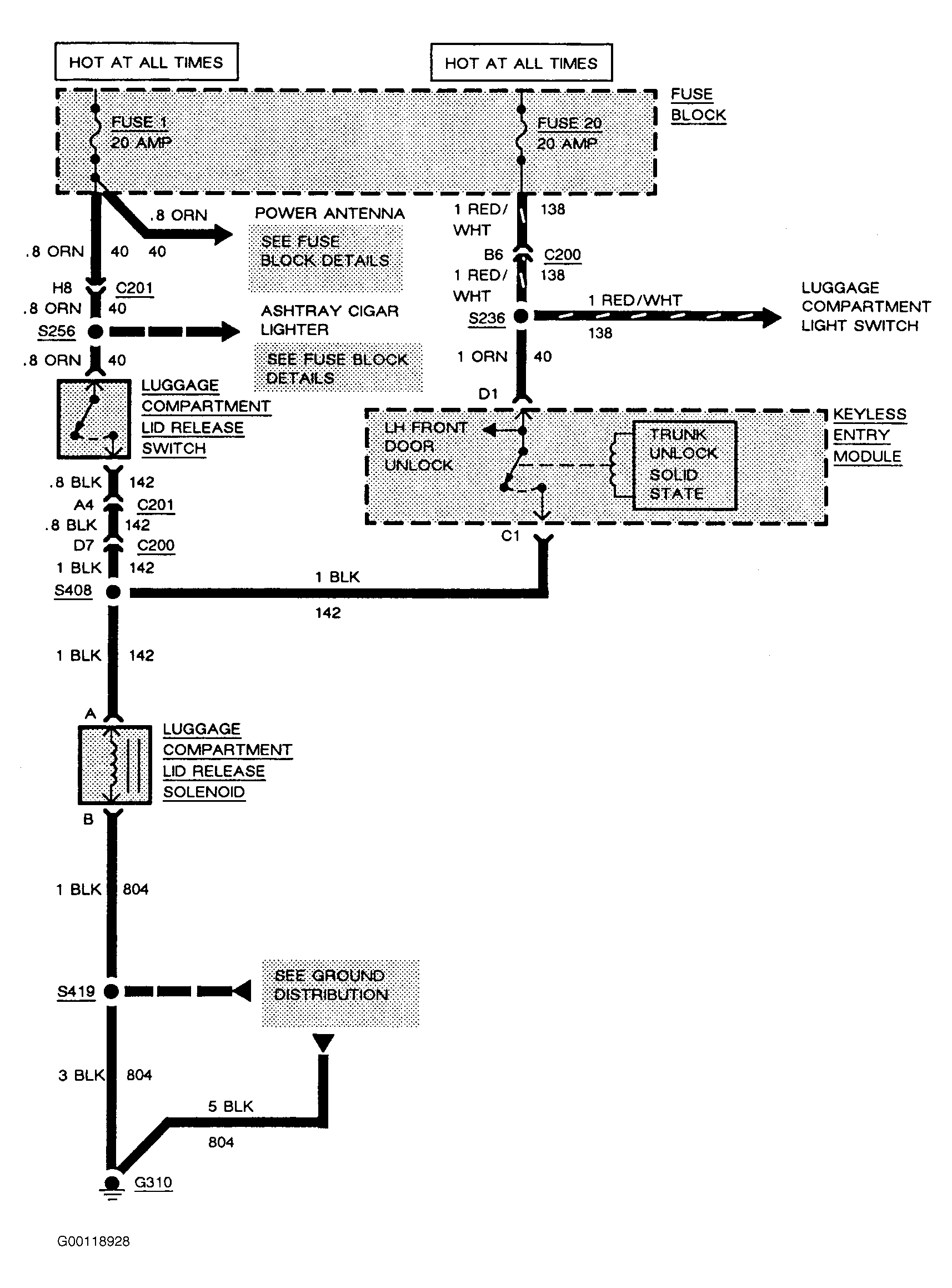

Fig 4: Remote Keyless Entry System Circuit Diagram (4 Of 5)

Courtesy of GENERAL MOTORS CORP.

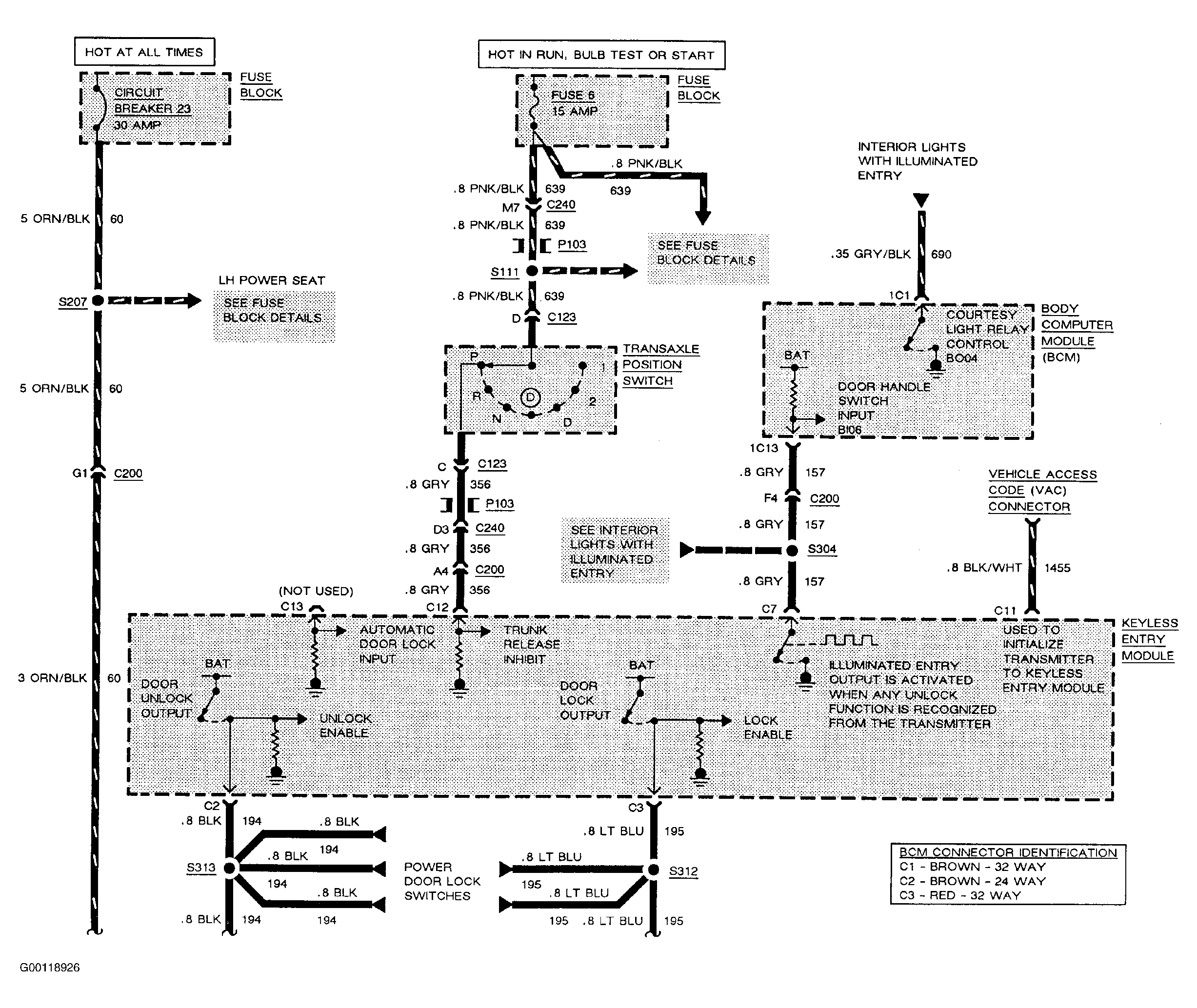

Fig 5: Remote Keyless Entry System Circuit Diagram (5 Of 5)

Courtesy of GENERAL MOTORS CORP.
