Headlamp Door Module: Installation

1. Install headlamp door module. See Fig 1 .
2. Install two electrical connectors from modules.
3. Install windshield washer fluid bottle.
4. Install relay center.
5. Install Left front end sheet metal diagonal brace.

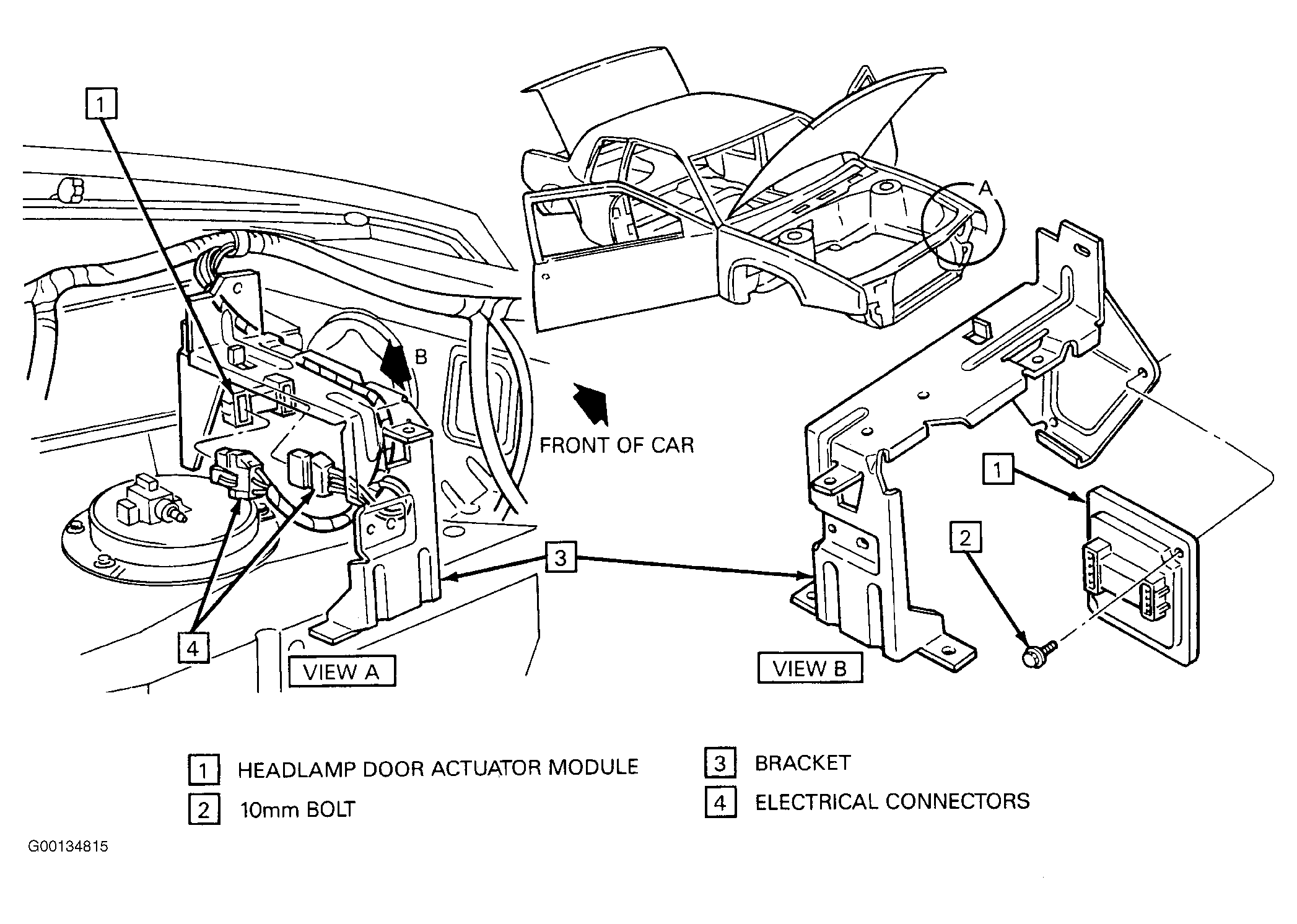

Fig 1: Removing & Installing Headlamp Door Actuator

Courtesy of GENERAL MOTORS CORP.
