Inside Handle Bezel: Installation

1. Install electrical connectors.
2. Position bezel (1) over inside handle and engage door lock switch (2) to slider (5). See Fig 1 .
3. Move lock switch back and forth making sure of engagement.
4. Position cover (3) and secure with screw (4).

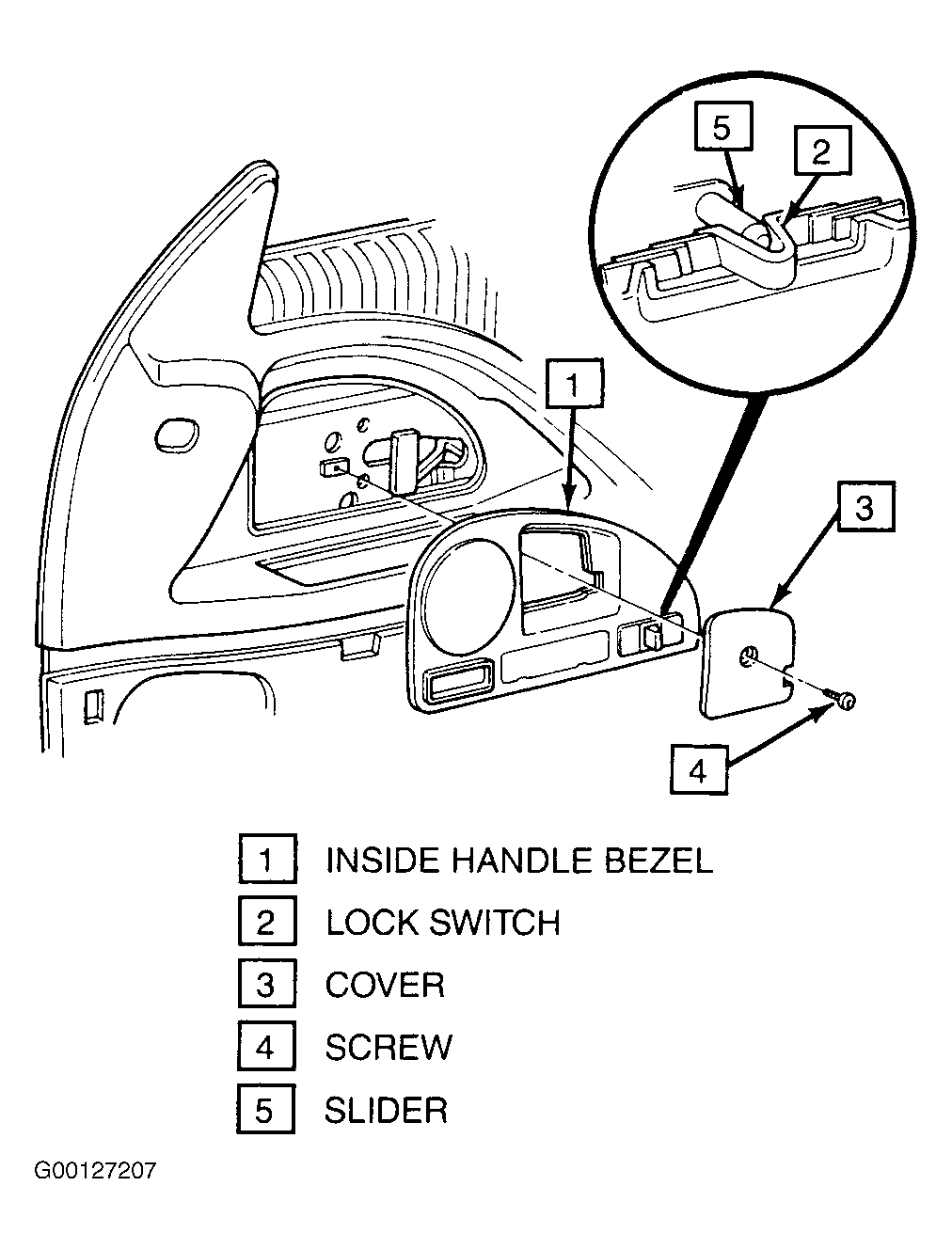

Fig 1: Identifying Inside Handle Bezel Assembly

Courtesy of GENERAL MOTORS CORP.
