Test D: Window Switch Test

For testing procedure, see Fig 1 .

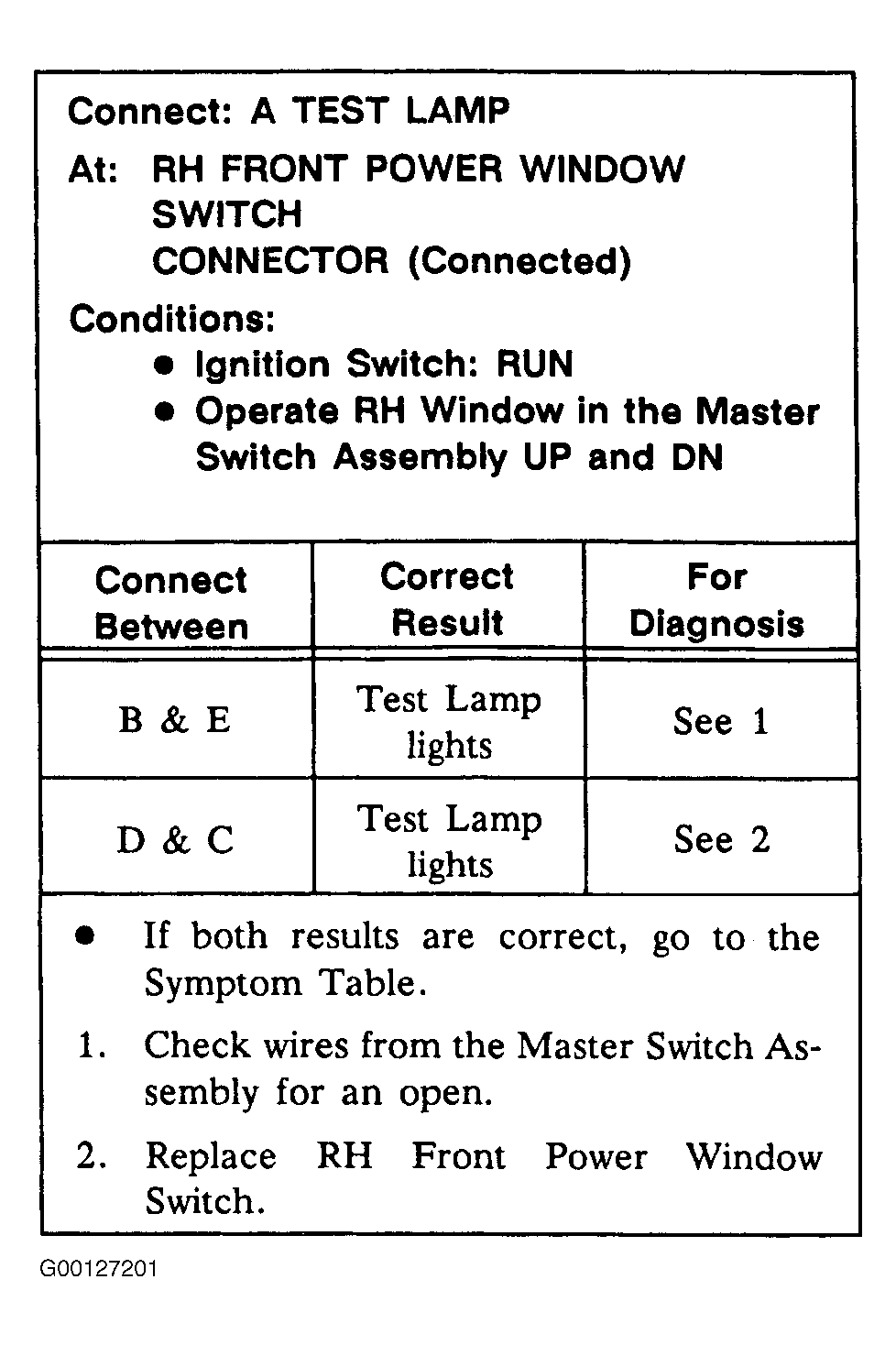

Fig 1: Test D: Window Switch Test
G00127201Courtesy of GENERAL MOTORS CORP.
