Control Valve Assembly: Reassembly

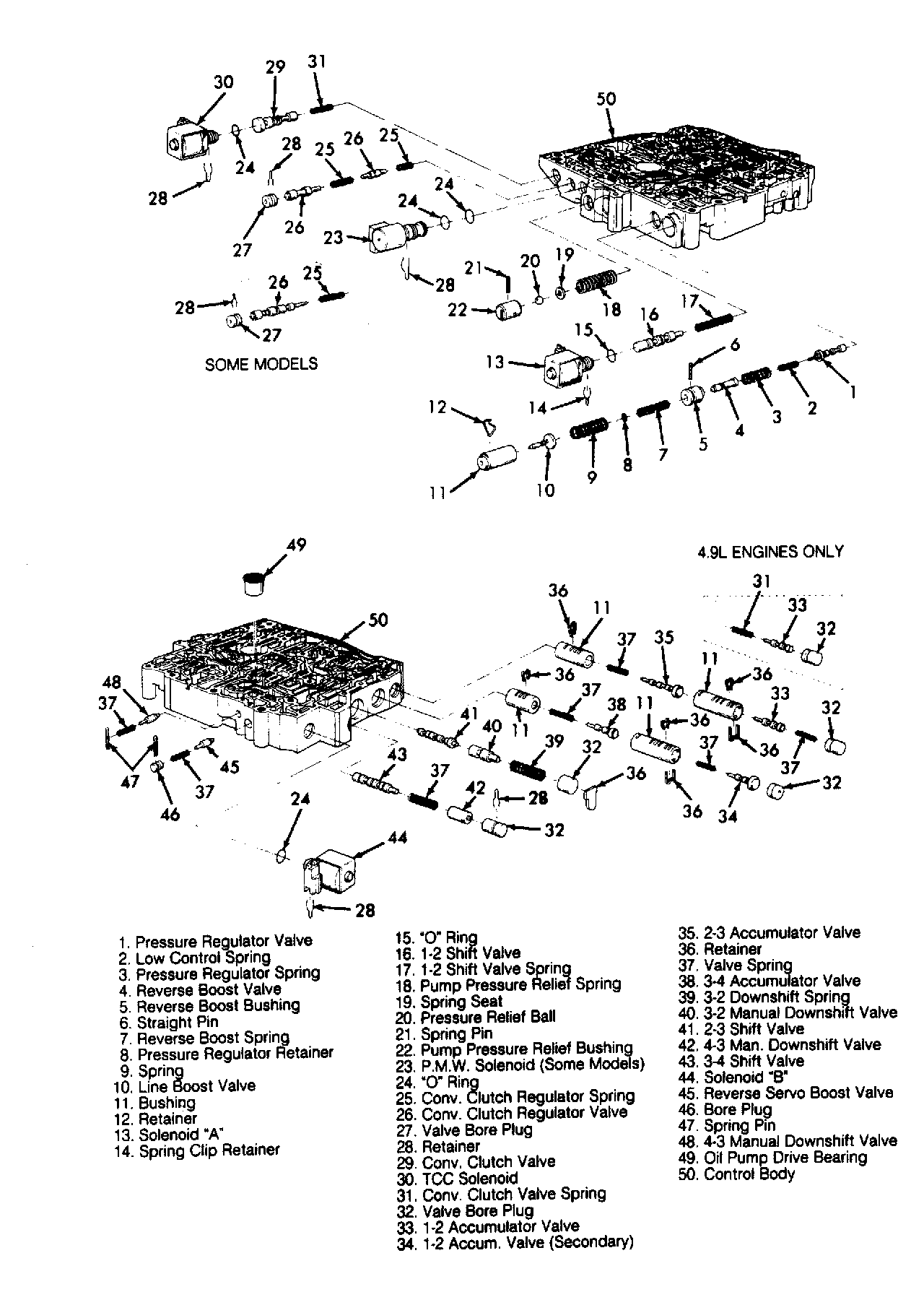

Install NEW "O" rings on all solenoids. Install bushings, springs, valves and shift solenoids exactly as shown by noting position of valve lands and bushing passages. See Figure .
