Transmission Assembly Views

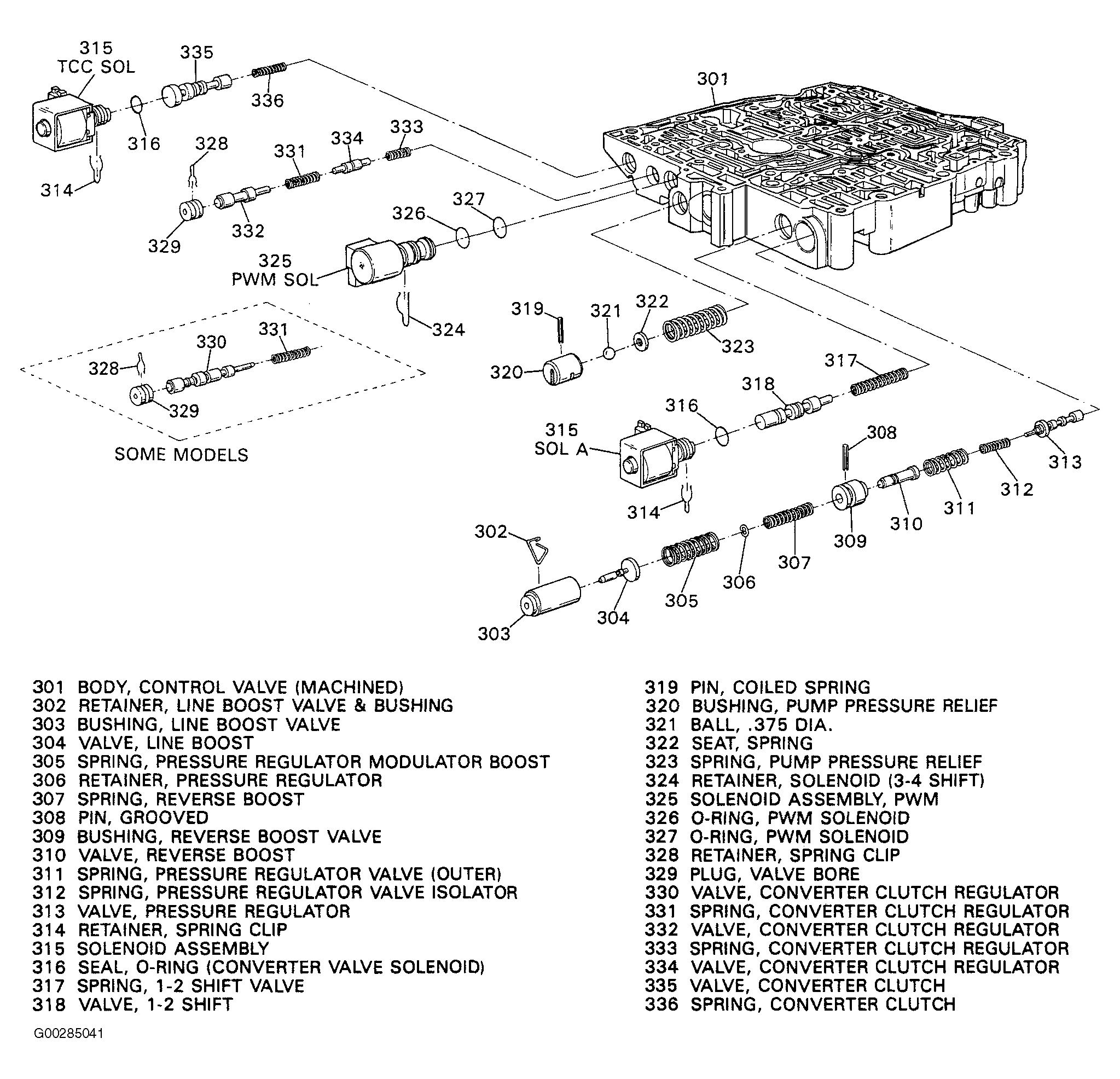

Fig 1: Exploded View Of Control Valve Assembly (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

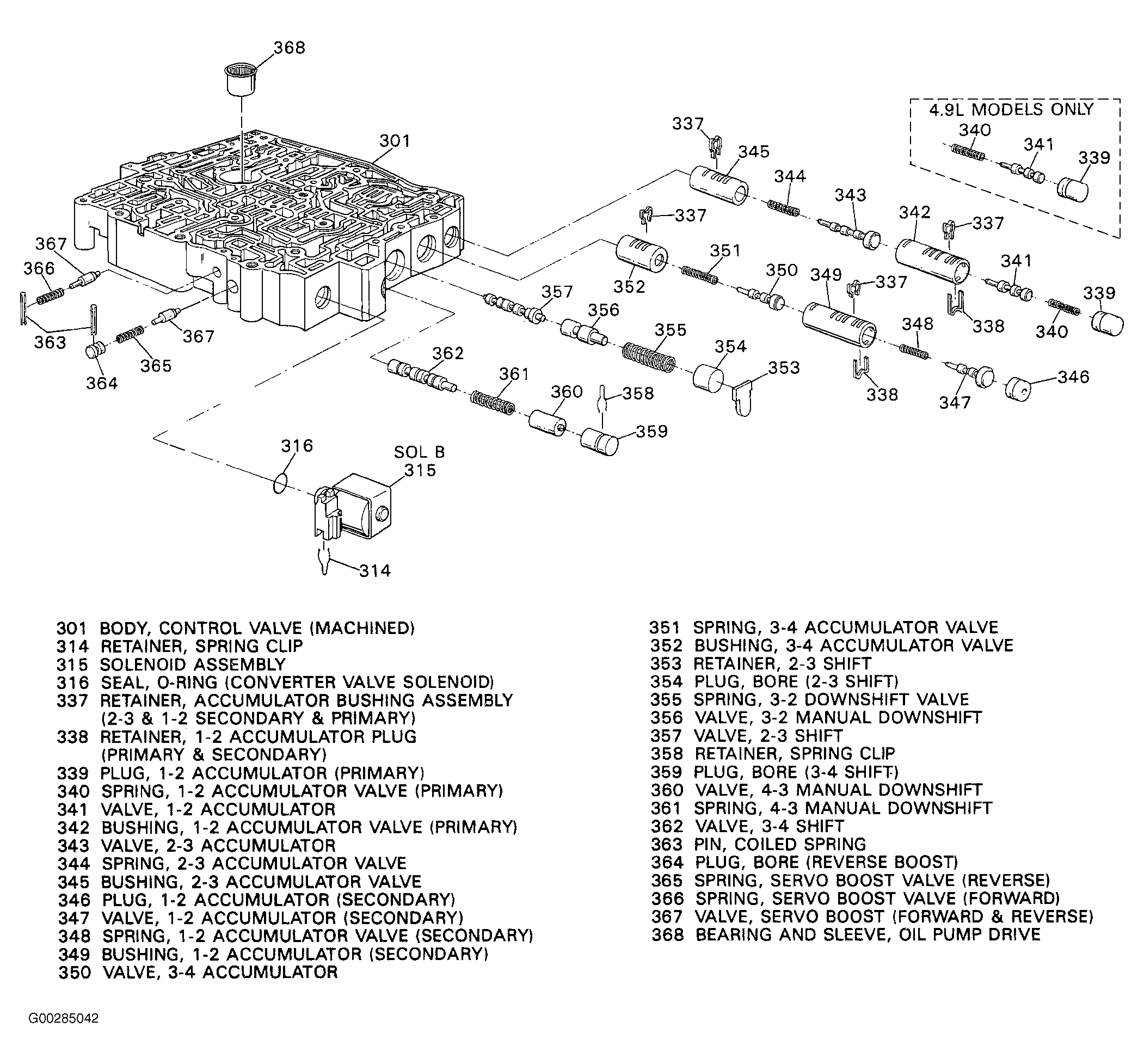

Fig 2: Exploded View Of Control Valve Assembly (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

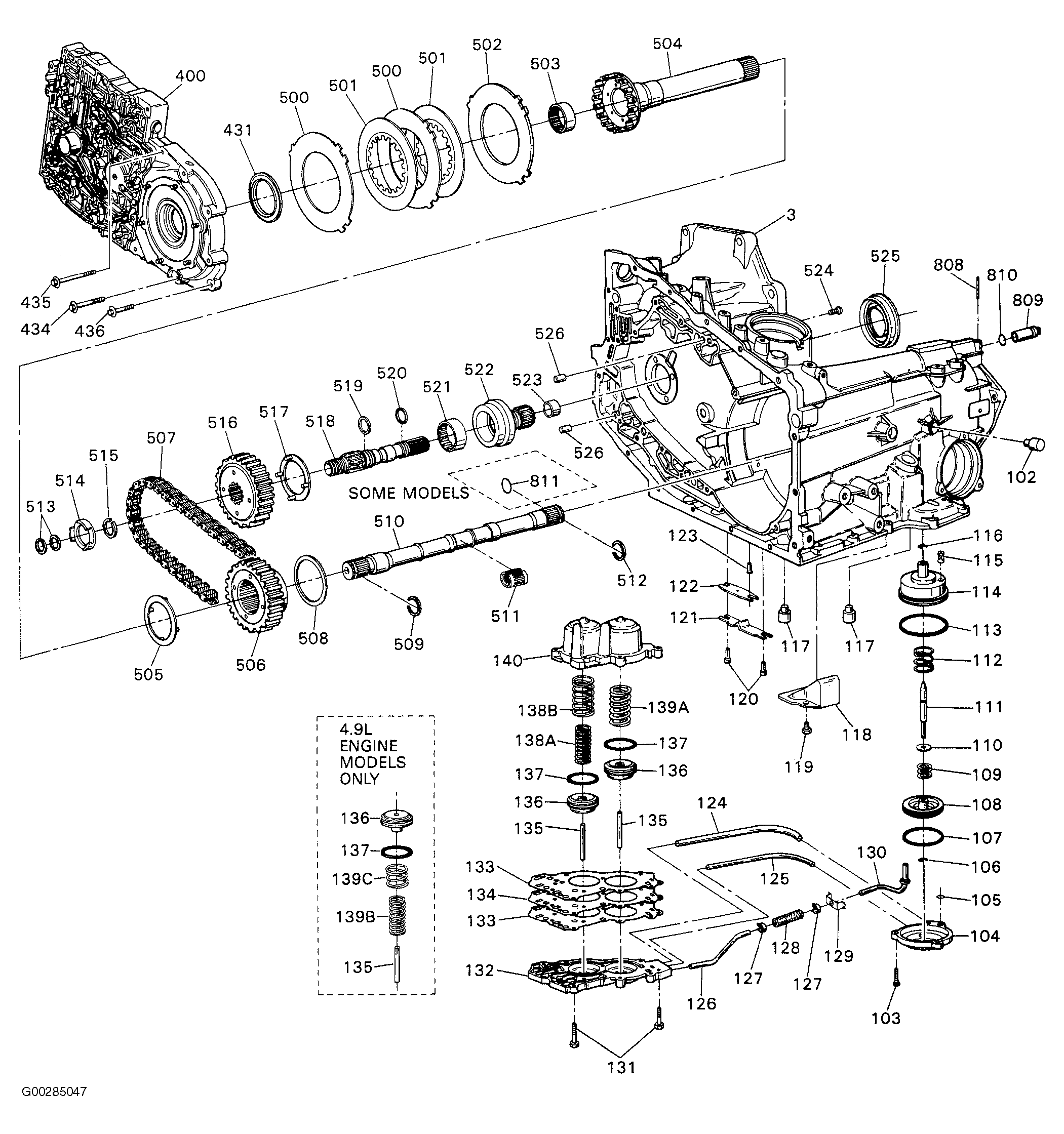

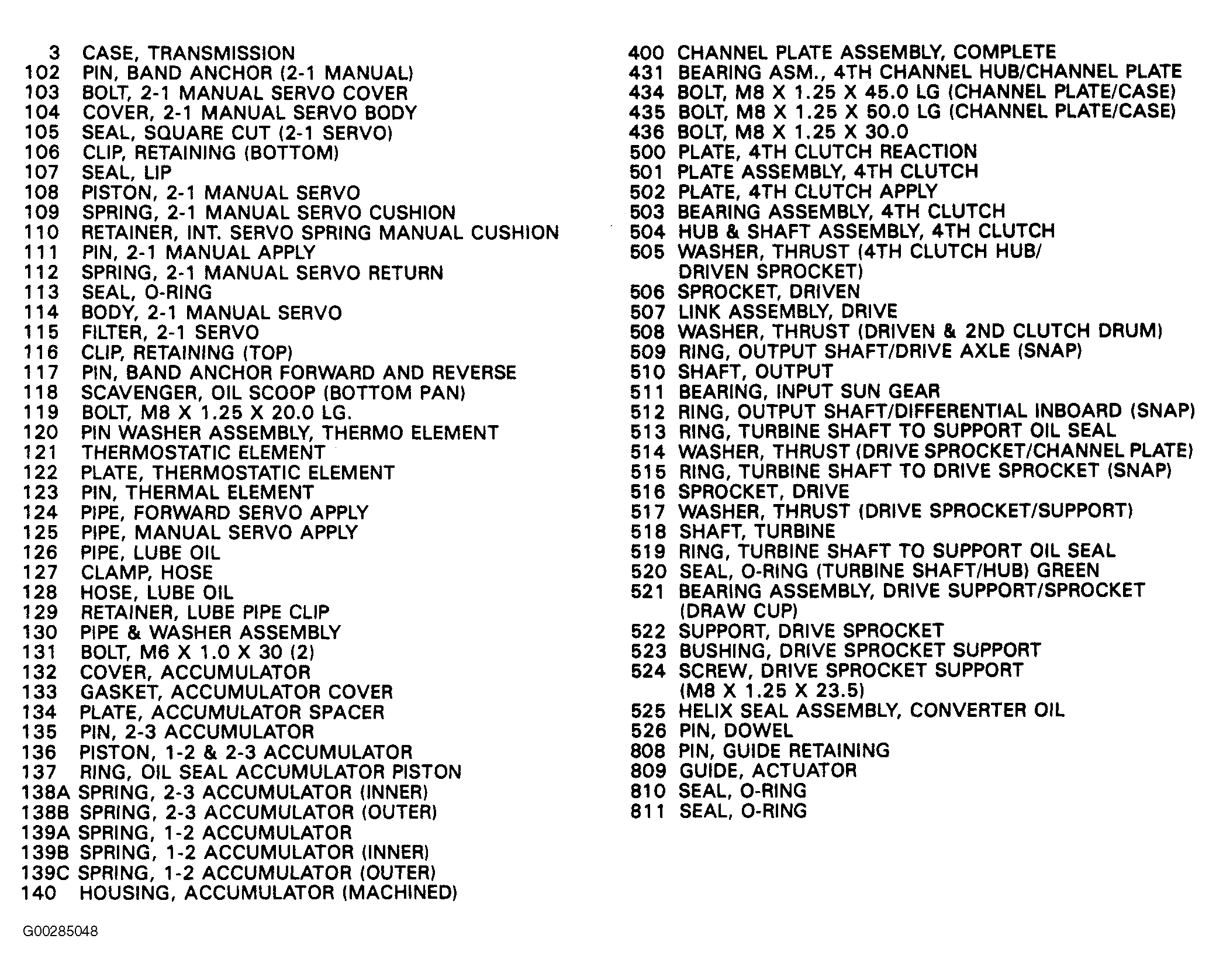

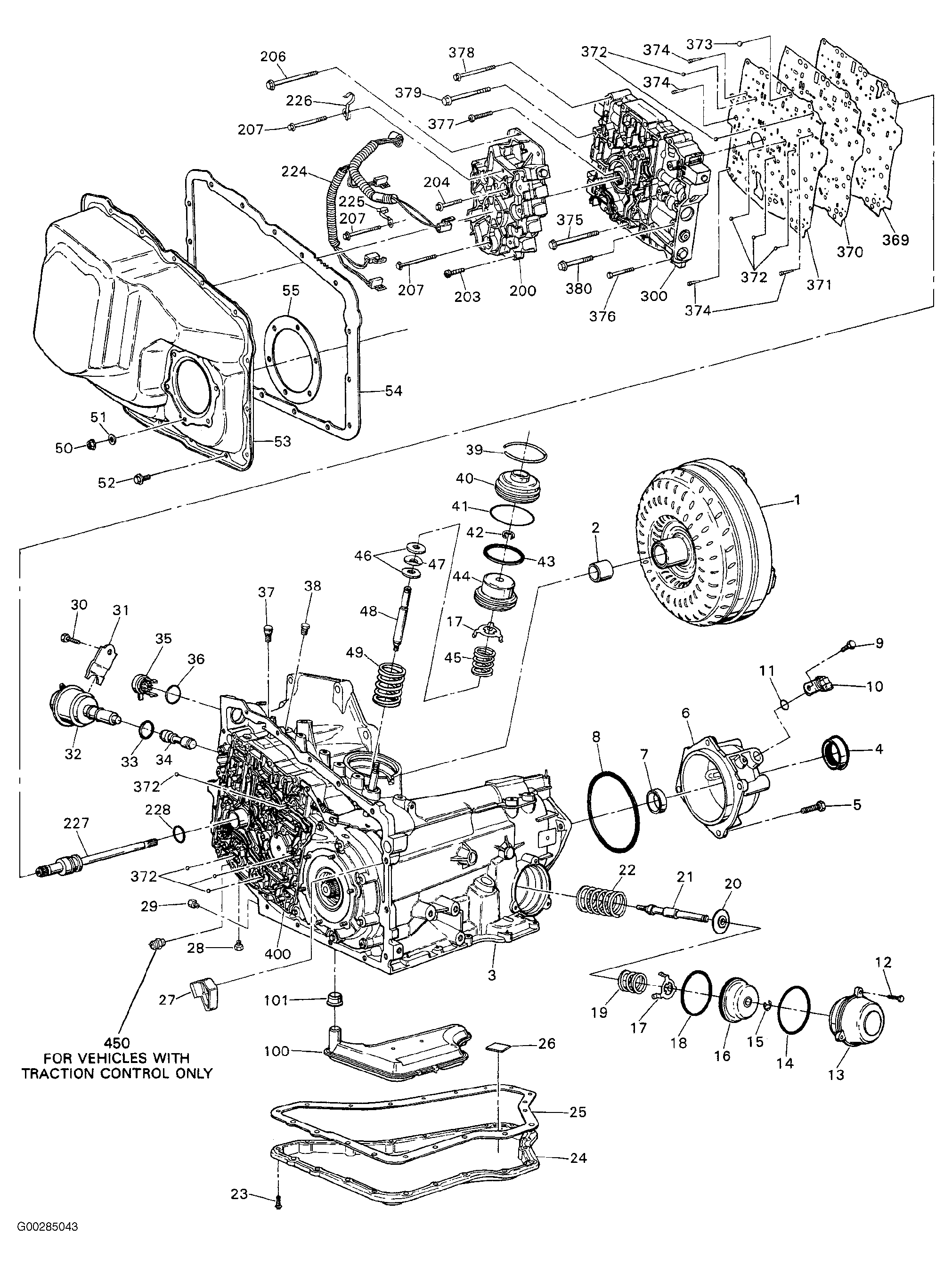

Fig 3: Exploded View Of Case & Associated Parts (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

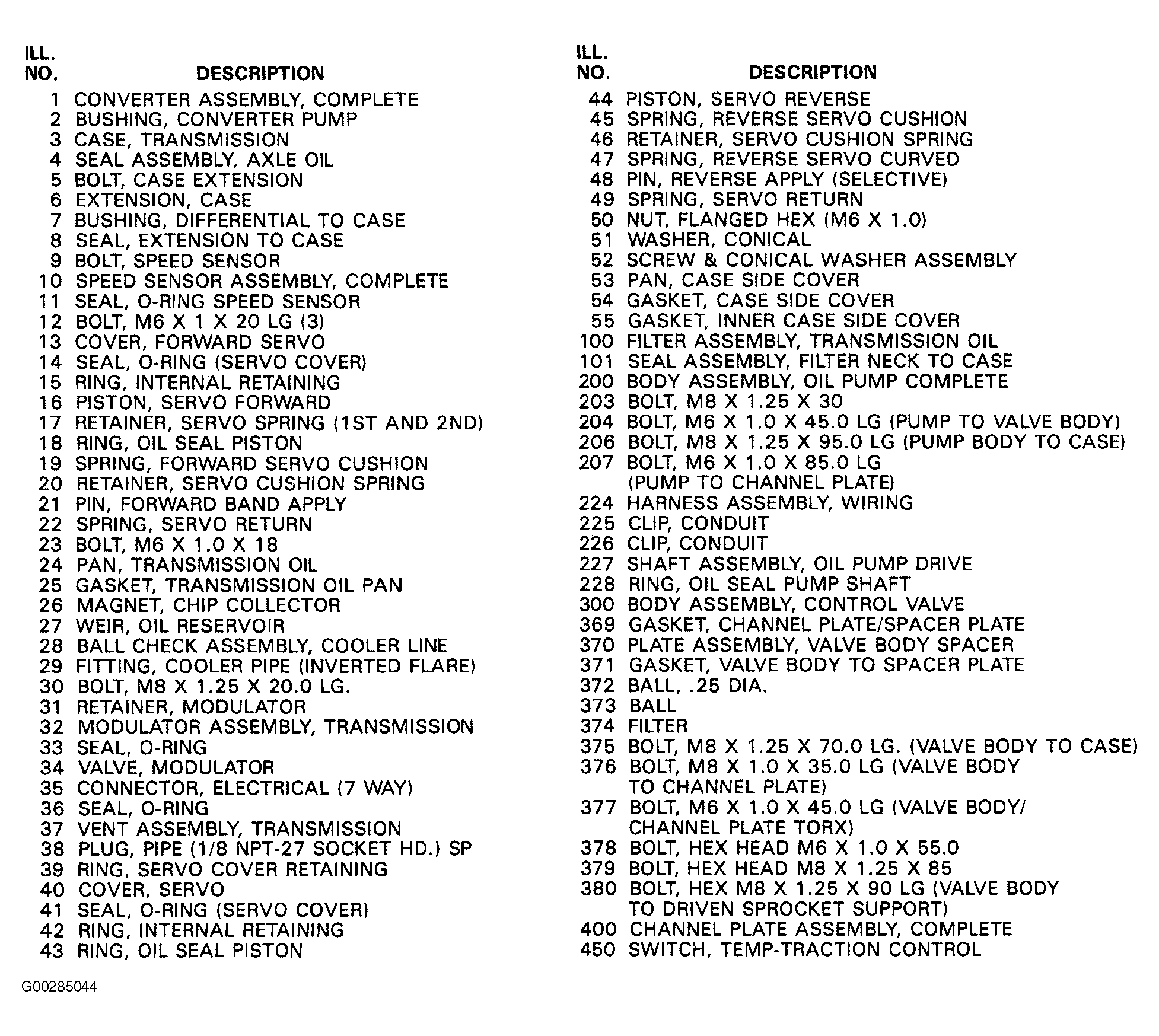

Fig 4: Exploded View Of Case & Associated Parts (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

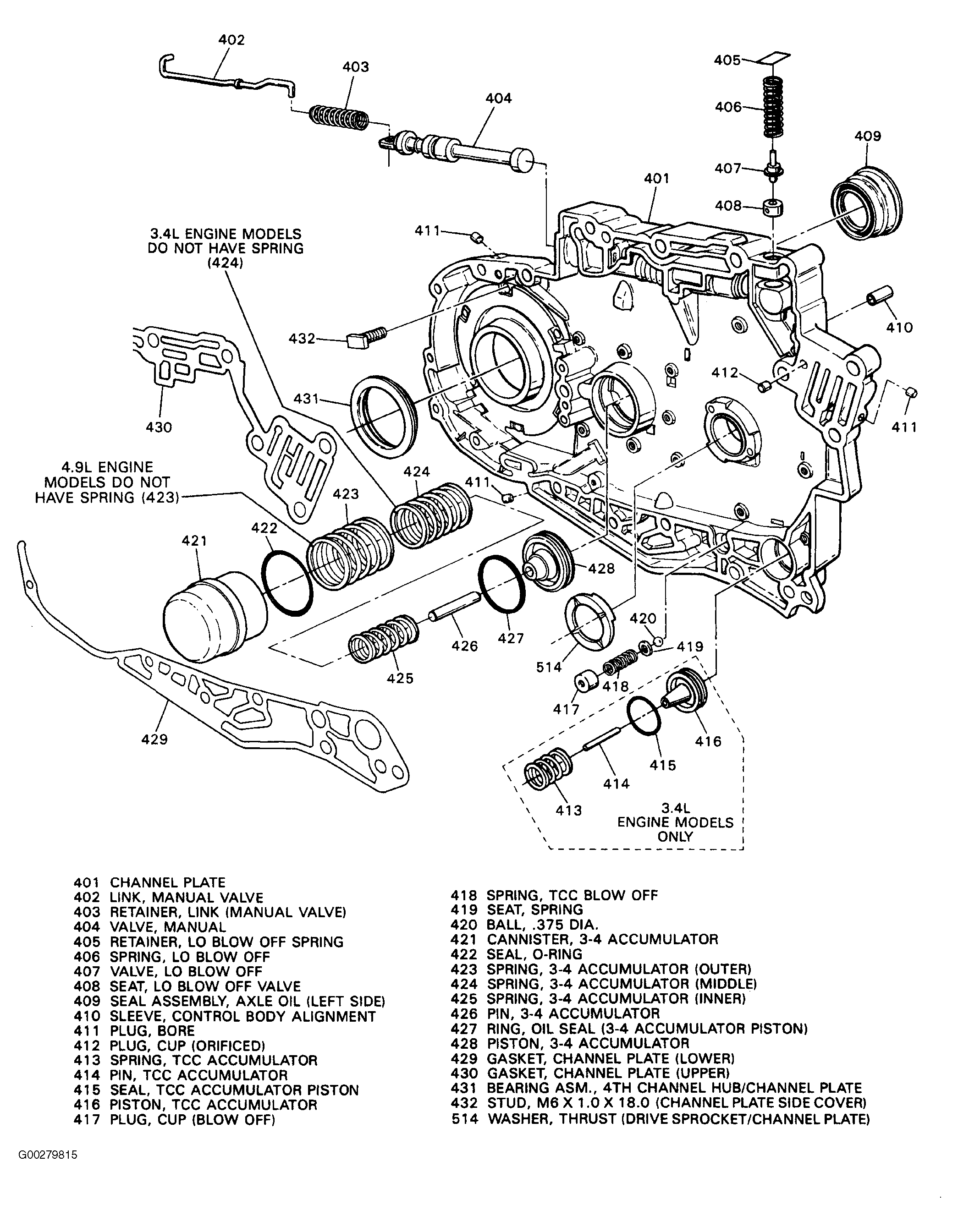

Fig 5: Exploded View Of Channel Plate Assembly

Courtesy of GENERAL MOTORS CORP.

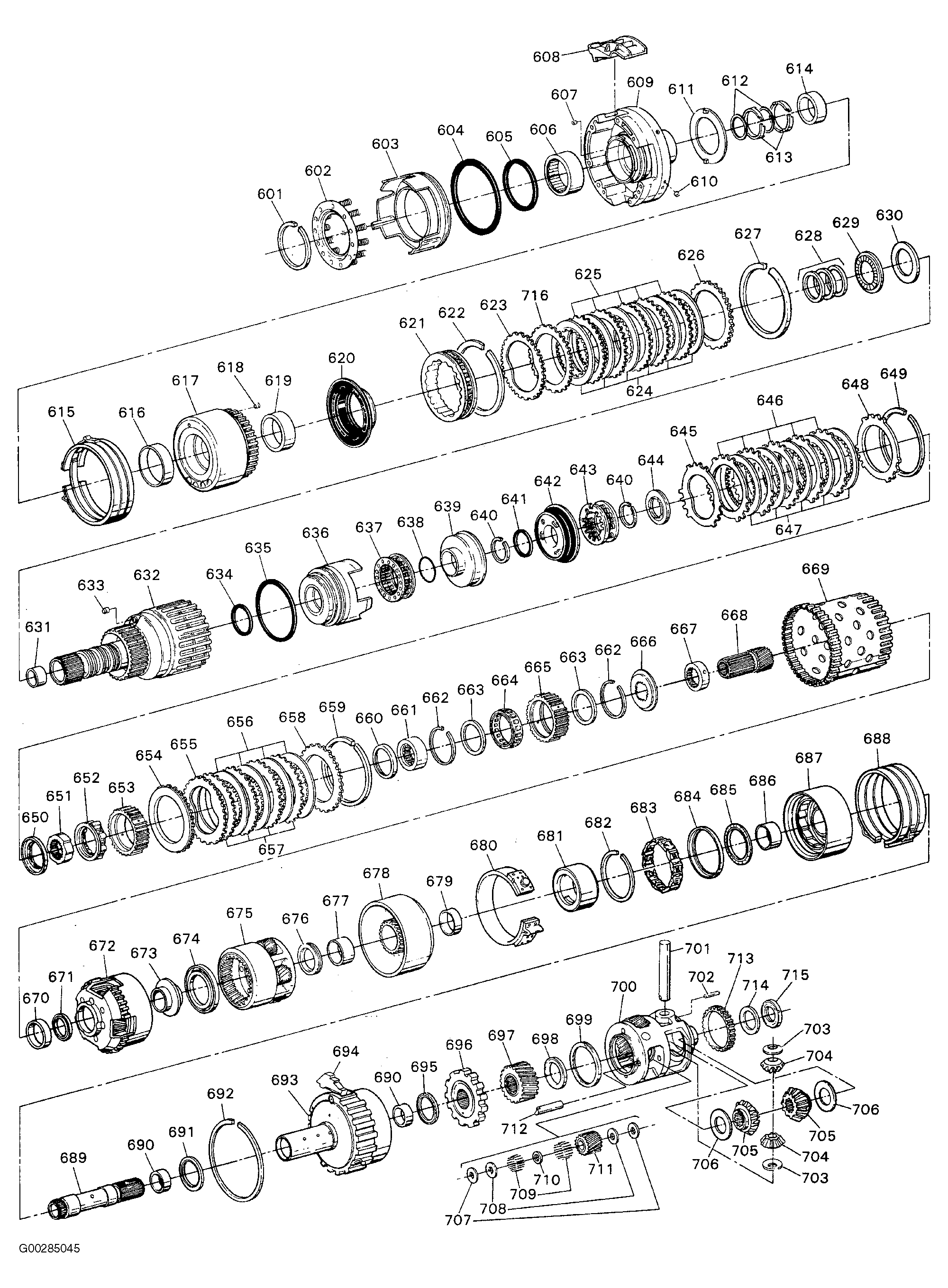

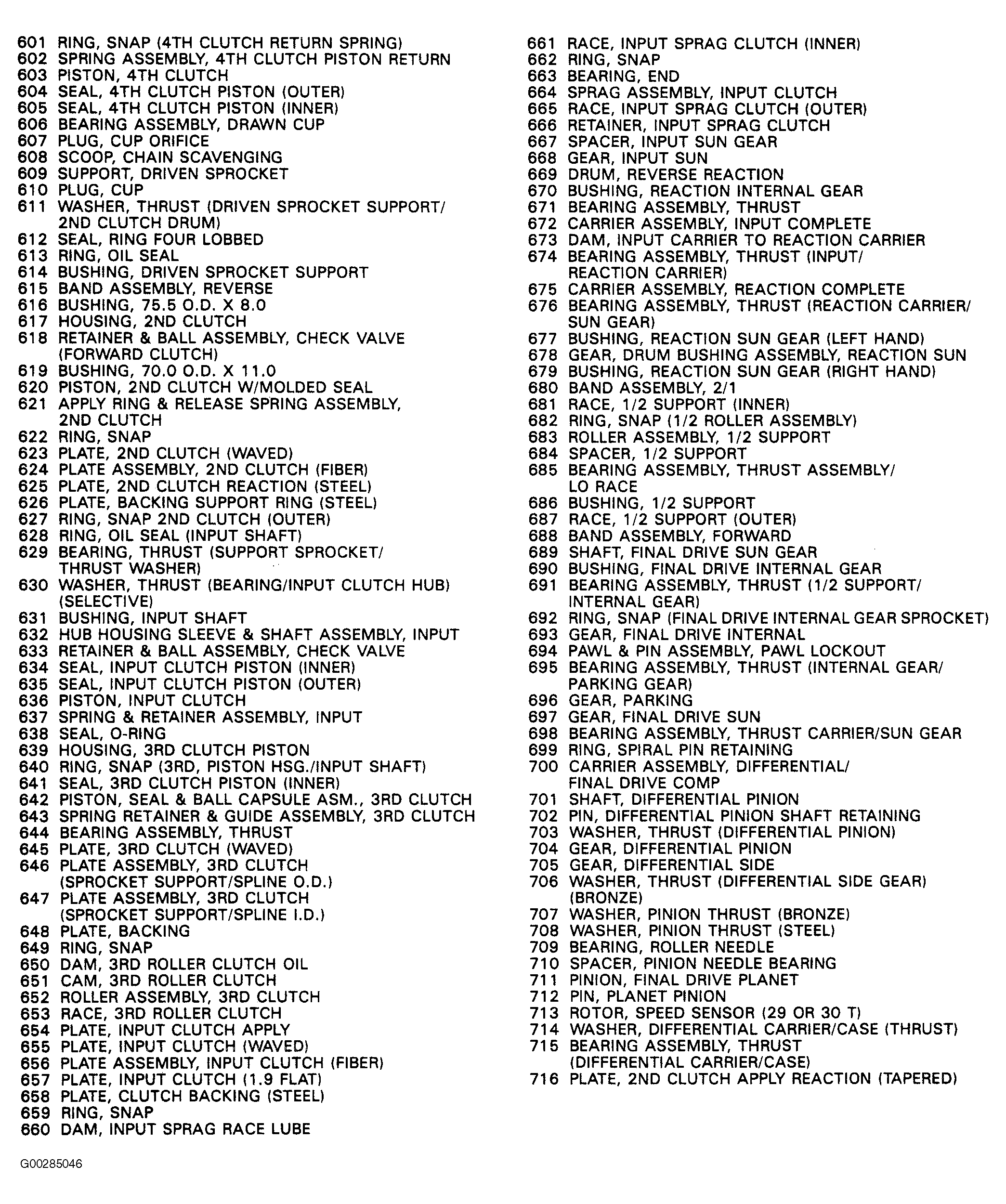

Fig 6: Exploded View Of Transaxle Internal Components (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Exploded View Of Transaxle Internal Components (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 8: Exploded View Of Drive Link Assembly, 4th Clutch, Accumulator Assemblies & Case Seals (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Exploded View Of Drive Link Assembly, 4th Clutch, Accumulator Assemblies & Case Seals (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

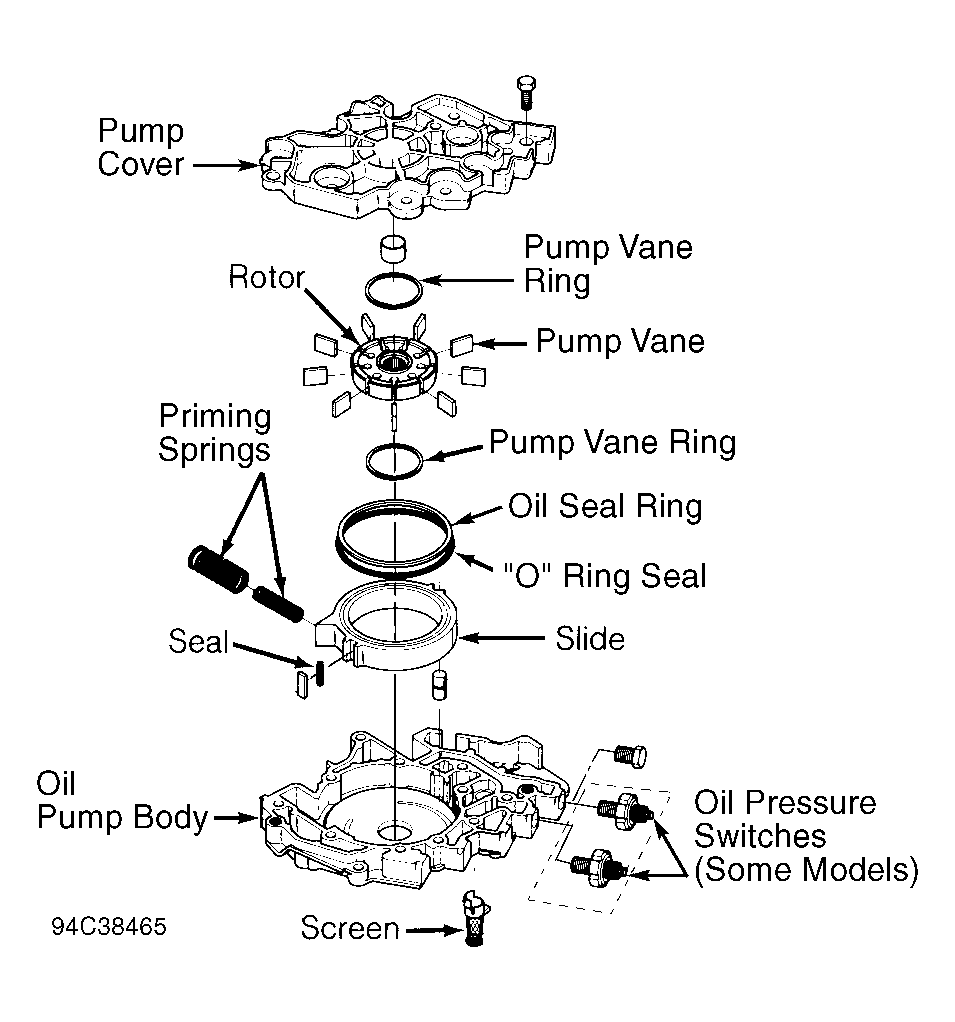

Fig 10: Exploded View Of Oil Pump Assembly

Courtesy of GENERAL MOTORS CORP.

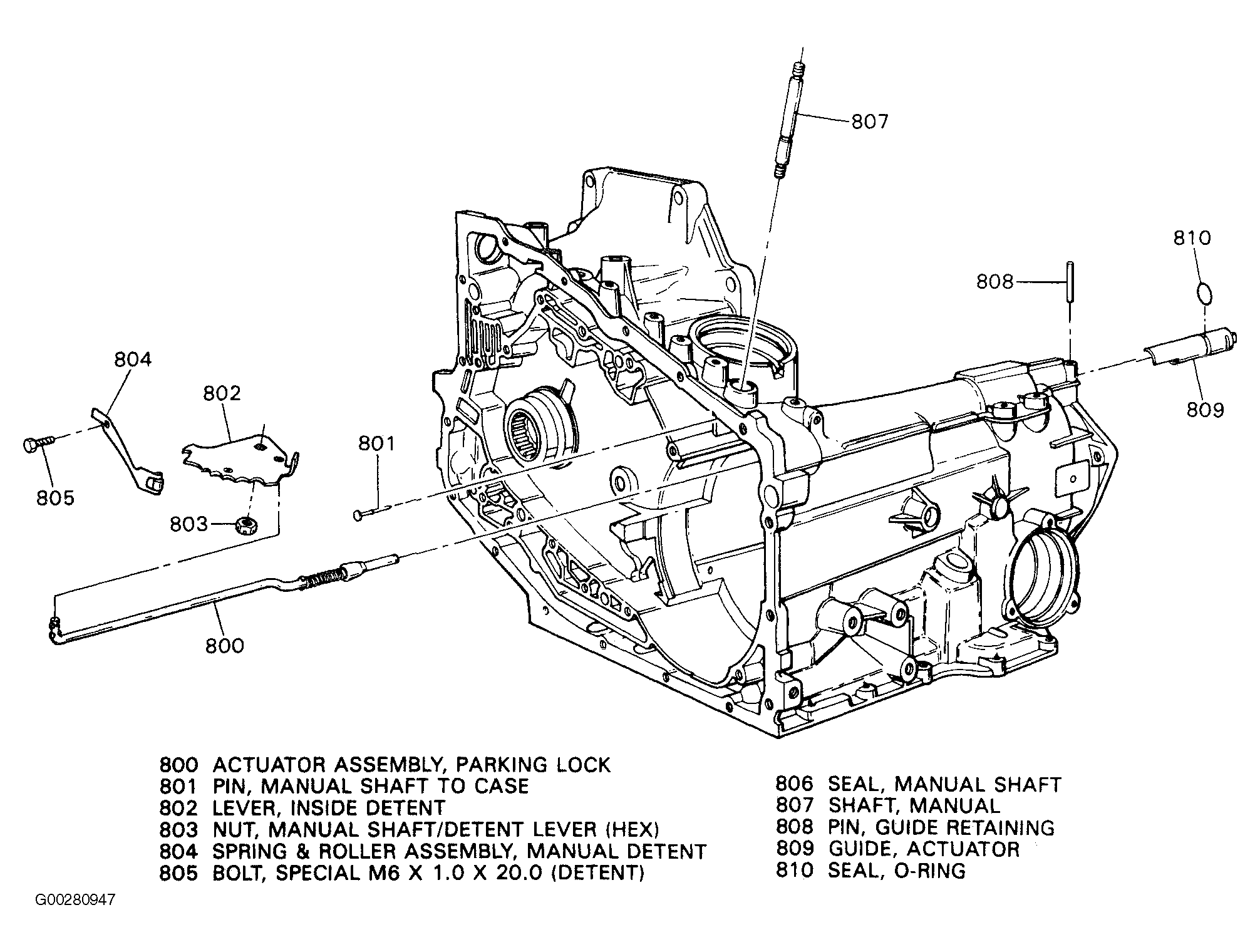

Fig 11: Exploded View Of Manual Shaft & Park Components

Courtesy of GENERAL MOTORS CORP.

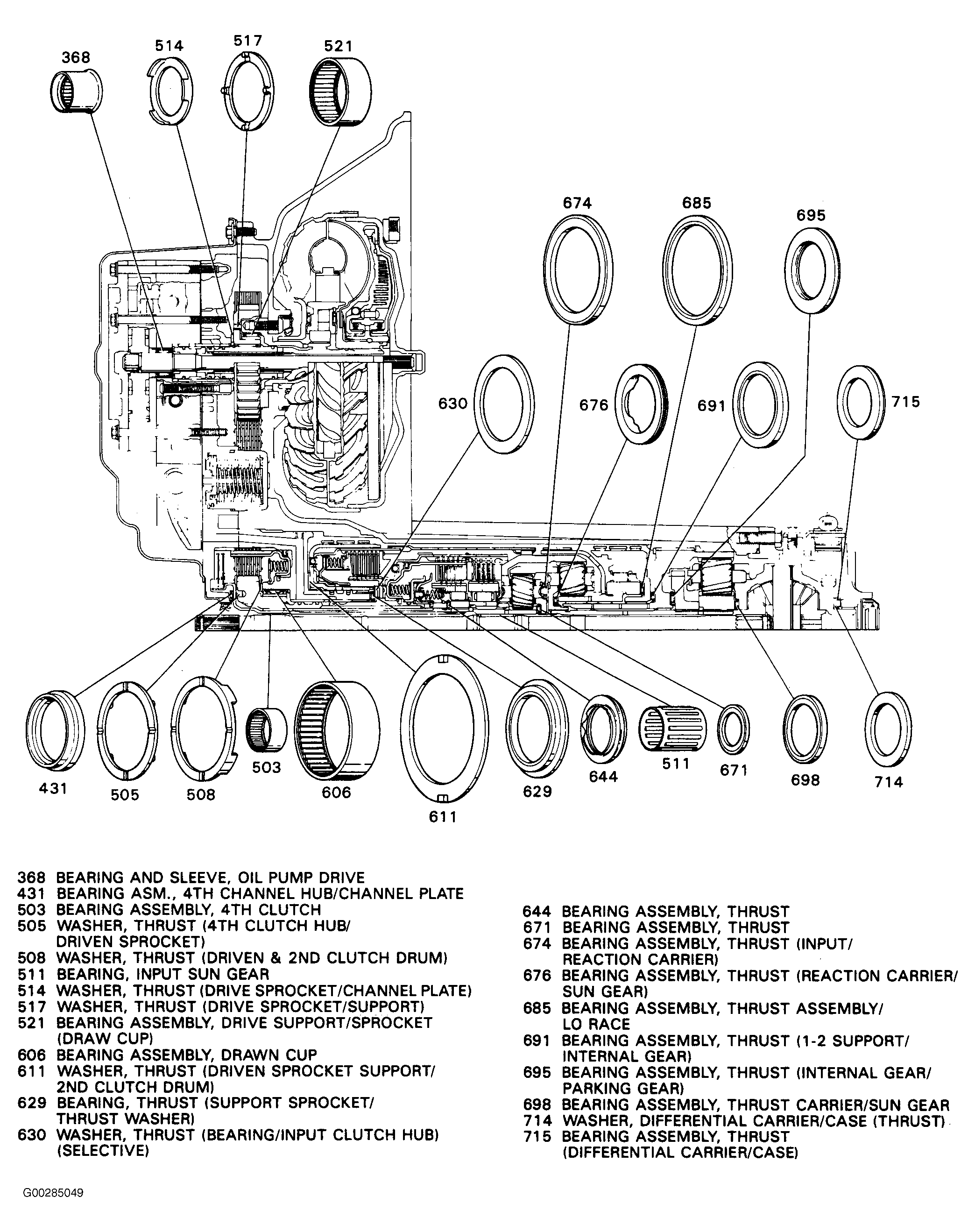

Fig 12: Thrust Washers & Bearing Locations

Courtesy of GENERAL MOTORS CORP.

Fig 13: Lip Seal Locations

Courtesy of GENERAL MOTORS CORP.
