Test F: Power Door Locks Work Only From One Lock Switch

To perform this test, refer to illustration. See Fig 1 .

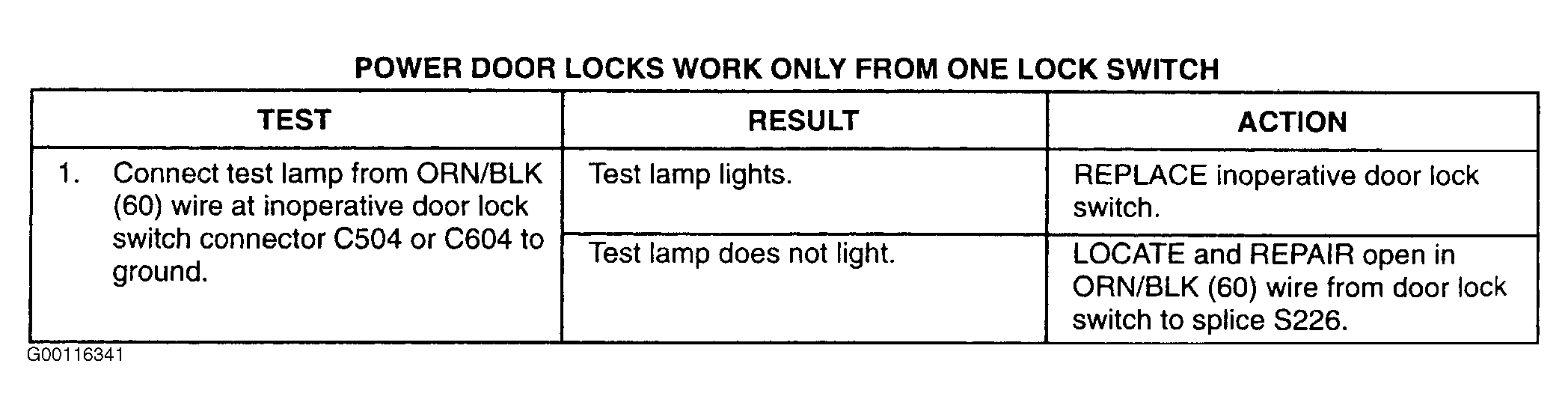

Fig 1: Testing Power Door Locks Work Only From One Lock Switch

Courtesy of GENERAL MOTORS CORP.
